Remove/Install Front Passenger Bench Seat - Ar91.10-D-1035A

Model 906 with code S23 (Co-driver's seat double seat)

Courtesy of MERCEDES-BENZ USA

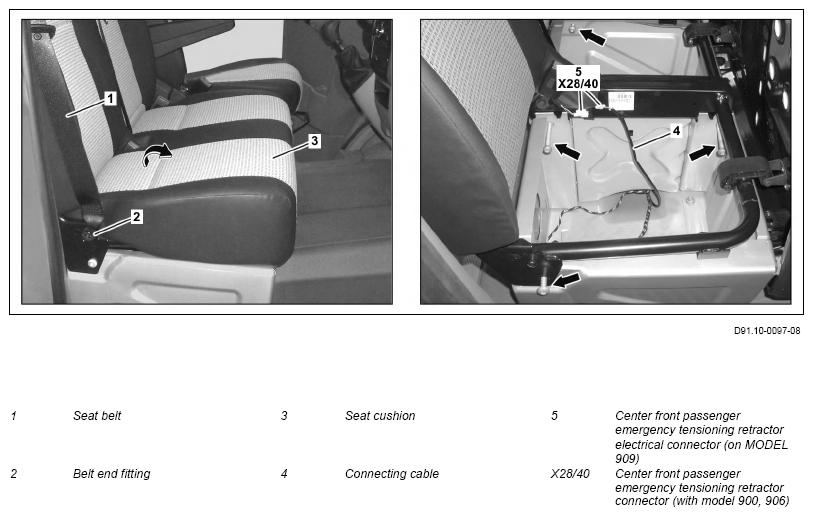

Shown on model 906

Warning	Risk of injury  caused by performing testing or repair work on airbag or emergency tensioning retractor units.	Store airbag units with deployment side facing up; do not expose to temperatures greater than 100 °C. When working on these units, disconnect the power supply.	AS91.00-Z-0001-01A
Caution	Risk of injury.  Injury may result when the tension in the spring in the automatic belt retractor is released.	Never disassemble automatic belt retractors.	AS91.00-Z-0002-01A
	Notes on performing repair, body work and welding on vehicles with airbags and RTE units		AH91.00-P-0002-01M
	Legal requirements on handling and storing airbags and emergency tensioning retractor units		AH91.00-P-0004-01A
	Assessment of airbag and belt tensioner units in accident vehicles		AH91.00-P-0006-01B
	Remove/install
1	Risk of explosion  from explosive gas. Risk of poisoning and caustic burns  from swallowing battery electrolyte. Risk of injury  through burns to skin and eyes from battery acid or when handling damaged lead-acid batteries Disconnect battery ground line Notes on battery	AS54.10-Z-0001-01A AH54.10-P-0001-01A
2	Remove ignition/transmitter key
3	Remove screw/bolt at belt end fitting (2) of outer seat belt (1)
		Model 906 Bolt, belt end fitting to seat	*BA91.40-N-1008-01B
4	Fold seat cushion (3) towards front
5	Disconnect center front passenger emergency tensioning retractor electrical connector (5 or X28/40) and remove connection line (4) from seat frame	MODEL 906 with CODE S23
6	Unscrew bolts (arrows)
		Model 906 Bolt, front passenger bench seat to seat base	*BA91.10-N-1016-01A
7	Fold back seat cushion (3) and remove front passenger bench seat from seat base
8	Install in the reverse order
