Replace Front Longitudinal Member Up To Passenger Compartment Floor Area - Ar62.20-D-1240H

Model 900, 906

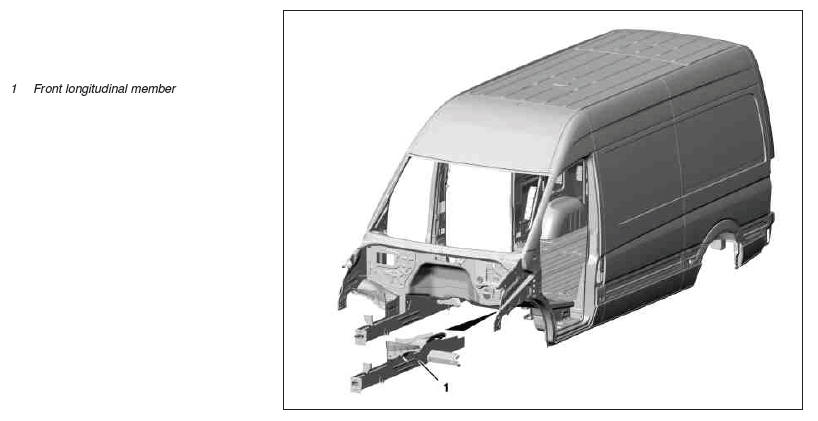

Shown on left side of vehicle on model 906.633

Courtesy of MERCEDES-BENZ USA

	The high voltage used for electric welding presents a lethal hazard. Risk of explosion  from welding in areas close to highly inflammable materials. Risk of injury  from weld splatter and UV-light when welding. Risk of poisoning  from inhaling welding gases	Use insulating mats. Wear protective clothing, safety glasses and a protective mask. Remove highly flammable materials from the hazard area. Use air extraction system.	AS00.00-Z-0007-01A
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Measures for preventing damage to vehicles or components when performing electric welding work		AH00.00-N-0005-01A
	General information on body repair		AH60.00-N-0001-01A
	Remove
1	Remove detachable parts in area to be repaired
2	Cover all detachable parts remaining on vehicle with spark protection blanket
3	Separate front longitudinal member (1)		AR62.20-D-1240-12H
4	Prepare front longitudinal member (1)		AR62.20-D-1240-13H
5	Prepare reinforcements for installation	Model 906 with code CV1 (Pre-installation for winter service vehicle)	AR62.20-D-1240-08H
	Install
6	Install front longitudinal member (1) and weld in
	000 588 02 84 00 Welder		WS60.00-P-0022K
			AR62.20-D-1240-14H
7	Install reinforcement on front longitudinal member (1) and weld in
	000 588 02 84 00 Welder		WS60.00-P-0022K
		Model 906 with code CV1 (Pre-installation for winter service vehicle)	AR62.20-D-1240-15H
8	Clean weld joints and sheet metal flange with round wire brush
9	Remove spark protection blankets
10	Clean repair area
	Risk of explosion  caused by paint vapors igniting. Risk of poisoning  caused by inhaling paint vapors.	No smoking! No open fire! Use respiratory protection, protective clothing, gloves, safety glasses and protective skin cream. Ensure that the area is well ventilated.	AS98.00-Z-0002-01A
11	Prime repair area using primer filler	Use only primer filler approved by Daimler AG: http://xentryportal.mercedes-benz.com
12	Carry out seam sealing after repairs		AR97.10-D-4000H
		Supplement standard sealant with sealant.
	Risk of explosion  caused by paint vapors igniting. Risk of poisoning  caused by inhaling paint vapors.	No smoking! No open fire! Use respiratory protection, protective clothing, gloves, safety glasses and protective skin cream. Ensure that the area is well ventilated.	AS98.00-Z-0002-01A
13	Paint repair areas and adjacent surfaces	Use only paints approved by Daimler AG: http://xentryportal.mercedes-benz.com
14	Apply additional cavity preservation		AR97.20-D-1500H
15	Install all detachable body components in area to be repaired
