Remove/Install Hinged Door - Ar72.15-D-1051B

MODEL 906

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of injury  caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, liftgates or sliding roof	Keep body parts and limbs well clear of moving parts.	AS00.00-Z-0011-01A

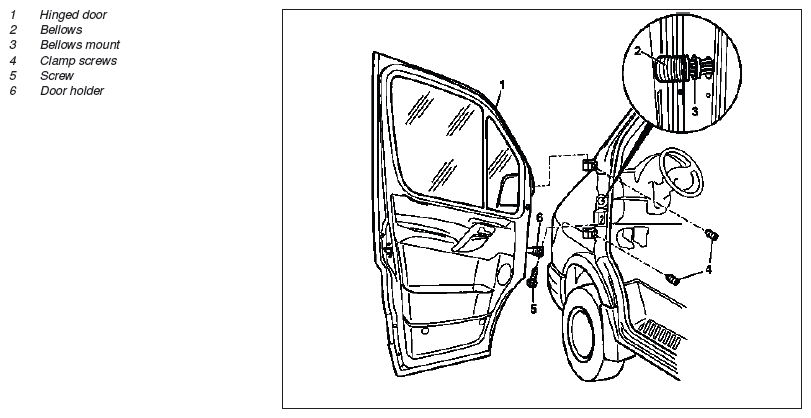

1	Pull bellows (2) out of A-pillar and disconnect electrical connectors.
2	Unclip bellows mount (3) from hinged door (1).	Insert bellows mount (3) into bellows (2) before installation.
3	Unscrew door holder (6) from A-pillar	Installation: Install new self-locking bolt (5)
			*BA72.15-N-1001-01C
4	Unscrew clamping bolts (4).
5	Lift out hinged door (1)	Aid of helper required.
6	Install in the reverse order
7	Adjust hinged door (1)		AR72.15-D-1021B

HINGED DOORS

Number	Designation			Model 906.1/6/7	Model 906.2
BA72.15-N-1001-01C	Bolt, door holder at A-pillar	M8	Nm	30	30
