Adjust Hinged Door - Ar72.15-D-1021B

MODEL 906

Courtesy of MERCEDES-BENZ USA

	Adjust

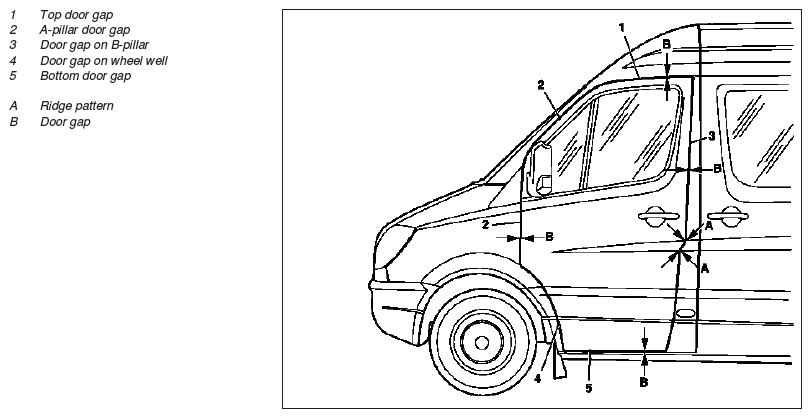

1	Check door gap (B) and ridge pattern (A) along hinged door all the way around	Ensure that ridge transitions do not have shoulders.
		Upper door gap (1)	*BE72.15-N-1001-01A
		Lower door gap (5)	*BE72.15-N-1002-01A
		A-pillar door gap (2)	*BE72.15-N-1003-01A
		B-pillar door gap (3)	*BE72.15-N-1004-01A
		Wheel arch door gap (4)	*BE72.15-N-1005-01A
		Feeler gauge	Fig 1
2	Adjust door gaps (B) and ridge pattern (A)		AR72.15-D-1021-01B
		Upper door gap (1)	*BE72.15-N-1001-01A
		Lower door gap (5)	*BE72.15-N-1002-01A
		A-pillar door gap (2)	*BE72.15-N-1003-01A
		B-pillar door gap (3)	*BE72.15-N-1004-01A
		Wheel arch door gap (4)	*BE72.15-N-1005-01A
			*BA72.15-N-1008-01C
		Feeler gauge	Fig 1
3	Adjust installation depth	Adjust transitions of front door from flush to max. 1 mm sinked in, at rear with a protrusion of 0.2 mm to 1 mm (wind noises). Rotary tumbler should engage in the center of the locking eye.	AR72.15-D-1021-02B
			*BA72.15-N-1013-01C

HINGED DOORS CHECK VALUES

Number	Designation		Model 906
BE72.15-N-1001-01A	Top door gap	mm	5 (± 0.8)
BE72.15-N-1002-01A	Bottom door gap	mm	5.5 (± 1.0)
BE72.15-N-1003-01A	A-pillar door gap	mm	5.5 (± 1.0)
BE72.15-N-1004-01A	Door gap on B-pillar	mm	5.5 (± 1.0)
BE72.15-N-1005-01A	Door gap on wheel well	mm	6.5 (± 1.0)

HINGED DOORS

Number	Designation		Model 906.1/6/7	Model 906.2
BA72.15-N-1008-01C	Bolt, door hinge to hinged door	Nm	23	23
BA72.15-N-1013-01C	Bolt, striker bolt to B-pillar	Nm	20	20

Fig 1: Feeler Gauge (129 589 03 21 00)

Courtesy of MERCEDES-BENZ USA
