Remove/install front engine mount and/or engine support - AR22.10-P-1260RKC

ENGINE 279 in MODEL 231

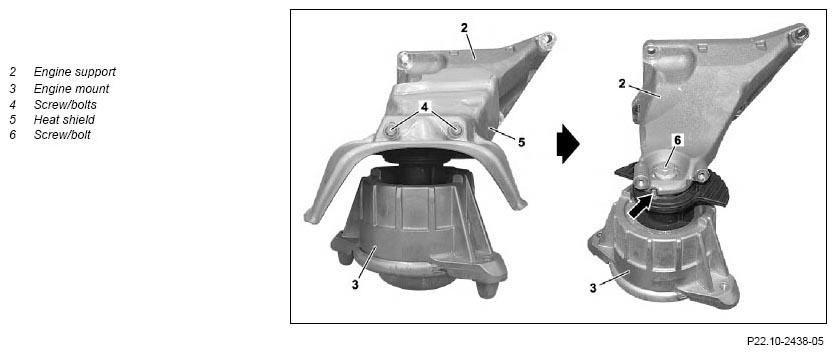

Fig 1: Front Engine Mount And Engine Support Remove/Install Components (1 Of 4)

Courtesy of MERCEDES-BENZ USA

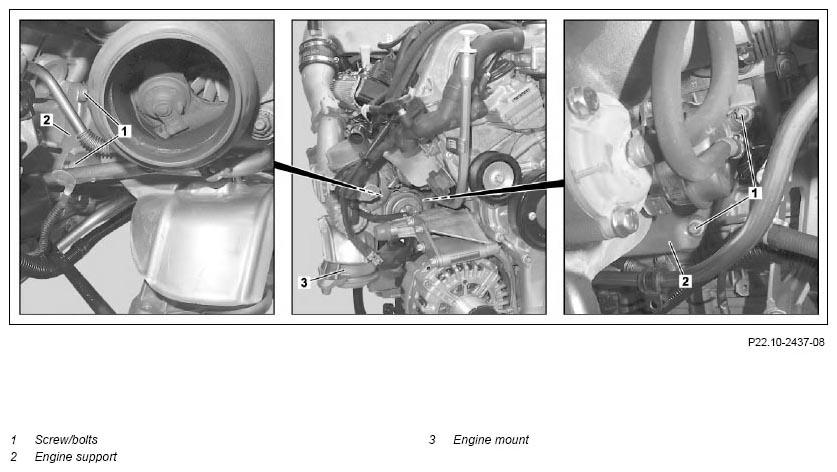

Fig 2: Front Engine Mount And Engine Support Remove/Install Components (2 Of 4)

Courtesy of MERCEDES-BENZ USA

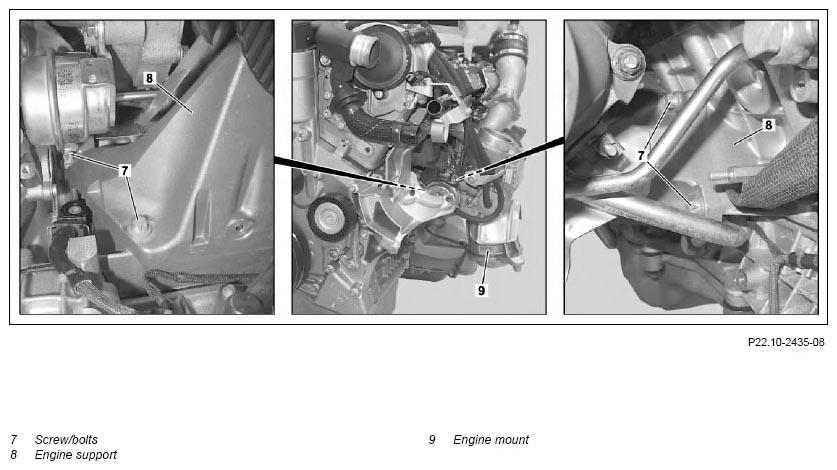

Fig 3: Front Engine Mount And Engine Support Remove/Install Components (3 Of 4)

Courtesy of MERCEDES-BENZ USA

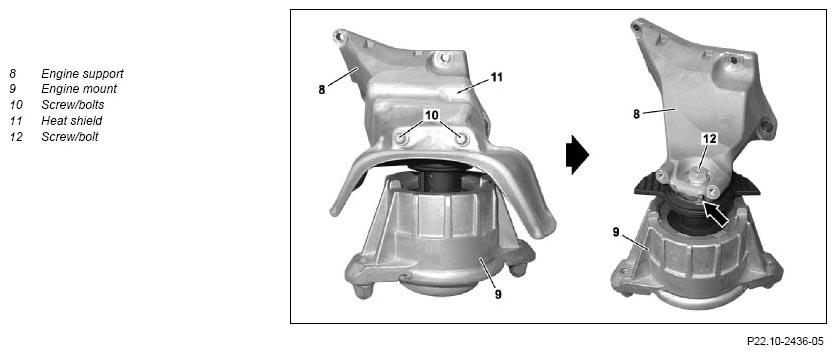

Fig 4: Front Engine Mount And Engine Support Remove/Install Components (4 Of 4)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove engine with front axle carrier		AR01.10-P-2500RKC
2	Remove engine from front axle carrier		AR01.10-P-2510RKC
3	Remove the screw/bolts (1) of the right engine support (2) and remove the right engine support (2) together with the right engine mount (3)	The screw/bolts (1) of the right engine support (2) should be replaced. Bolt, engine support to crankcase	*BA22.10-P-1001-02A
4	Remove screw/bolts (4) and heat shield (5)	Bolt, heat shield to engine support	*BA22.10-P-1003-02A
5	Remove right engine mount (3) screw/bolt (6) and remove right engine mount (3)	Pay attention to environmental protection regulations for disposing of engine mounts. Dispose engine mounts into mixed scrap. Pay attention to the correct installation position of the engine mount (3). The lug must be in the groove (arrow). Bolt, front engine mount to engine support	*BA22.10-P-1001-03E
6	Unscrew the screw/bolts (7) of the left engine support (8) and remove the left engine support (8) together with the left engine mount (9)	The screw/bolts (7) of the right engine support (8) should be replaced. Bolt, engine support to crankcase	*BA22.10-P-1001-02A
7	Remove screw/bolts (10) and heat shield (11)	Bolt, heat shield to engine support	*BA22.10-P-1003-02A
8	Remove screw/bolt (12) for left engine mount (9) and left engine mount (9)	Pay attention to environmental protection regulations for disposing of engine mounts. Dispose engine mounts into mixed scrap. Pay attention to the correct installation position of the engine mount (9). The lug must be in the groove (arrow). Bolt, front engine mount to engine support	*BA22.10-P-1001-03E
9	Install in the reverse order

ENGINE SUPPORT (ENGINE SIDE)

Number	Designation			ENGINE 279
BA22.10-P-1001-02A	Bolt, engine support to crankcase	Stage 1	Nm	20
		Stage 2	∠°	90

ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number	Designation				Model 231
BA22.10-P-1001-03E	Bolt, front engine mount to engine support	M10		Nm	50
		M12	Stage 1	Nm	85
			Stage 2	∠°	90

ENGINE SUPPORT (ENGINE SIDE)

Number	Designation		ENGINE 279
BA22.10-P-1003-02A	Bolt, heat shield to engine support	Nm	13
