Remove/install engine from/onto front axle carrier - AR01.10-P-2510RKC

ENGINE 279 in MODEL 231

MODIFICATION NOTES

22.03.2013

Bolt, top lifting eye

BA01.30-P-1007-01Z

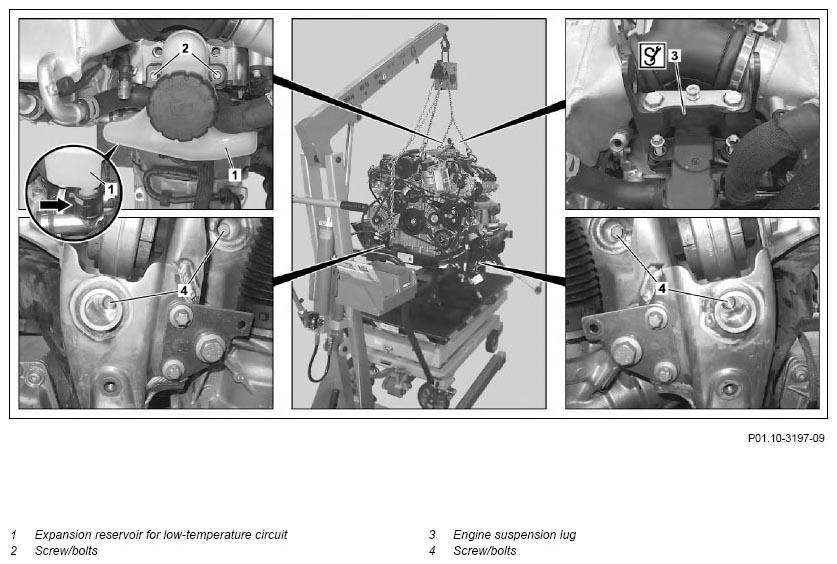

Fig 1: Engine From/Onto Front Axle Carrier Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Remove/install
1	Remove engine with front axle carrier		AR01.10-P-2500RKC
2	Remove low-temperature circuit expansion reservoir (1)	To do this remove screw/bolts (2) and unlock low-temperature circuit expansion reservoir (1) (arrow) Screw/bolt, low pressure expansion reservoir to carrier plate/engine suspension lug	*BA09.41-P-1010-01Q
3	Mount engine suspension lug (3)	Screw/bolt for engine suspension lug at top	*BA01.30-P-1007-01Z
3	Mount engine suspension lug (3)	Lifting eye	Fig 2
4	Hook engine hoist into engine lifting eyes
5	Remove tensioning strap for engine-transmission unit
6	Secure front axle carrier on portable lifting platform with tensioning strap against slipping and falling down
7	Lift engine	Only raise far enough for chain on engine hoist to be lightly tensioned.
8	Remove screw/bolts (4)	Bolt, front engine mount to front axle carrier	*BA22.10-P-1002-03E
9	Lift off engine/transmission unit from front axle carrier	Ensure when lifting that engine oil pan is not damaged. Ensure that engine mount sits correctly in the catches on front axle carrier.
10	Install in the reverse order

CYLINDER HEAD

Number	Designation			ENGINE 279
BA01.30-P-1007-01Z	Screw/bolt for engine suspension lug at top	M10	Nm	60

CHARGE AIR PIPE/CHARGE AIR COOLING

Number	Designation		ENGINE 279
BA09.41-P-1010-01Q	Screw/bolt, low pressure expansion reservoir to carrier plate/engine suspension lug	Nm	9

ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number	Designation			Model 231
BA22.10-P-1002-03E	Bolt, front engine mount to front axle carrier	M8	Nm	30

Fig 2: Identifying Lifting Eye (285 589 01 61 00)

Courtesy of MERCEDES-BENZ USA
