Remove/install front door side window - AR72.10-P-1961LFS

MODEL 222

with CODE Z07 (Top protection)

with CODE Z11 (Left front power window with special protection)

with CODE Z12 (Right front power window with special protection)

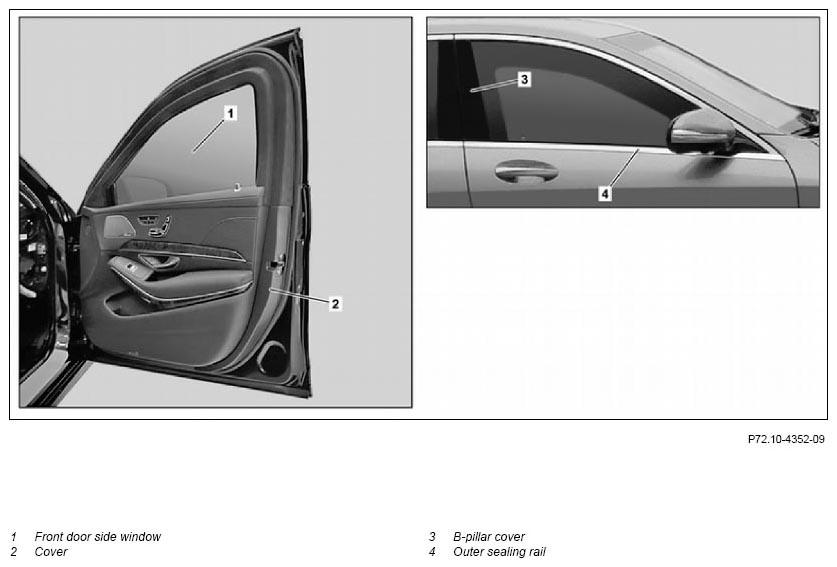

Fig 1: Front Door Side Window Remove/Install Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

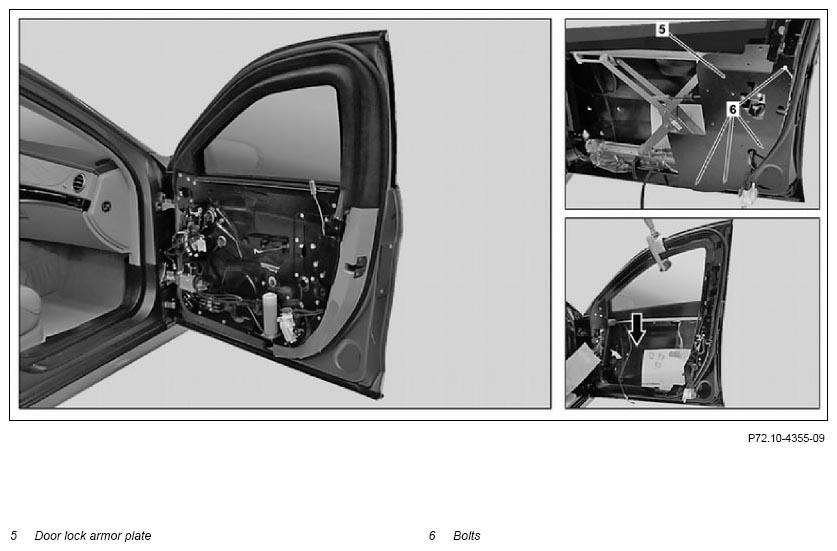

Fig 2: Front Door Side Window Remove/Install Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Risk of injury  from pinching or crushing hands and feet when working on windows.	Secure the windshields and windows against falling down; use only specified lifting tools; wear safety shoes.	AS67.00-Z-0003-01A
	Notes on avoiding damage to windows installed in special high-security vehicles		AH67.00-P-0003-01FB
	Remove/install
1	Remove left and right power window in front door		AR72.10-P-1800LFS
2	Remove paneling (2) on inner front door in area of left and right door lock	Replace paneling (2) on inner front door in area of door lock after removal.
		Mounting wedge	Figure
3	Remove outer sealing rail (4) on right and left	Carefully lift out outer sealing rail (4). Otherwise the outer sealing rail (4) can bend and must be replaced.
		Mounting wedge	Figure
4	Pull out window guide seal in area of B-pillar cover (3)
5	Unscrew bolts from B-pillar cover (3) and remove B-pillar cover (3)
6	Remove bolts (6) and remove door lock armor plate (5)	Bolt, armor plate to front door	*BA72.10-P-1009-01Y
7	Fasten suitable lifting device on front door side window (1) and remove front door side window (1) downward out of front door in direction of arrow	To remove front door side window (1), suitable lifting device (crane, cup suction tool) and helper required.
8	Install in the reverse order

Fig 3: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
