Repair rear end on left side - AR64.20-P-1200LF

MODEL 217.3, 222

Shown on MODEL 222

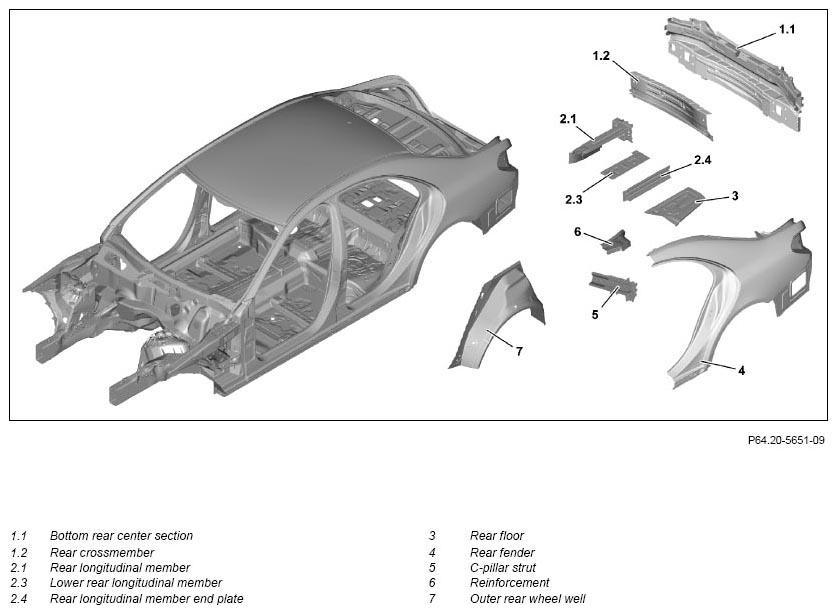

Fig 1: Bottom Rear Center Section, Rear Floor, Rear Fender, C-Pillar Strut, Reinforcement And Outer Rear Wheel Well - Shown On Model 222
G11132790DANGERDANGERDANGERDANGERNOTESNOTESNOTESNOTESNOTESIMPORTANTIMPORTANTREMOVINGREFER TO SPECIAL TOOLSIMPORTANTIMPORTANTIMPORTANTIMPORTANTIMPORTANTIMPORTANTIMPORTANTINSTALLINGDANGERDANGERNOTESIMPORTANTREFER TO SPECIAL TOOLSREFER TO SPECIAL TOOLSREFER TO SPECIAL TOOLSIMPORTANTIMPORTANTREFER TO SPECIAL TOOLSIMPORTANTREFER TO SPECIAL TOOLSIMPORTANTCourtesy of MERCEDES-BENZ USA
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
DANGER Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. AS00.00-Z-0017-01A
DANGER Risk of explosion  caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel. No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only.
Wear protective clothing when handling fuel.
AS47.00-Z-0001-01A
DANGER Risk of death  when touching components on vehicles with high-voltage on-board electrical system Do not touch components and open lines of the high-voltage on-board electrical system. Persons who wear electronic implants (e.g. cardiac pacemakers), must not carry out any work on high-voltage on-board electrical systems. AS54.00-Z-0001-01A
NOTES Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
NOTES Note on high-voltage on-board electrical system   AH54.00-P-0010-01A
NOTES Note on high-voltage battery   AH54.10-P-0006-01MEV
NOTES Pretreatment of bonding surfaces   AH60.00-P-0008-01SX
NOTES Evaluation of high-voltage components   AH54.00-P-6500-01SXH
IMPORTANT General information on body repair   AH60.00-P-0001-01A
IMPORTANT General information on MB materials   AH98.00-P-9409-03A
REMOVING Remove
1 Remove detachable parts in area to be repaired
2 Cover all detachable parts remaining on vehicle with spark protection blanket
3 Set up straightening bench with module members, crossmember and straightening set
REFER TO SPECIAL TOOLS 000 588 01 23 00 Body straightening system IMPORTANT Observe set-up plans provided. WS60.00-P-0023K
4 Place vehicle on straightening bench and fasten
5 Damage area, reshaping
6 Remove lower rear center section (1.1) with rear crossmember (1.2)   AR64.20-P-1060LF
7 Remove rear fender (4) Model 217.3 AR63.50-P-1400LC
    Model 222 AR63.50-P-1400LF
8.1 Remove C-pillar strut (5) from outer C-pillar Model 217.3 AR63.20-P-0500LC
8.2 Remove C-pillar strut (5) from outer C-pillar Model 222
except code Z07 (Top protection)
AR63.20-P-0500LF
8.3 Remove C-pillar strut (5) from outer C-pillar Model 222
with code Z07 (Top protection)
IMPORTANTCommercially available devices/tools
Body power jigsaw
Round wire brush
Spot weld milling machine
Heat gun
Wet/dry vacuum cleaner
AR63.20-P-0500-07LFS
9 Remove outer rear wheel well (7) Model 217.3
Model 222
except code Z07 (Top protection)
AR63.10-P-0665LF
10.1 Remove reinforcement (6) from inner C-pillar side wall Model 222
except code Z07 (Top protection)
AR63.10-P-0700LF
10.2 Remove reinforcement (6) from inner C-pillar side wall Model 222
with code Z07 (Top protection)
IMPORTANTCommercially available devices/tools
Round wire brush
Spot weld milling machine
Heat gun
Wet/dry vacuum cleaner
AR63.10-P-0700-06LFS
Zinc dust paint suitable for spot welding *BR00.45-Z-1001-07A
11 Remove rear longitudinal member (2.1), lower rear longitudinal member (2.3), rear longitudinal member end plate (2.4) and rear rear-end floor (3)   AR64.20-P-1260-01LF
IMPORTANTCommercially available devices/tools
Round wire brush
Body power jigsaw
Spot weld milling machine
Heat gun
Wet/dry vacuum cleaner
Zinc dust paint suitable for spot welding
*BR00.45-Z-1001-07A
12 Prepare ear longitudinal member (2.1), lower rear longitudinal member (2.3), rear longitudinal member end plate (2.4) and rear rear-end floor (3)   AR64.20-P-1260-02LF
IMPORTANTCommercially available devices/tools
Round wire brush
Zinc dust paint suitable for spot welding
*BR00.45-Z-1001-07A
13 Prepare C-pillar strut (5) on outer C-pillar for installation Model 222
with code Z07 (Top protection)
IMPORTANTCommercially available devices/tools
Round wire brush
AR63.20-P-0500-08LFS
14 Prepare reinforcement (6) on inner C-pillar side wall for installation Model 222
with code Z07 (Top protection)
IMPORTANTCommercially available devices/tools
Round wire brush
AR63.10-P-0700-07LFS
INSTALLING Install
DANGER The high voltage used for electric welding presents a lethal hazard. Risk of explosion  from welding in areas close to highly inflammable materials. Risk of injury  from weld splatter and UV-light when welding. Risk of poisoning  from inhaling welding gases Use insulating mats. Wear protective clothing, safety glasses and a protective mask. Remove highly flammable materials from the hazard area. Use air extraction system. AS00.00-Z-0007-01A
DANGER Risk of poisoning  caused by inhaling vapors or swallowing adhesive. Risk of injury  caused by adhesive coming into contact with skin and eyes Wear respiratory protection, protective gloves and safety glasses. Pour adhesive into suitable and appropriately marked containers only. AS00.00-Z-0016-01A
NOTES Measures for preventing damage to components when performing electric welding and soldering work   AH60.00-P-0001-02A
IMPORTANT General information on riveting   AH60.00-P-0003-01N
15 Install rear longitudinal member (2.1), lower rear longitudinal member (2.3), rear longitudinal member end plate (2.4) and rear rear-end floor (3)   AR64.20-P-1260-03LF
REFER TO SPECIAL TOOLS 000 588 02 39 00 Rivet Press Tool   WS60.00-P-0010B
REFER TO SPECIAL TOOLS 000 588 02 84 00 Welder   WS60.00-P-0022K
REFER TO SPECIAL TOOLS 000 588 01 23 00 Body straightening system   WS60.00-P-0023K
    IMPORTANTCommercially available devices/tools
Round wire brush
Manual temporary fastener, 6.35 mm
Spot welder
Wet/dry vacuum cleaner
IMPORTANT Observe set-up plans provided.
Adhesive kit, body, 2-component adhesive
*BR00.45-Z-1092-02A
    Zinc dust paint suitable for spot welding *BR00.45-Z-1001-07A
    Blind rivet 6.5x12.5 *BR00.45-Z-1012-13A
16 Install rear outer wheel well (7) Model 217.3
Model 222
except code Z07 (Top protection)
AR63.10-P-0665LF
17.1 Install reinforcement (6) from inner C-pillar side wall Model 222
except code Z07 (Top protection)
AR63.10-P-0700LF
17.2 Install reinforcement (6) from inner C-pillar side wall Model 222
with code Z07 (Top protection)

REFER TO SPECIAL TOOLS     AR63.10-P-0700-08LFS
    IMPORTANT
Commercially available devices/tools
Round wire brush
Manual temporary fastener, 6.35 mm
Wet/dry vacuum cleaner
WS60.00-P-0010B
    Parts kit for 2-component adhesive for body *BR00.45-Z-1162-02A
    Polygrip countersunk-head rivet, 6.4x14 *BR00.45-Z-1002-13A
    Blind rivet 6.4x12 (clamping range 1 mm to 3.5 mm) *BR00.45-Z-1035-13A
18.1 Install C-pillar strut (5) on outer C-pillar Model 217.3 AR63.20-P-0500LC
18.2 Install C-pillar strut (5) on outer C-pillar Model 222
except code Z07 (Top protection)
AR63.20-P-0500LF
18.3 Install C-pillar strut (5) on outer C-pillar Model 222
with code Z07 (Top protection)

REFER TO SPECIAL TOOLS     AR63.20-P-0500-09LFS
    IMPORTANTCommercially available devices/tools
Round wire brush
Manual temporary fastener, 6.35 mm
Spot welder
Wet/dry vacuum cleaner
WS60.00-P-0010B
    Parts kit for 2-component adhesive for body *BR00.45-Z-1162-02A
    Zinc dust paint suitable for spot welding *BR00.45-Z-1001-07A
    Polygrip countersunk-head rivet, 6.4x14 *BR00.45-Z-1002-13A
    Blind rivet 6.4x12 (clamping range 1 mm to 3.5 mm) *BR00.45-Z-1035-13A
19 Install rear fender (4) Model 217.3 AR63.50-P-1400LC
    Model 222 AR63.50-P-1400LF
20 Install bottom rear center section (1.1) with rear crossmember (1.2)   AR64.20-P-1060LF
21 Release vehicle from straightening bench, lift vehicle and remove straightening bench
22 Install all detachable body components in area to be repaired
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1001-07A Zinc dust paint suitable for spot welding A 000 986 34 42
BR00.45-Z-1002-13A Polygrip countersunk-head rivet, 6.4x14 A 003 990 86 97 05
BR00.45-Z-1012-13A Blind rivet 6.5x12.5 A 004 990 16 97
BR00.45-Z-1035-13A Blind rivet 6.4x12 (clamping range 1 mm to 3.5 mm) A 000 991 76 32
BR00.45-Z-1092-02A Adhesive kit, body, 2-component adhesive A 009 989 36 71
BR00.45-Z-1162-02A Parts kit for 2-component adhesive for body A 012 989 17 71
