Remove/install outer rear wheel well - AR63.10-P-0665LF

MODEL 205

MODEL 217.3

MODEL 222 except CODE Z07 (Top protection)

MODEL 253

Shown on model 222

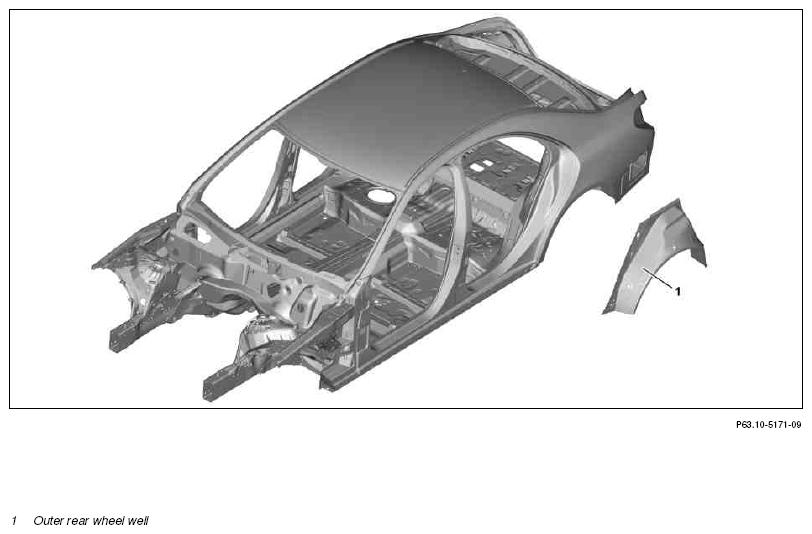

Fig 1: Outer Rear Wheel Well Remove/Install Components - Shown On Model 222
G10134159DANGERDANGERDANGERDANGERNOTESNOTESNOTESNOTESIMPORTANTIMPORTANTIMPORTANTIMPORTANTREMOVINGIMPORTANTIMPORTANTINSTALLINGDANGERDANGERNOTESIMPORTANTREFER TO SPECIAL TOOLSREFER TO SPECIAL TOOLSIMPORTANTSPECIAL TOOLIMPORTANTCourtesy of MERCEDES-BENZ USA
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
DANGER Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.
AS00.00-Z-0017-01A
DANGER Risk of explosion  caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel. No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only.
Wear protective clothing when handling fuel.
AS47.00-Z-0001-01A
DANGER Risk of death  when touching components on vehicles with high-voltage on-board electrical system Do not touch components and open lines of the high-voltage on-board electrical system. Persons who wear electronic implants (e.g. cardiac pacemakers), must not  carry out any work on high-voltage on-board electrical systems. AS54.00-Z-0001-01A
NOTES Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
NOTES Note on high-voltage on-board electrical system   AH54.00-P-0010-01A
NOTES Note on high-voltage battery   AH54.10-P-0006-01MEV
NOTES Pretreatment of bonding surfaces   AH60.00-P-0008-01SX
IMPORTANT Evaluation of high-voltage components   AH54.00-P-6500-01SXH
IMPORTANT General information on body repair   AH60.00-P-0001-01A
IMPORTANT Notes on acoustic foam and structural foam in the vehicle   AH60.00-P-0039-01A
IMPORTANT General information on MB materials   AH98.00-P-9409-03A
REMOVING Remove
1 Remove detachable parts in area to be repaired
2 Cover all detachable parts remaining on vehicle with spark protection blanket
3 Remove rear fender Model 205.0/1 AR63.50-P-1400LW
Model 205.2, 253 AR63.50-P-1400LWS
Model 217.3 AR63.50-P-1400LC
Model 222 except code Z07 (Top protection) AR63.50-P-1400LF
4 Separate outer rear wheel well (1)   AR63.10-P-0660-01LF
IMPORTANT Commercially available tools: Round wire brush, spot weld cutter, body power jigsaw, wet/dry vacuum cleaner.
Zinc dust paint suitable for spot welding *BR00.45-Z-1001-07A
5 Prepare new part for outer rear wheel well (1)   AR63.10-P-0670-05LF
IMPORTANT Commercially available tools: round wire brush, body power jigsaw.
Zinc dust paint suitable for spot welding *BR00.45-Z-1001-07A
INSTALLING Install
DANGER The high voltage used for electric welding presents a lethal hazard. Risk of explosion  from welding in areas close to highly inflammable materials. Risk of injury  from weld splatter and UV-light when welding. Risk of poisoning  from inhaling welding gases Use insulating mats. Wear protective clothing, safety glasses and a protective mask. Remove highly flammable materials from the hazard area. Use air extraction system. AS00.00-Z-0007-01A
DANGER Risk of poisoning  caused by inhaling vapors or swallowing adhesive. Risk of injury  caused by adhesive coming into contact with skin and eyes Wear respiratory protection, protective gloves and safety glasses. Pour adhesive into suitable and appropriately marked containers only. AS00.00-Z-0016-01A
NOTES Measures for preventing damage to components when performing electric welding and soldering work   AH60.00-P-0001-02A
IMPORTANT General information on riveting   AH60.00-P-0003-01N
6 Install outer rear wheel well (1) and weld in   AR63.10-P-0670-06LF
    Gap dimensions on hoods, doors and lids Model 205, 253 AR60.00-P-0700-01LW
    Gap dimensions on hoods, doors and lids Model 217.3 AR60.00-P-0700-01LC
    Gap dimensions on hoods, doors and lids Model 222
except code Z07 (Top protection)
AR60.00-P-0700-01LF
REFER TO SPECIAL TOOLS 000 588 01 84 00 Welder   WS60.00-P-0021K
REFER TO SPECIAL TOOLS 000 588 02 84 00 Welder   WS60.00-P-0022K
    IMPORTANT Commercially available tools: Round wire brush, manual temporary fasteners, 6.35 mm, blind rivet gun (minimum pull-off force 19 kN), wet/dry vacuum cleaner.
    Model 205.2Rear door to side section, bottom *BE60.00-P-1010-01BB
    Model 205.2 Sidewall to liftgate *BE60.00-P-1021-01BB
    Model 205.2 Outside of taillamp to inside of taillamp *BE60.00-P-1022-01BB
    Model 253 Rear door to side piece *BE60.00-P-1008-01FA
    Model 253 Sidewall to liftgate *BE60.00-P-1013-01FA
    Model 253 Outside of taillamp to inside of taillamp *BE60.00-P-1014-01FA
    Model 217.3 Rear fender to taillamp *BE60.00-P-1008-01DA
    Model 217.3 Front door to sidewall *BE60.00-P-1005-01DA
    Model 205.0/1 Rear door to side section, bottom *BE60.00-P-1010-01BB
    Model 205.0/1 Trunk lid to fender at rear, top *BE60.00-P-1012-01BB
    Model 222
except code Z07 (Top protection) Rear door to side section, bottom
*BE60.00-P-1012-01BA
    Model 222
except code Z07 (Top protection) Trunk lid to rear fender at top
*BE60.00-P-1014-01BA
    Zinc dust paint suitable for spot welding *BR00.45-Z-1001-07A
    Adhesive kit, body, 2-component adhesive *BR00.45-Z-1092-02A
    White sealing compound, 310 ml, DBL 6069.20 *BR00.45-Z-1003-01A
    Blind rivet 6.4 X 12 (clamping range 1 mm to 3.5 mm) *BR00.45-Z-1035-13A
    Repair solution for broken or missing weld studs *BR00.45-Z-1037-13A
    SPECIAL TOOL Feeler gauge Fig 2
7 Clean welds and sheet metal flange IMPORTANT Commercially available tools: Round wire brush.
8 Install rear fender Model 205.0/1 AR63.50-P-1400LW
Model 205.2, 253 AR63.50-P-1400LWS
Model 217.3 AR63.50-P-1400LC
Model 222 except code Z07 (Top protection) AR63.50-P-1400LF
9 Install all detachable body components in area to be repaired
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 217.3
BE60.00-P-1005-01DA Front door to sidewall Dimension "F6" mm 3, 5 (± 1, 0)
For picture, see   AR60.00-P-0700-01LC
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 217.3
BE60.00-P-1008-01DA Rear fender to taillamp Dimension "F9C" mm 1, 0 (± 0, 5)
For picture, see   AR60.00-P-0700-01LC
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number Designation Model 253
BE60.00-P-1008-01FA Rear door to side piece Dimension "I" mm 3, 5 (± 0, 5)
For picture, see   AR60.00-P-0700-01LW
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 205.0/1 Model 205.2
BE60.00-P-1010-01BB Rear door to side section, bottom Dimension "I" mm 3, 5 (± 0, 5) 3, 5 (± 0, 5)
For picture, see   AR60.00-P-0700-01LW AR60.00-P-0700-01LW
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 222
BE60.00-P-1012-01BA Rear door to side section, bottom Dimension "I" mm 4 (± 0, 5)
For picture, see   AR60.00-P-0700-01LF
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 205.0/1
BE60.00-P-1012-01BB Trunk lid to fender at rear, top Dimension "K" mm 3, 5 (+0, 5/-1)
Dimension "K1" mm -
For picture, see   AR60.00-P-0700-01LW
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number Designation Model 253
BE60.00-P-1013-01FA Sidewall to liftgate Dimension "S" mm 4, 0 (± 1, 5)
For picture, see   AR60.00-P-0700-01LW
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 222
BE60.00-P-1014-01BA Trunk lid to rear fender at top Dimension "K" mm 3, 5 (± 1)
For picture, see   AR60.00-P-0700-01LF
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number Designation Model 253
BE60.00-P-1014-01FA Outside of taillamp to inside of taillamp Dimension "T" mm 3, 5 (+1, 5/-1)
For picture, see   AR60.00-P-0700-01LW
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 205.2
BE60.00-P-1021-01BB Sidewall to liftgate Dimension "S" mm 3, 5 (± 0, 8)
For picture, see   AR60.00-P-0700-01LW
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 205.2
BE60.00-P-1022-01BB Outside of taillamp to inside of taillamp Dimension "T" mm 3, 8 (± 1, 0)
For picture, see   AR60.00-P-0700-01LW
Fig 2: Identifying Feeler Gauge (129 589 03 21 00)
G10134160Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1001-07A Zinc dust paint suitable for spot welding A 000 986 34 42
BR00.45-Z-1003-01A White sealing compound, 310 ml, DBL 6069.20 A 001 989 63 20
BR00.45-Z-1035-13A Blind rivet 6.4 X 12 (clamping range 1 mm to 3.5 mm) A 000 991 76 32
BR00.45-Z-1037-13A Repair solution for broken or missing weld studs A 000 990 12 10
BR00.45-Z-1092-02A Adhesive kit, body, 2-component adhesive A 009 989 36 71
