Retrofit InCar Hotspot - AZ82.80-P-0002GQA

MODEL 166.0 (except 166.074) with CODE 386 (Convenience telephony) with CODE 512 (COMAND APS with DVD changer) without CODE 460 (Canada version) without CODE 494 (US version) without CODE 498 (Japanese version) without CODE 830 (China version)

MODEL 166.0 (except 166.074) with CODE 386 (Convenience telephony) with CODE 527 (COMAND APS with single DVD drive (with navigation)) without CODE 460 (Canada version) without CODE 494 (US version) without CODE 498 (Japanese version) without CODE 830 (China version)

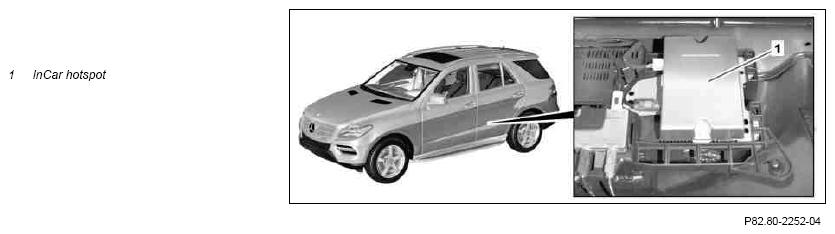

Fig 1: Identifying InCar Hotspot

Courtesy of MERCEDES-BENZ USA

	Remove
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Switch off ignition and remove transmitter key or KEYLESS-GO start/stop button from electronic ignition lock control unit	KEYLESS-GO start/stop button only on vehicles with CODE 889 (Keyless-Go).
2	Remove left and right rear seat armrest
		60% rear seat backrest	AR91.12-P-1620GQ
		40% rear seat backrest	AR91.12-P-1620GQA
3	Remove side paneling in left trunk
			AR68.30-P-4800GQ
4	Remove D-pillar paneling on left	MODEL 166.0 with CODE 228 (Stationary heater)
			AR68.30-P-4495GQ
5	Remove left and right rear door sills
			AR68.30-P-4100GQ
6	Fold forward floor covering under rear seat cushion
	Install
7	Retrofit InCar Hotspot (1) with holder		AZ82.80-P-0002-02GQA
8	Install wiring harness into InCar Hotspot	MODEL 166.0 with CODE 228 (Stationary heater)	AZ82.80-P-0002-01GQB
		MODEL 166.0 except CODE 228 (Stationary heater)	AZ82.80-P-0002-01GQA
9	Fold back floor covering under rear seat cushion
10	Mount cutout for floor covering for InCar Hotspot (1)		AZ82.80-P-0002-04GQA
11	Install remaining parts
12	Perform function test of InCar Hotspot (1)	See operator's manual for InCar Hotspot (1).
13	Document retrofitted equipment via vehicle documentation (VeDoc)	Attach "InCar Hotspot retrofitted in accordance with AZ82.80-P-0002GQA " under field organization texts for design group 82.
