Remove/install side paneling in trunk - AR68.30-P-4800GQ

MODEL 166.0

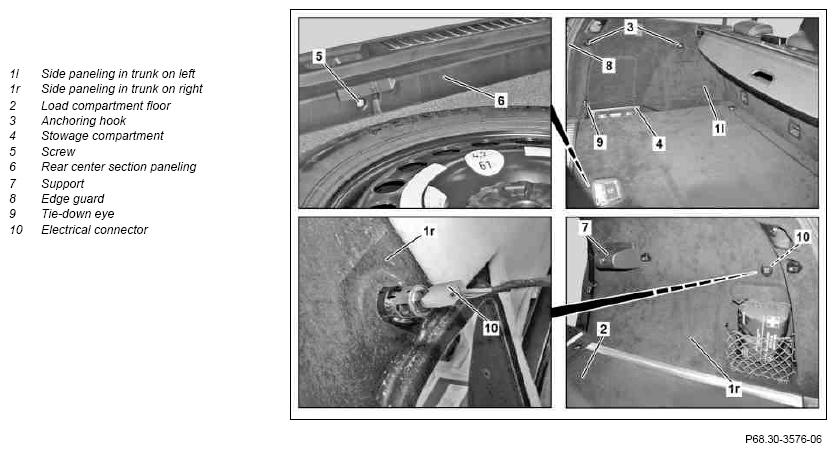

Fig 1: Identifying Trunk Side Paneling Remove/Install Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

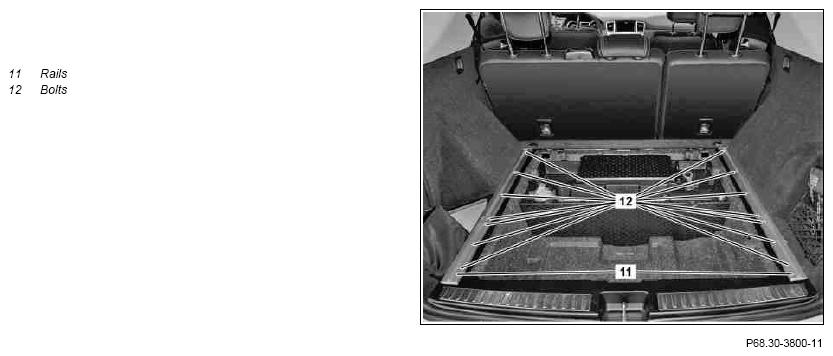

Fig 2: Identifying Trunk Side Paneling Remove/Install Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

Shown on left side of vehicle

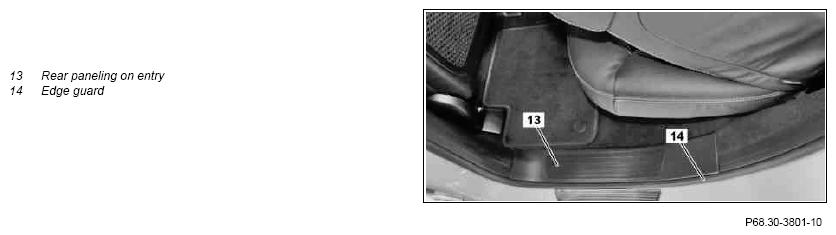

Fig 3: Identifying Trunk Side Paneling Remove/Install Components - Shown On Vehicle Left Side

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Release backrest in rear and fold over
2	Remove load compartment cover
3	Remove support (7)
4	Remove load compartment floor (2)
5	Unscrew bolts (12) and remove rails (11)
6	Unscrew bolt (5) and remove rear center section paneling (6)
7	Remove storage compartment (4)	When removing side paneling in left trunk (1l).
8	Remove anchoring hook (3) and tie-down eye (9)
9	Remove edge guard (8) from D-pillar
10	Remove paneling on rear entry (13) from C-pillar	Mounting wedge	Figure
11	Remove edge guard (14) from C-pillar
12	Unclip side paneling in left and right trunk (1l, 1r) from D-pillar paneling	Ensure that retaining clip on D-pillar is aligned correctly.
		Mounting wedge	Figure
13	Pull side paneling in right trunk (1r) out until electrical connector (10) is accessible	When removing side paneling in right trunk in right trunk (1r).
14	Disconnect electrical connector (10) from side paneling in right trunk (1r)	When removing side paneling in right trunk in right trunk (1r).
15	Remove side paneling in left and right trunk (1l, 1r)
16	Install in the reverse order

Fig 4: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
