Remove/install lower control panel control unit - AR54.21-P-1263GQ
MODEL 166
Shown on vehicle with code (430) Off-road package and code (489) AIRmatic (air suspension with level adjustment and adaptive damping system ADS)

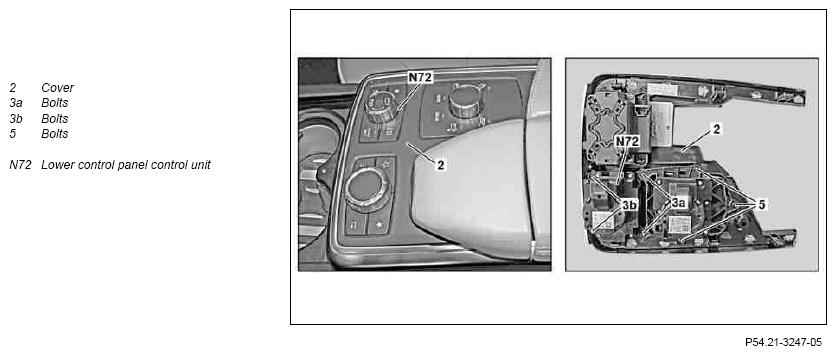

Fig 1: Identifying Lower Control Panel Control Unit Remove/Install Components - Shown On Vehicle With Code (430)
| Remove/install | |||
| 1 | Switch off ignition and remove transmitter key or KEYLESS-GO start/stop button from electronic ignition lock control unit | ||
| 2 | Remove cover (2) from center console | AR68.20-P-2350GQ | |
| 3 | Remove bolts (3a) | ||
| 4 | Remove bolts (5) and off-road control pane | Vehicles with code (430) Off-road package | |
| 5 | Remove bolts (3b) | ||
| 6 | Unclip lower control panel control unit (N72) from cover (2) | ||
| 7 | Install in the reverse order |
