Remove/install cover on center console - AR68.20-P-2350GQ

MODEL 166

Shown on vehicle with code (430) On & Offroad package and code (489) AIRMATIC (air suspension with continuously adjustable damping)

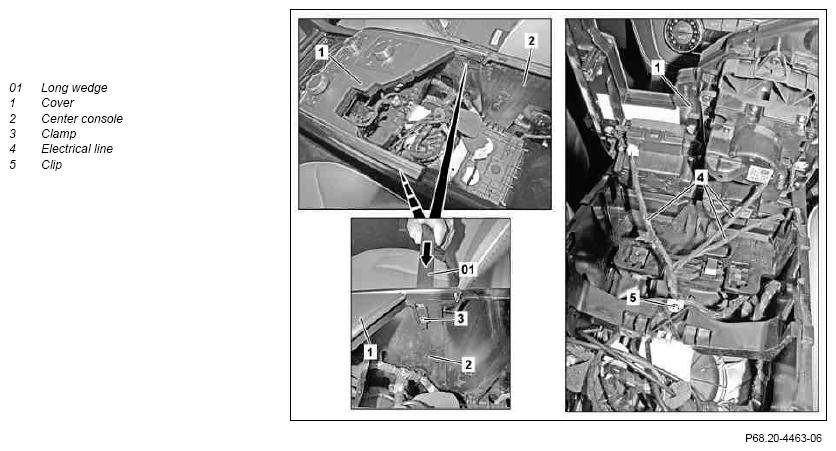

Fig 1: Identifying Center Console Cover Remove/Install Components - Shown On Vehicle With Code (430)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove stowage box		AR68.20-P-2320GQ
2	Unclip cover (1) from center console (2) at rear	For this purpose position long wedge (01) between cover (1) and center console (2) on clips (3). Press in long wedge (01) (arrow) and unclip clip (3) from center console (2)
			Figure
3	Lift cover (1) at rear and unclip clip (5)
4	Disconnect electrical lines (4) from cover (1)
5	Unclip cover (1) at front from center console (2) and remove
6	Install in the reverse order

Fig 2: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
