Remove/install additional battery - AR54.10-P-0007GQ
MODEL 166 without CODE B03 (ECO start/stop function)

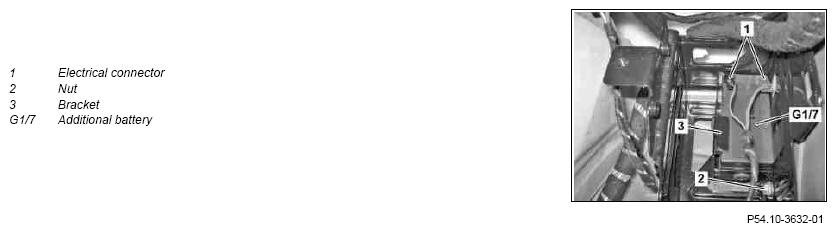

Shown on model 166.024
| Remove/install | |||
| Risk of explosion from explosive gas. Risk of poisoning and caustic burns from swallowing battery electrolyte. Risk of injury through burns to skin and eyes from battery acid or when handling damaged lead-acid batteries | No fires, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable and appropriately marked containers. | AS54.10-Z-0001-01A | |
| Notes on battery | AH54.10-P-0001-01A | ||
| Notes on AGM battery | AH54.10-P-0002-01A | ||
| 1 | Switch off ignition and remove transmitter key or KEYLESS-GO start/stop button from electronic ignition lock control unit | ||
| 2.1 | Remove right side of panel in trunk | MODEL 166.0 without CODE B03 (ECO start/stop function) |
|
| AR68.30-P-4800GQ | |||
| 2.2 | Remove spare tire well panel | MODEL 166.8 without CODE B03 (ECO start/stop function) |
|
| AR68.30-P-4620GQ | |||
| 3 | Separate electrical connectors (1) | ||
| 4 | Unscrew nut (2) | ||
| 5 | Remove bracket (3) | ||
| 6 | Remove additional battery (G17) | ||
| 7 | Install in the reverse order |
