Remove/install stowage compartment - AR68.20-P-2320GQ

MODEL 166

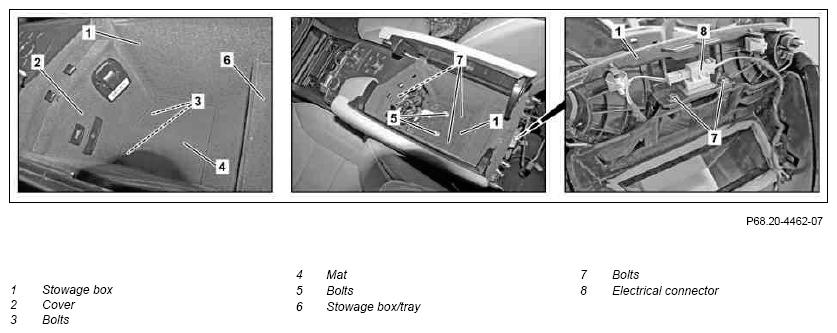

Fig 1: Identifying Stowage Compartment Remove/Install Components - Shown On Vehicle With Code (386)

Courtesy of MERCEDES-BENZ USA

Shown on vehicle with code (386) Comfort telephony

	Remove/install
1	Remove rear center console		AR68.20-P-2020GQ
2	Unlock armrests in stowage box (1) and position upright
3	Remove stowage box/tray (6) and mat (4) from stowage box (1)
4	Remove bolt (3)
5	Lift cover (2) and disconnect electrical lines from cover (2)
6	Remove cover (2)
7	Remove bolts (5)
8	Disconnect electrical connector (8) from stowage box (1) and unclip
9	Remove bolts (7)	Loosely screw in all bolts (7) and then tighten.
10	Remove stowage box (1) upward with armrests
11	Install in the reverse order
