Remove/install ignition lock control cable - AR27.60-P-0122GM

TRANSMISSION 722.610 in MODEL 463.244/245/250

TRANSMISSION 722.630 in MODEL 463.243/246/247/248/249/254

TRANSMISSION 722.637 in MODEL 463.322/323

TRANSMISSION 722.638 in MODEL 463.309/332/333

TRANSMISSION 722.645 in MODEL 463.270/271

TRANSMISSION 722.902 in MODEL 463.303/306/336/340/341/346

TRANSMISSION 722.904 in MODEL 463.202/222/236/237

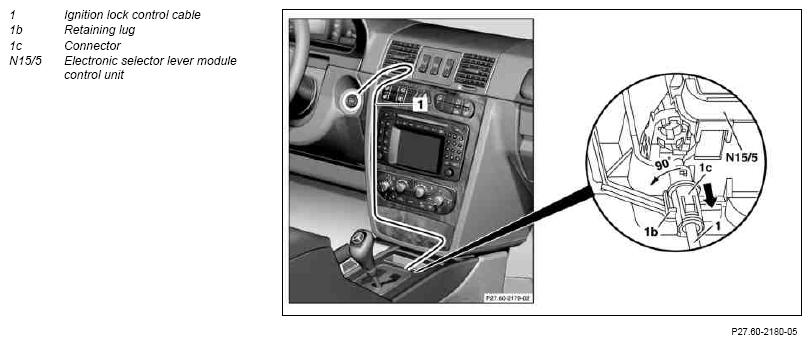

Fig 1: Identifying Ignition Lock Control Cable Components

Courtesy of ABLE BODY CORP.

	Removal/installation
1	Activate Service mode in Tele-Aid emergency call system	Only on model 463.243/244/245/250/309/322/323/332/333 with code (ET2) Tele-Aid car telephone emergency call system, model 463.247/248/254/270 up to 1.04.07 with code (ET2) Tele-Aid car telephone emergency call system	AR82.95-P-0005-03GR
	Notes regarding the Tele-Aid emergency call system	Model 463.243/244/245/250/309/322/323/332/333, model 463.247/248/254/270 up to 1.04.07	AH82.95-P-0001-01GA
	Risk of explosion  caused by oxyhydrogen gas. Risk of poisoning and caustic burns  caused by swallowing battery acid. Risk of injury  caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries	No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and goggles. Only pour battery acid into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
2	Disconnect battery ground line	Except model 463.236/248 with code (979) Special protection version	AR54.10-P-0003G
		Model 463.236/248 with code (979) Special protection version, with code (ZS6) Special protection version FB6, with code (E26) 100 Ah additional battery incl. cutoff relay, model 463.236/248 with code (979) Special protection version, code (ZS7) Special protection version FB7, with code (E26) 100 Ah additional battery incl. cutoff relay	AR54.10-P-0003PM
	Notes on battery		AH54.10-P-0001-01A
3	Remove transmitter key
4	Remove cover below dashboard		AR68.10-P-1500GM
5	Remove electronic transmission control (ETC [EGS]) control unit	Except on model 463 with transmission 722.9	AR27.19-P-1719GA
6	Remove electronic ignition switch control unit	Do not detach the electrical connectors on the electronic ignition switch control unit.	AR80.57-P-1000GM
7	Remove ignition switch cable (1) from the electronic selector lever module control unit (N15/5)	Squeeze the retaining lug (1b) together and push the connector (1c) against the spring force into the electronic selector lever module control unit (N15/5), rotate by 90° (clockwise or counterclockwise) and pull off the ignition lock cable (1).
8	Expose ignition lock control cable (1)
9	Install in the reverse order
10	Activate Service mode in Tele-Aid emergency call system	Only on model 463.243/244/245/250/309/322/323/332/333 with code (ET2) Tele-Aid car telephone emergency call system, model 463.247/248/254/270 up to 1.04.07 with code (ET2) Tele-Aid car telephone emergency call system	AR82.95-P-0005-03GR
	Notes regarding the Tele-Aid emergency call system	Model 463.243/244/245/250/309/322/323/332/333, model 463.247/248/254/270 up to 1.04.07	AH82.95-P-0001-01GA
11	Read out fault memory and erase	Stored faults which may be caused by assembly work, test work, removed lines or a simulation, must be processed and erased in fault memories after completing the work.
	Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A
12	Perform function test on ignition lock	The selector lever may only be capable of being shifted from the "P" position, when the transmitter key is in position "2" and the brake pedal pressed. It should only be possible to remove the transmitter key when the selector lever is in position "P".
