Remove/install radio - AR82.60-P-7502GM
MODEL 463.244 /245 /250 with CODE (EF1) Audio 10 RDS with CODE (EF2) Audio 10 RDS with CD insertion slot
MODEL 463.202 /222 /236 /237 /303 /340 /341 with CODE (EF5) MB Audio 20 CD radio, (NTG 2.5) as of model year 2010
MODEL 463.306 /336 /346 with CODE (EF5) MB Audio 20 CD radio, (NTG 2.5)

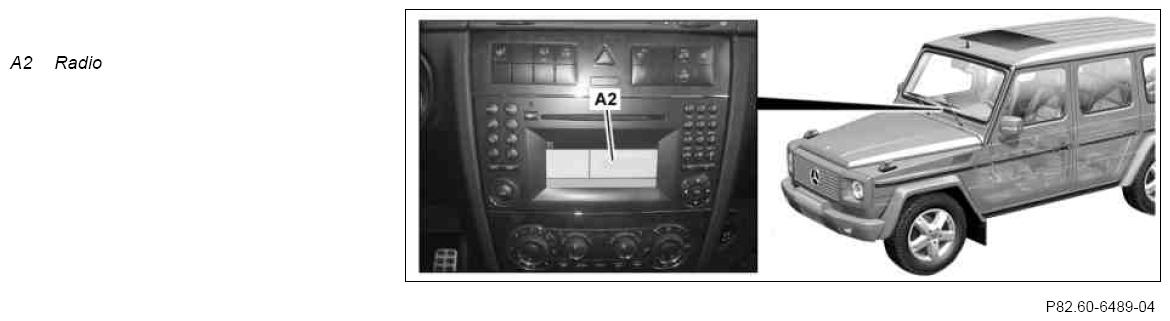

Shows model 463.244
Shows model 463.341
| Remove/install | |||
|---|---|---|---|
| Risk of explosion caused by oxyhydrogen gas. Risk of poisoning and caustic burns caused by swallowing battery acid. Risk of injury caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries | No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable and appropriately marked containers. | AS54.10-Z-0001-01A | |
| Notes on battery | All models | AH54.10-P-0001-01A | |
| 1 | Connect no load current retention unit | Model 463.244/ 245/ 250 Quiescent current / trickle charging gotis://E_15/54_04.0 |
AR54.10-P-1030-07I |
| 2 | Disconnect battery ground line | Model 463.202/ 222/ 237/ 244/ 245/ 250/ 303/ 340/ 341/ 306/ 336/ 346 Model 463.236 except code (979) Special protection version |
AR54.10-P-0003G |
| Model 463.236 with code (979) Special protection version, with code (ZS6) Special protection version FB6, with code (E26) Additional battery 100 Ah incl. cutoff relay Model 463.236 with code (979) Special protection version, with code (ZS7) Special protection version FB7, with code (E26) Additional battery 100 Ah incl. cutoff relay | AR54.10-P-0003PM | ||
| 3 | Remove AAC control and operating unit | Model 463.202/ 222/ 236/ 237/ 303/ 306/ 336/ 340/ 341/ 346 | AR83.40-P-6350GY |
| 4 | Remove upper control panel control unit. | Model 463.202/ 222/ 236/ 237/ 303/ 306/ 336/ 340/ 341/ 346 | AR54.21-P-1262GM |
| 5 | Remove center dashboard cover | Model 463.244/ 245/ 250 | AR68.10-P-3430GM |
| 6 | Unscrew bolts | ||
| 7 | Remove radio (A2) | ||
| 8 | Separate fiber optic cable connector (3) | Cover fiber optic cable |
AR82.95-P-0005-01A |
| Notes on fiber optic cable | AH82.70-P-0001-02A | ||
| 9 | Disconnect connectors (4) | ||
| 10 | Install in the reverse order | ||
| 11 | Read out fault memory and erase Connect STAR DIAGNOSIS and read out fault memory |
AD00.00-P-2000-04A |
