Remove/install operating, display and control unit - AR82.85-P-7472GY
MODEL 463.202 /222 /236 /237, 463.270 /303 /340 /341 as of 2.4.07 with CODE (ET4) COMAND operating and display system up to model year 2010
MODEL 463.247 /248 /254 as of 2.4.07 with CODE (ET4) COMAND operating and display system
MODEL 463.249 as of 1.9.06, 463.271 as of 2.4.07
MODEL 463.202 /222 /236 /237 /270 /303 /341 /340 with CODE (EU1) COMAND APS as of model year 2010
MODEL 463.306 /336 /346 with CODE (EU1) COMAND APS
| Remove/install | |||
|---|---|---|---|
| 1 | Remove AAC pushbutton control unit (N22) | AR83.40-P-6350GY | |
| 2 | Remove upper control panel control unit. | AR54.21-P-1262GM | |

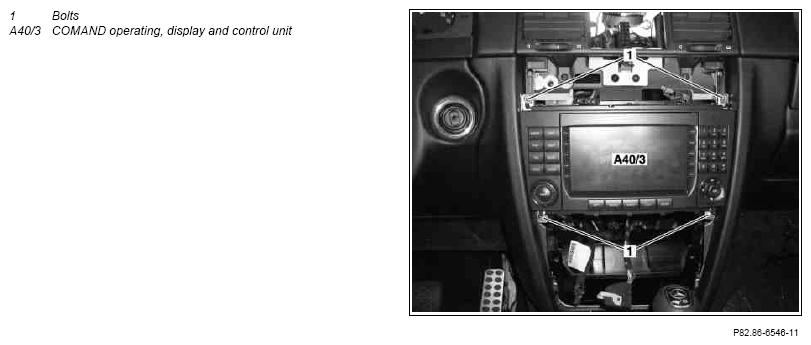

| 3 | Remove bolt (1) | ||
| 4 | Pull COMAND operating, display and controller unit (A40/3) out of center console | ||
| 5 | Disconnect electrical connectors | ||
| 6 | Cover fiber optic cable | AR82.95-P-0005-01A | |
| Notes on fiber optic cable | AH82.70-P-0001-02A | ||
| 7 | Install in the reverse order | ||
| 8 | Read out fault memory and erase | Stored faults which may be caused by removed cables or by a simulation, must be processed and erased in the fault memories after completing the work. |
|
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A |
