Remove/install E-Call emergency call system control unit - AR82.95-P-0008US
MODEL 463.246 /249 /271 up to 1.4.07 with CODE (ET2) TeleAid car phone emergency call system
| Remove/install | |||
|---|---|---|---|
| 1 | Switch on ignition | ||
| 2 | Move front passenger seat into the rearmost position and into the uppermost position | ||

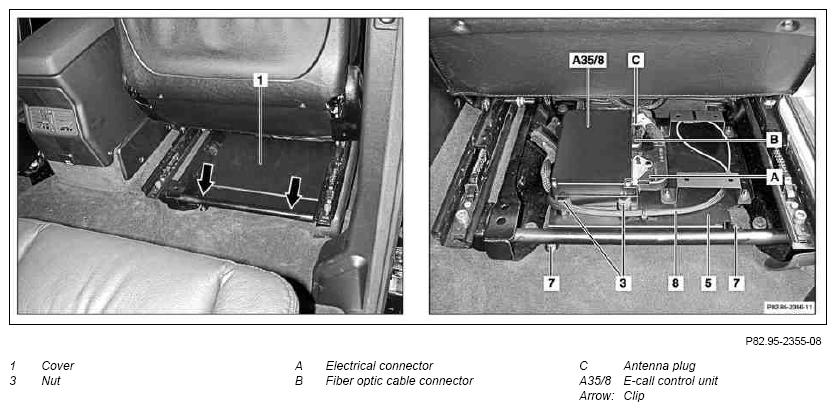

| 3 | Remove clip (2) | ||
| 4 | Move front passenger seat into the foremost position | ||
| 5 | Remove clips (arrows) | ||
| 6 | Remove cover (1) | ||
| 7 | Unscrew nuts (3) | ||
| 8 | Move front passenger seat into the rearmost position | ||

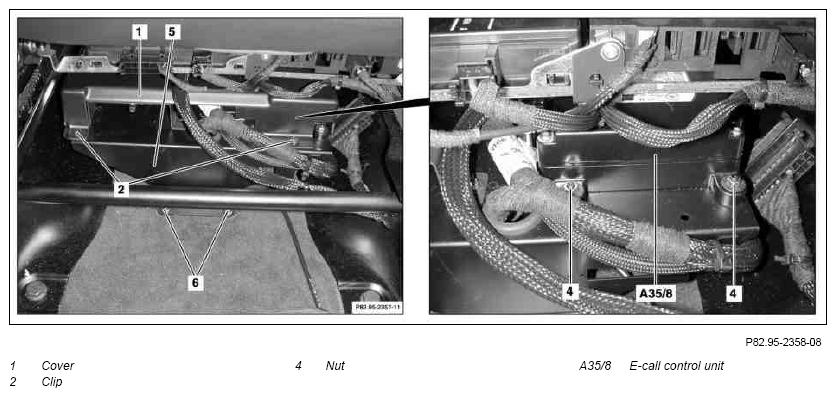

| 9 | Unscrew nuts (4) | ||
| 10 | Move front passenger seat into the foremost position | ||
| 11 | Switch off ignition and remove ignition key | ||
| Risk of explosion caused by oxyhydrogen gas. Risk of poisoning and caustic burns caused by swallowing battery acid. Risk of injury caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries | No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable and appropriately marked containers. | AS54.10-Z-0001-01A | |
| 12 | Disconnect battery ground line | AR54.10-P-0003G | |
| Notes on battery | All models | AH54.10-P-0001-01A | |
| 13 | Pull E-call control unit (A35/8) out of bracket | ||
| 14 | Release electrical connector (A) and disconnect | ||
| 15 | Release fiber optic cable connector (B) and disconnect | ||
| 16 | Cover fiber optic cable | AR82.95-P-0005-01A | |
| Notes on fiber optic cable | AH82.70-P-0001-02A | ||
| 17 | Disconnect antenna plug (C) | ||
| 18 | Remove E-call control unit (A35/8) | ||
| 19 | Install in the reverse order | ||
| 20 | Read out fault memory and erase | Stored faults which can result from cables being disconnected or from simulation during removal and installation or test work, have to be processed and erased in the fault memories after completing the work. |
|
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A | ||
| 21 | Perform basic programming | AR00.19-P-0200P |
