Remove/install side wall lining - AR68.30-P-1450GN

MODEL 463.243 /245 /246 /249 /323 /333 up to 31.5.04

MODEL 463.248 up to 31.5.04 except CODE (979) Special protected version

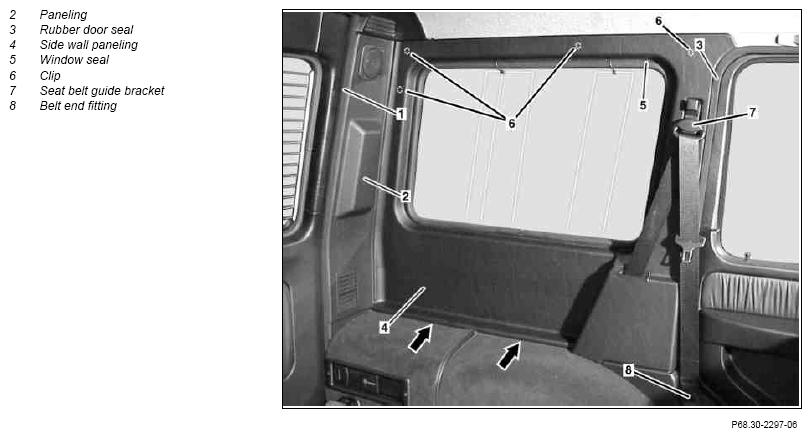

Fig 1: Identifying Side Wall Lining Components

Courtesy of MERCEDES-BENZ USA

	Remove/Install
1.1	Remove longitudinal bench seat	Only on longitudinal bench seat in cargo space	AR91.12-P-1200A
2	Remove paneling (2) from rear pillar		AR68.30-P-4505GK
3	Remove rubber door seal (3) in area of side wall paneling (4).
4	Remove rear seat belt	Only detach the belt end fitting (8) and seat belt guide bracket (7).	AR91.40-P-0681GN
5	Pull side wall paneling (4) out of window seal (5) starting at top	Carefully pull out side wall paneling (4) to prevent damage Do not damage connections in window antennas The side wall paneling (4) is additionally fastened to the body with clips (6).
5			Figure
6	Remove side wall paneling (4) upward	Remove side wall paneling (4) only upward to prevent damage
7	Pull belt out of side wall paneling (4)
8	Install in the reverse order

Fig 2: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
