Remove/install side air vent - AR68.10-P-1100GS

MODEL 463.202 /222 /236 /237 /243 /244 /245 /246 /247 /248 /249 /250 /254 /270 /271 /303 /306 /309 /322 /323 /332 /333 /336/340 /341 /346

Right Air Nozzle

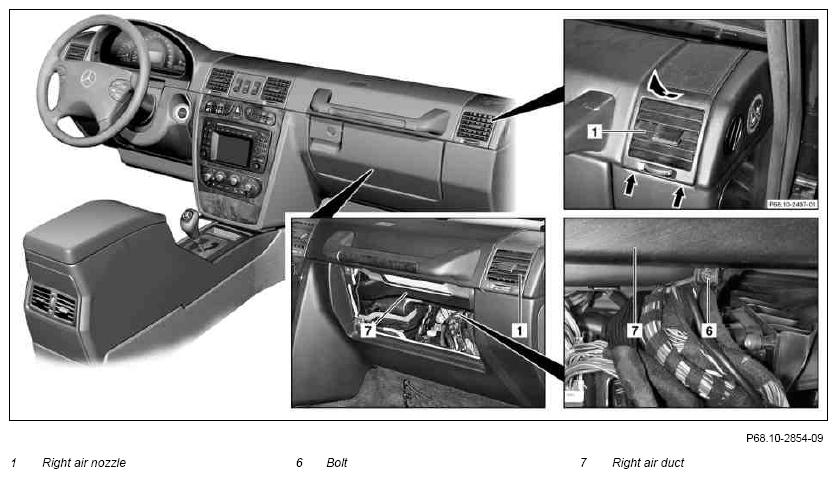

Fig 1: Identifying Right Side Air Vent Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Right Side Air Vent Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove cover below right instrument panel		AR68.10-P-1520GM
2	Remove right side cover from instrument panel	For removal of right air nozzle (1). The cover is inserted.
3	Remove glove compartment		AR68.10-P-1400GM
4	Unscrew bolt (6) from right air duct (7).
5	Remove right air duct (7) from right air vent (1)	The electrical line to the speaker is fastened at the right air duct (7)
6.1	Remove right air nozzle (1)	Mount with clips up to vehicle identification number 124672. Carefully unclip two clips, they can break.
		Long wedge	Figure
6.2	Unscrew mounting screws (2) and remove right air vent (1) upward at an angle	As of vehicle identification number 124673 to 30.6.02, the right air vent (1) is fastened with two mounting screws (2).
6.3	Unscrew mounting screws (2, 5) and remove right air vent (1) upward at an angle	As of 1.7.02, the right air vent (1) is fastened with four mounting screws (2, 5).
7	Change air vent	Only when replacing right air vent (1) up to vehicle identification number 124672, on model 463.244/245/247/248/249/250/254/309/322/323/332/333 with air vent, part number, left/right A 463 680 32 08.
	Mount for side air nozzle changed	Model 463.244/245/247/248/249/250/254/309/322/323/332/333 up to end no. 124672 air vent, part number, left/right A 463 680 32 08	BT68.10-P-1000-01GR
8	Install in the reverse order

Fig 3: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
