Mount for side air nozzle changed - BT68.10-P-1000-01GR

Model 463.244/245/247/248/249/250/254/309/322/323/332/333 up to end no. 124672

MODEL 463.244 /245 /247 /248 /249 /250 /254 /309 /322 /323 /332 /333 ## up to 124672 with air nozzle part number LI/ RE A 463 680 32 08

Modified mounts in side air nozzle

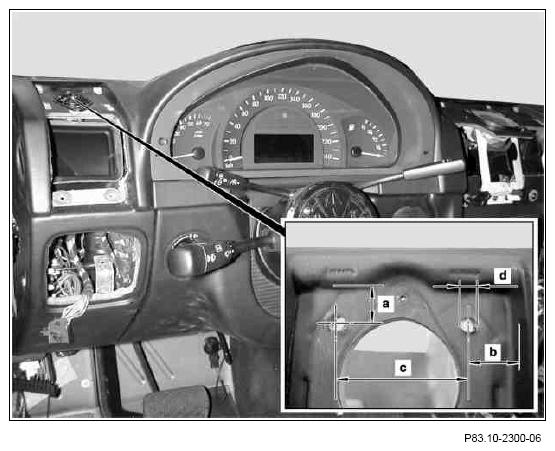

Drill two holes for each air nozzle in instrument panel.

If installed improperly windshield can be damaged

For this purpose it is not necessary to remove the instrument panel.

Use angle drill.

Dimension a 12 mm

Dimension b 16 mm

Dimension b 49 mm

Dimension d 8 mm
