Remove/install side air vent - AR68.10-P-1100GM

MODEL 463.202 /222 /236 /237 /243 /244 /245 /246 /247 /248 /249 /250 /254 /270 /271 /303 /306 /309 /322 /323 /332 /333 /336/340 /341 /346

Left Air Nozzle

Shown on model 463.248 as of 1.7.02

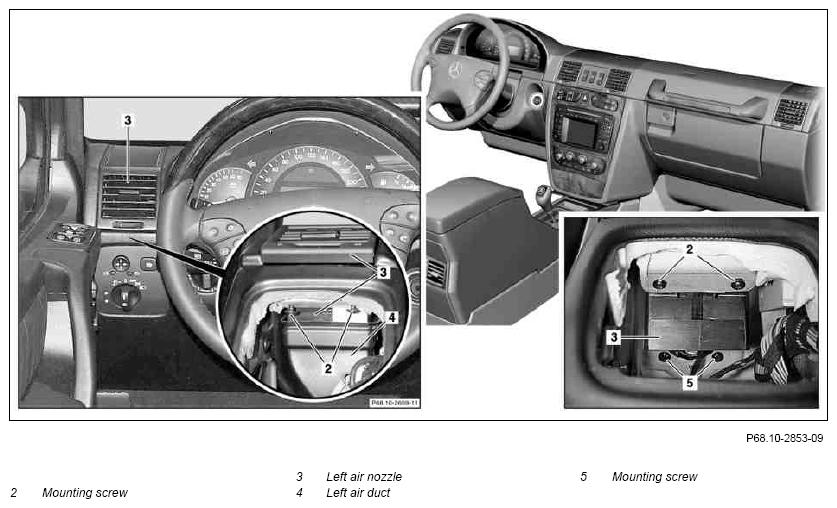

Fig 1: Identifying Left Air Vent Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove light switch module		AR54.25-P-3270GM
2	Remove left air duct (4) from left air vent (3)
3.1	Remove left air nozzle (3)	Only vehicles up to vehicle identification number 124672 The left air vent (3) is fastened with clips. Carefully unclip two clips, they can break.
		Long wedge	Fig 2
3.2	Unscrew mounting screws (2) and remove left air vent (3) upward at an angle	Only vehicles as of vehicle identification number 124673 up to 30.6.02 The left air vent (3) is fastened with two bolts (2).
3.3	Unscrew mounting screws (2, 5) and remove left air vent (3) upward at an angle	Only vehicles as of 1.7.02 The left air vent (3) is fastened with four mounting screws (2, 5).
4	Change air vent	Only when replacing left air vent (3) up to vehicle identification number 124672, on model 463.244/245/247/248/249/250/254/309/322/323/332/333 with air vent, part number, left/right A 463 680 32 08.
	Mount for side air nozzle changed	Model 463.244/245/247/248/249/250/254/309/322/323/332/333 up to end no. 124672 air vent, part number, left/right A 463 680 32 08	BT68.10-P-1000-01GR
5	Install in the reverse order

Fig 2: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
