Remove/install center dashboard cover - AR68.10-P-3430GW

MODEL 463 as of model year 2013/model refinement package 2012

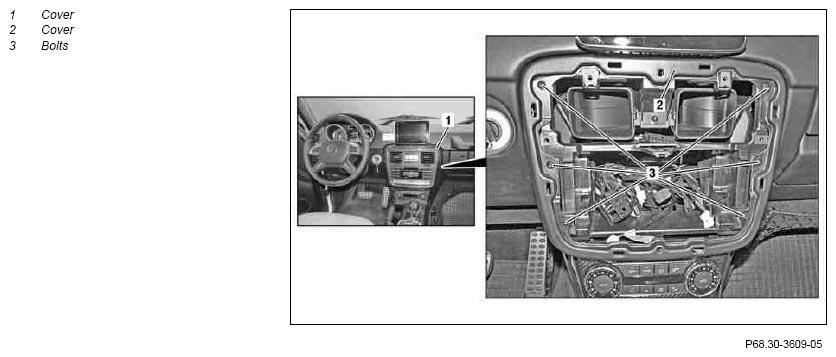

Fig 1: Identifying Covers And Bolts

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Unclip cover (1).
2	Remove center air vent		AR68.10-P-1150GW
3	Remove COMAND controller unit		AR82.85-P-1100GW
4	Remove bolt (3)
5	Pull out cover (2)
6	Install in the reverse order
