Remove/install center air nozzle - AR68.10-P-1150GW

MODEL 463 as of model year 2013/model refinement package 2012

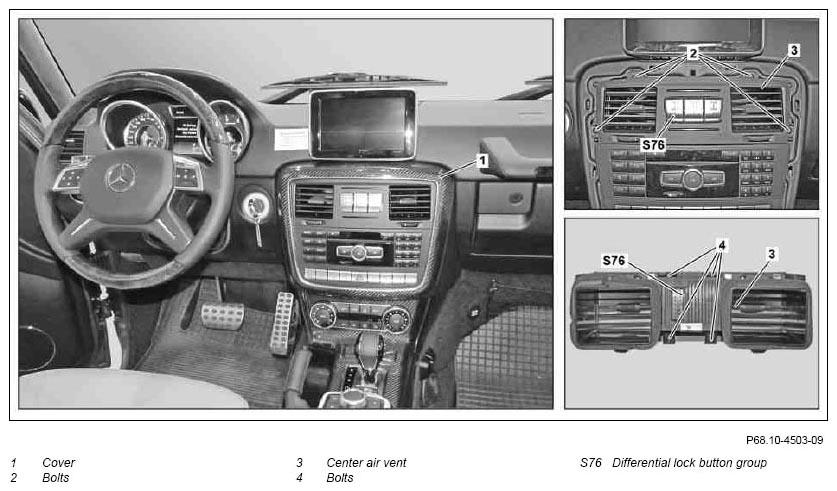

Fig 1: Identifying Center Air Vent Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Unclip cover (1).
2	Remove bolts (2)
3	Disconnect electrical connector from differential lock button group (S76)
4	Remove center air nozzle (3)	Installation:  Ensure that center air vent (3) is seated correctly on air ducts.
5	Unscrew bolts (4) and remove differential lock button group (S76)	When replacing center air vent (3)
6	Install in the reverse order
