Instrument cluster (IC), function - GF54.30-P-0002FL
MODEL 212
Up to 28.02.2013
As of 01.03.2013
Display elements
Instrument cluster, general
The instrument cluster notifies the driver of all dynamic and static driving conditions as well as about the current condition of the systems installed in the vehicle.
In the event of faulty vehicle functions or functions relevant to safety, corresponding warnings are issued via the instrument cluster.
The following displays are incorporated into the instrument cluster in order to be able to convey information to the driver:
- Permanent displays (e.g. vehicle speed, rotational speed, tank contents)
- Indicator lamps (green, yellow or blue) (e.g. turn signal, high beams)
- Warning lamps (red) (e.g. coolant level, brake fluid level)
- Multifunction display (e.g. outside temperature indicator, travel distance display)
The function description for the "Instrument cluster (KI) function" contains the following functions:
- Function sequence for activate instrument cluster
- Function sequence for indicator lamp test
The following functions are also possible; they are described in separate documents:
- Control/warning messages, function
- Display operating conditions, function
- Comfort displays, function
- Trip computer, function
- Settings on workshop level, function
Function sequence for activate instrument cluster
For the following events the background illumination of the multifunction display in the instrument cluster is activated:
- Unlocking vehicle using radio or infrared
- Driver door opened
- Change in circuit 15C status
On vehicles up to 28.02.2013 and on vehicles as of 01.03.2013 with CODE 954 (Avantgarde), the background illumination of the multifunction display and the scale illumination of the instrument cluster are activated when the following events occur:
- Standing lights ON
- Circuit 15R ON
After switching off circuit 15R, the instrument cluster remains active for t = 30 s. If a fault exists this time is increased to t = 120 s.
Additional function requirements for indicator lamp test
- Terminal 15 ON
Function sequence for indicator lamp test
The indicator lamp test serves the function test of certain warning lamps and indicator lamps in the instrument cluster.

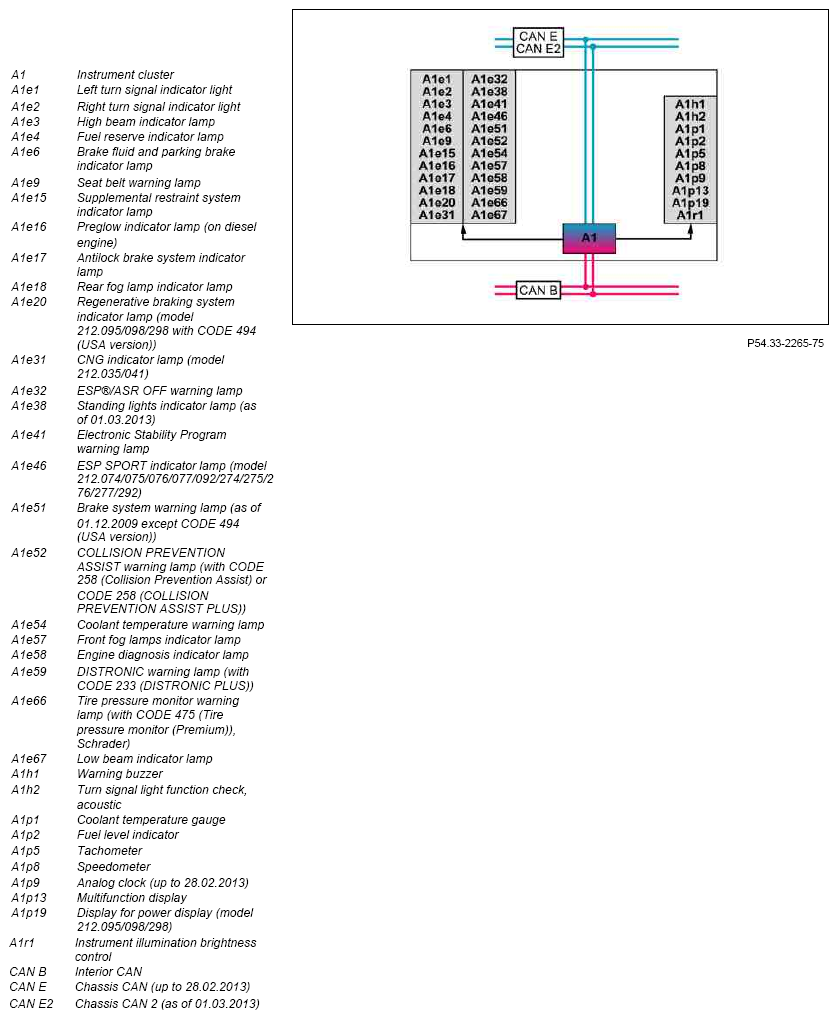

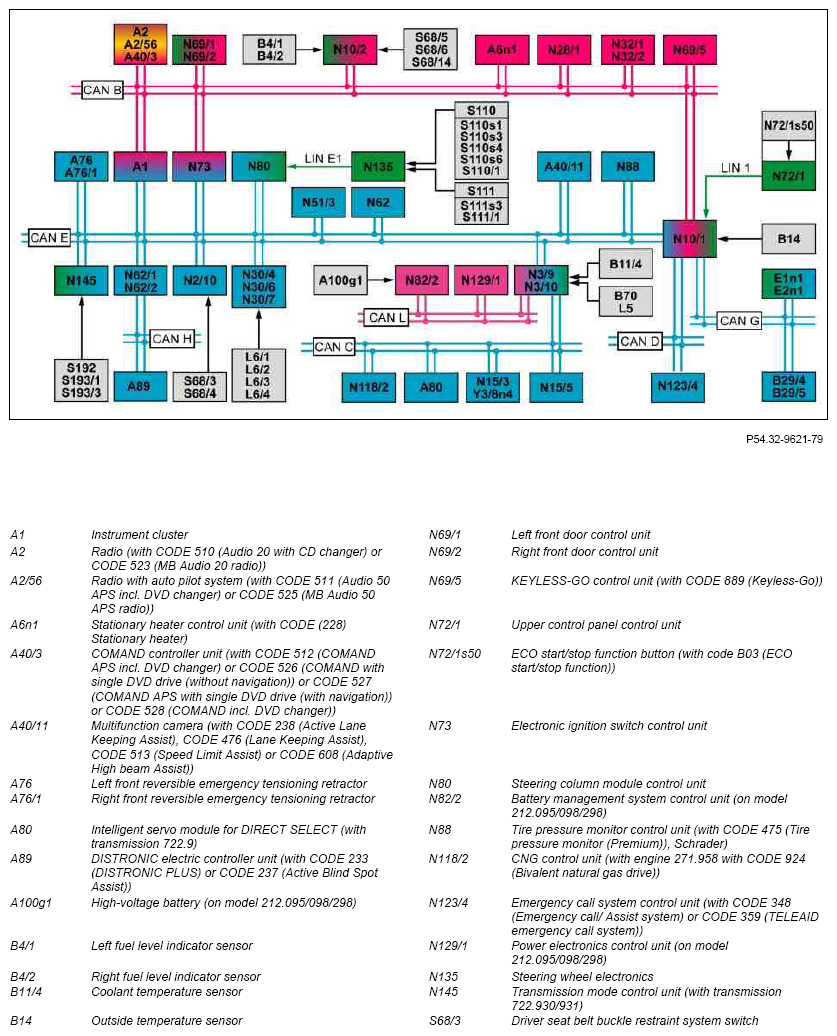

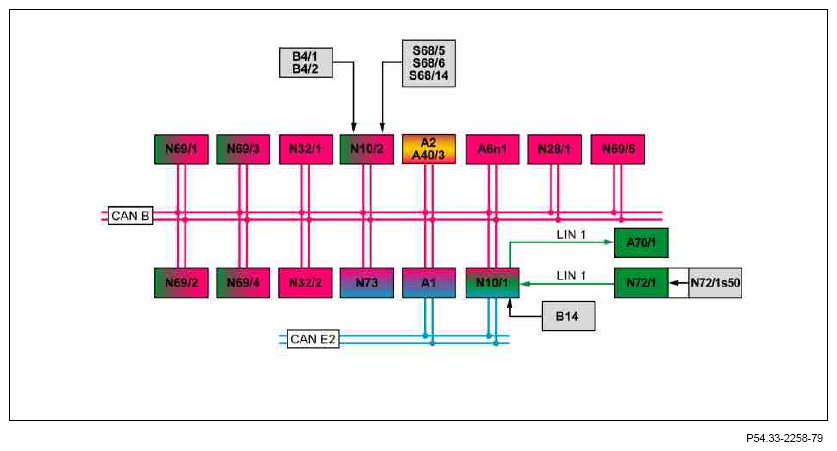

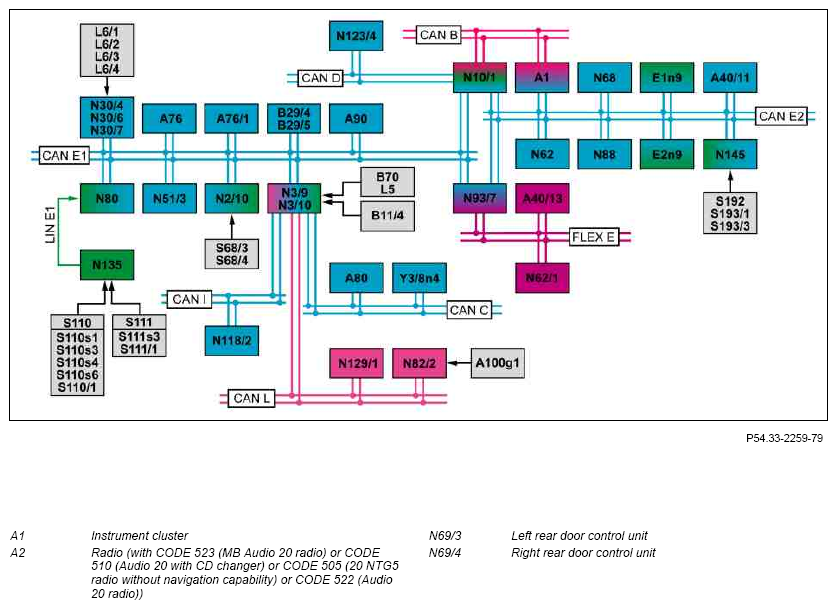

The instrument cluster carries out this test automatically each time circuit 15 is switched on. The circuit 15 status is sent by the electronic ignition lock control unit over the interior CAN to the instrument cluster. The function of the following warning and indicator lamps is checked during the indicator lamp test:
- Fuel reserve indicator lamp
- Brake fluid and parking brake indicator lamp
- Seat belt warning lamp
- Supplemental restraint system indicator lamp
- Antilock brake system indicator lamp
- Regenerative braking system indicator lamp (on model 212.095/098/298 with CODE 494 (USA version))
- ESP®/ASR OFF warning lamp
- Electronic Stability Program warning lamp
- ESP SPORT indicator lamp (model 212.074/075/076/077/092/274/275/276/277/292)
- Brake system warning lamp (as of 01.12.2009 except CODE 494 (USA version))
- COLLISION PREVENTION ASSIST warning lamp (with CODE 258 (Collision Prevention Assist) or CODE 258 (COLLISION PREVENTION ASSIST PLUS))
- Coolant temperature warning lamp
- Engine diagnosis indicator lamp
- DISTRONIC warning lamp (with CODE 233 (DISTRONIC PLUS))
- Tire pressure monitor warning lamp (with CODE 475 (Tire pressure monitor (Premium)), Schrader)
The indicator lamp test is terminated when the engine is started. The function of the following indicator lamps is not checked:
- Left turn signal indicator light
- Right turn signal indicator light
- High beam indicator lamp
- Preglow indicator lamp (on diesel engine)
- Rear fog lamp indicator lamp
- CNG indicator lamp (model 212.035/041)
- Standing lights indicator lamp (as of 01.03.2013)
- Front fog lamps indicator lamp
- Low beam indicator lamp
Detailed information on the warning and indicator lamps are available in the "Instrument cluster component description".
| Instrument cluster (IC), operating information | MODEL 212 up to model year 2014 | GF54.30-P-0002-05FL | |
| MODEL 212 as of model year 2014 | GF54.30-P-0002-05FLM | ||
| Control/warning messages, function | MODEL 212 up to model year 2014 | GF54.30-P-2001FL | |
| MODEL 212 as of model year 2014 | GF54.30-P-2001FLM | ||
| Display operating conditions, function | GF54.30-P-3041FL | ||
| Comfort displays, function | GF54.30-P-3043FL | ||
| Trip computer, function | GF54.30-P-3044FL | ||
| Settings on workshop level, function | GF54.30-P-2020FL |
