Remove/install backup camera - AR54.65-P-0030EW
MODEL 204.0/2/3, 207, 212, 218 with CODE 218 (Rear view camera)

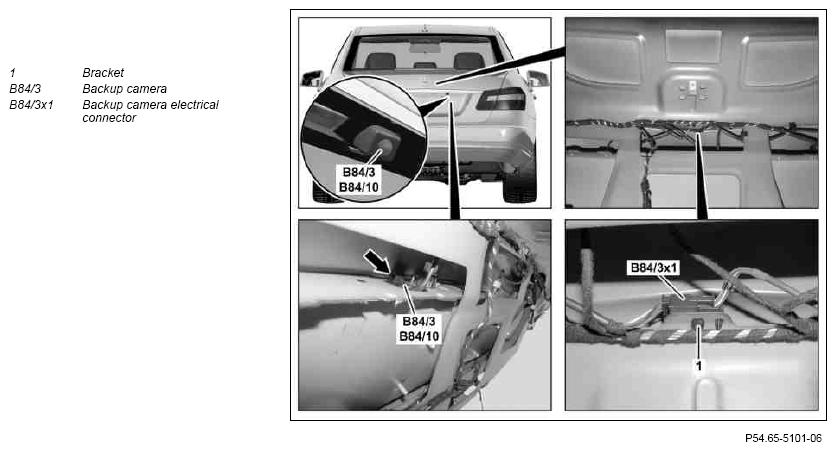

Shown on model 212.0
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1.1 | Remove handle strip from trunk lid | MODEL 204.0/3, 207.3/4, 212.0/1, 218.3 with CODE 218 (Rear view camera) |
|
| MODEL 204.0/3 with CODE 218 (Rear view camera) |
AR88.50-P-5062CW | ||
| MODEL 207.3/4, 212.0/1 with CODE 218 (Rear view camera) |
AR88.50-P-5062EW | ||
| MODEL 218.3 with CODE 218 (Rear view camera) |
AR88.50-P-5062EL | ||
| 1.2 | Remove handle strip for liftgate | MODEL 204.2 with CODE 218 (Rear view camera) |
|
| AR72.20-P-3650CX | |||
| 1.3 | Pull out handle strip for liftgate using extraction hook and remove. | MODEL 212.2, 218.9 with CODE 218 (Rear view camera) |
|
| Figure | |||
| 2 | Remove door lining of liftgate | MODEL 212.2, 218.9 with CODE 218 (Rear view camera) |
|
| MODEL 212.2 with CODE 218 (Rear view camera) |
AR72.20-P-3520ES | ||
| 3 | Detach electrical connection from backup camera (B84/3x1) | ||
| 4 | Release catch hook on coupling of backup camera electrical connector (B84/3x1) and slide coupling of backup camera connector (B84/3x1) from bracket (1) | ||
| 5 | Release notches (arrow) and remove reversing camera (B84/3) outwards from trunk lid or liftgate | If seal is damaged: ↓ Replace seal. |
|
| 6 | Install in the reverse order | ||
| 7 | Calibrate backup camera (B84/3) | MODEL 207, 212 up to model year 2014 with CODE 218 (Rear view camera) with CODE 498 (Japanese version) MODEL 218.3 up to model year 2013 with CODE 218 (Rear view camera) with CODE 498 (Japanese version) |
|
| AR54.65-P-0022GZ | |||
| 8 | Calibrate reversing camera (B84/3) using diagnostic system and calibration device | MODEL 218.9 with CODE 218 (Rear view camera) At the in-service date or after working on the reversing camera (B84/3) or liftgate. |
|
| AD00.00-P-2000-04A | |||
| Fig 2 | |||
| 9 | Initialize reversing camera (B84/3) using diagnostic system | MODEL 207, 212, 218.3 as of model year 2014 with CODE 218 (Rear view camera) During initial startup of reversing camera (B84/3). |
|
| AD00.00-P-2000-04A |
