Remove/install headlamp control unit - AR82.10-P-4660NKB

MODEL 117, 176 as of model year 2016 with CODE 631 (Static LED headlamps, left-hand traffic)

MODEL 117, 176 as of model year 2016 with CODE 632 (Headlamps, LED, static, right-side traffic)

MODEL 246 with CODE 631 (Static LED headlamps, left-hand traffic)

MODEL 246 with CODE 632 (Headlamps, LED, static, right-side traffic)

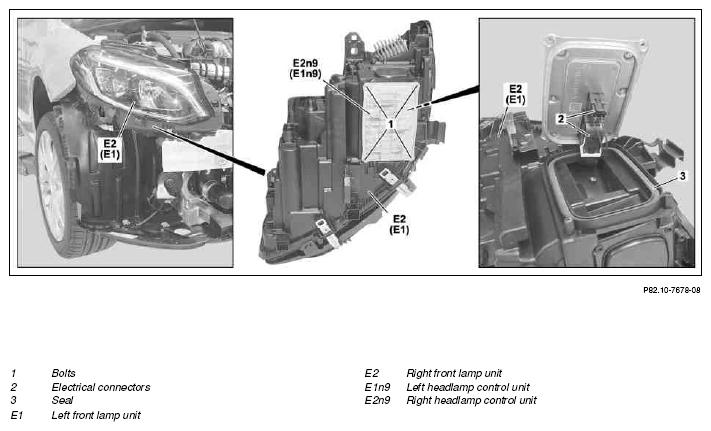

Fig 1: Headlamp Control Unit Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Connect diagnostic system and save basic data from left headlamp control unit (E1n9) or right headlamp control unit (E2n9)	Only when replacing the left headlamp control unit (E1n9) or right headlamp control unit (E2n9).
			AD00.00-P-2000-04A
2	Switch on ignition and store transmitter key outside of transmission range (min. 2 m)
3	Remove front bumper		AR88.20-P-2000NKB
4	Remove bolts (1)
5	Pull out left headlamp control unit (E1n9) or right headlamp control unit (E2n9) until electrical connectors (2) can be disconnected	Correct seating of the seal (3) must be ensured.
6	Release and disconnect electrical connectors (2)
7	Remove the left headlamp control unit (E1n9) or the right headlamp control unit (E2n9)
8	Install in the reverse order
	Initial startup
9	Perform SCN coding of left headlamp control unit (E1n9) or right headlamp control unit (E2n9)	Only after replacing the left headlamp control unit (E1n9) or right headlamp control unit (E2n9).
9			AR54.21-P-0015X
10	Transfer previously stored basic data to left headlamp control unit (E1n9) or right headlamp control unit (E2n9)	Only after replacing the left headlamp control unit (E1n9) or right headlamp control unit (E2n9).
11	Perform initial startup of left headlamp control unit (E1n9) or right headlamp control unit (E2n9)	Only after replacing the left headlamp control unit (E1n9) or right headlamp control unit (E2n9).
