Remove/install radio - AR82.60-P-7502NKB
MODEL 117
MODEL 156
MODEL 176
MODEL 242
MODEL 246
Shown on MODEL 246 with CODE 512 (COMAND APS with DVD changer)
| Notes on avoiding damage to optical fibers during repair work | AH82.60-P-0001-05AK | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Connect Star Diagnosis and perform initial startup of COMAND controller unit (A40/3) or radio | When replacing COMAND controller unit (A40/3) or radio. | |
| AD00.00-P-2000-04A | |||
| 2 | Remove left and right center air vent | AR83.10-P-4503NKB | |

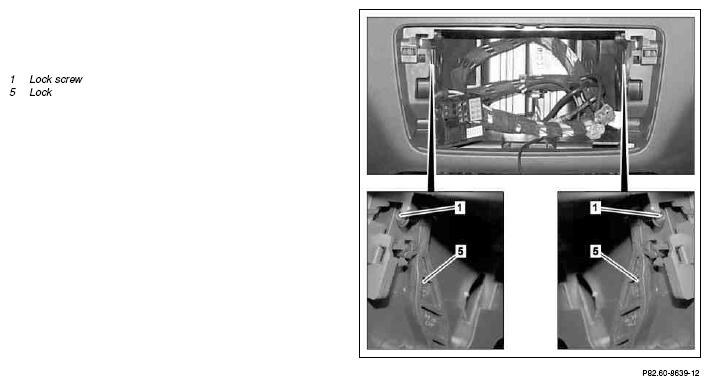

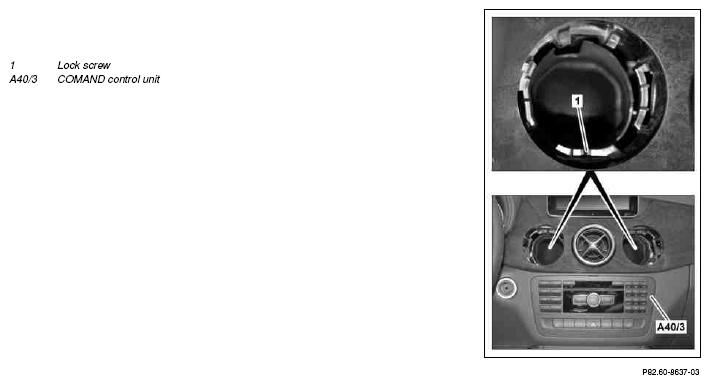

| 3 | Remove lock screws (1) and reposition | ||

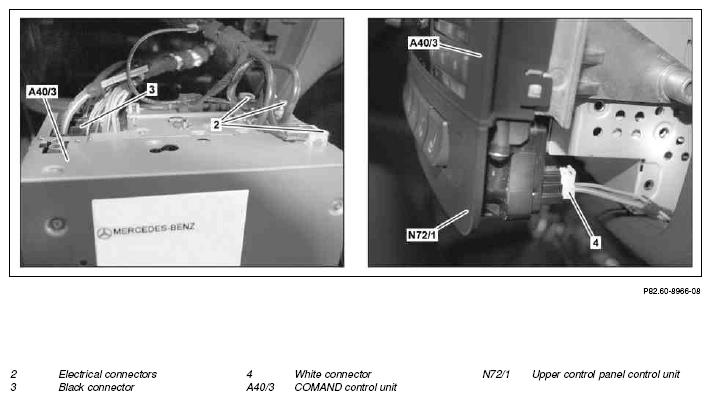

| 4 | Cover center console with a cloth and pull COMAND controller unit (A40/3) or radio out of instrument panel using pulling hooks at lock screws/bolts (1) until white connector (4) is accessible | Fig 4 | |
| 5 | Disconnect white connector (4) from upper control panel control unit (N72/1) | ||
| 6 | Pull COMAND controller unit (A40/3) or radio out of instrument panel using pulling hooks at lock screws/bolts (1) until electrical connectors (2) and black connector (3) on back of unit are accessible | Fig 4 | |
| 7 | Disconnect electrical connectors (2) and black connector (3) and remove COMAND controller unit (A40/3) or radio from vehicle | ||
| 8 | Remove upper control panel control unit (N72/1) | When replacing COMAND controller unit (A40/3) or radio. | AR54.21-P-1262NKB |
| 9 | Install in the reverse order |
