Remove/install center air vent - AR83.10-P-4503NKB

MODEL 117

MODEL 156

MODEL 176

MODEL 242

MODEL 246

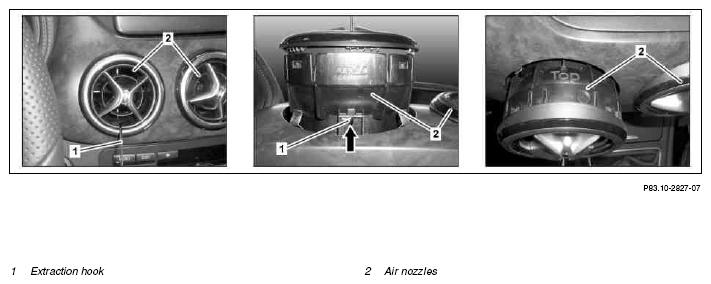

Fig 1: Center Air Vent Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove
1	Pull out corresponding air vent (2) using extraction hook (1)	The opening (arrow) for the Extraction hook (1) is located on bottom of air vents (2). Guide tip of extraction hook (1) through opening (arrow) in air vent (2) and turn 90°.
		Extraction hook	Fig 2
	Install
2	Carefully insert air vent (2) into instrument panel until it locks into place	Ensure that marking "TOP" on air vent (2) is at top.

Fig 2: Extraction Hook (140 589 02 33 00)
