Measure propeller shaft alignment with electronic propeller shaft inclinometer - AR41.10-P-0086LW
Model 205
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Notes on measuring the drive shaft articulation angle | AH41.10-P-0002-01LF | ||
| Remove/install | |||
| 1 | Lift vehicle on vehicle lift | AR00.60-P-1000LW | |
| 2 | Remove engine compartment paneling under transmission | AR61.20-P-1105LW | |
| 3 | Prepare articulation angle meter | AR41.10-P-0086-02LW | |
| 000 588 04 19 00 Inclinometer | WS26.00-P-0140B | ||
| Check | |||
| 4 | Check inclinometer and adjust if necessary | ||
| Measure | |||
| 5 | Measure angle at transmission | AR41.10-P-0085-01LW | |
| 6 | Measure angles at front half and rear half of propeller shaft | AR41.10-P-0085-02LW | |
| 7 | Measure angle at housing of rear axle differential | AR41.10-P-0085-03LW | |

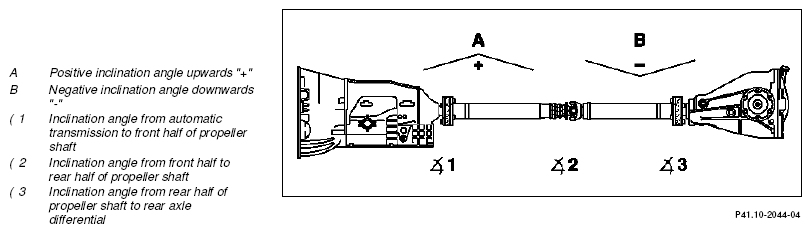

| 8 | Read out all inclination angles (∠1, ∠2, ∠3) from memory of inclinometer and note down | AR41.10-P-0086-01LW | |
| Rear inclination angle of rear propeller shaft relative to rear axle differential (∠3) | *BE41.10-P-1003-01G | ||
| Inclination angle of front propeller shaft relative to rear propeller shaft (∠2) | *BE41.10-P-1002-01G | ||
| Front inclination angle of transmission relative to front propeller shaft (∠1) | *BE41.10-P-1001-01G | ||
| 9 | Correct inclination angle (∠1) at automatic transmission | If the inclination angle (∠1) is out of tolerance. | |
| AR41.10-P-0086-03LW | |||
| *BA22.10-P-1005-03E | |||
| *BA22.10-P-1004-03E | |||
| Front inclination angle of transmission relative to front propeller shaft (∠1) | *BE41.10-P-1001-01G | ||
| 10 | Correct articulation angle (∠2) at propeller shaft intermediate bearing | If the inclination angle (∠2) is out of tolerance. | |
| AR41.10-P-0086-04LW | |||
| *BA41.40-P-1001-01H | |||
| Inclination angle of front propeller shaft relative to rear propeller shaft (∠2) | *BE41.10-P-1002-01G | ||
| 11 | Correct the articulation angle (∠3) at rear axle differential | If the inclination angle (∠2) is out of tolerance. | |
| AR41.10-P-0086-05LW | |||
| *BA35.10-P-1005-01H | |||
| Rear inclination angle of rear propeller shaft relative to rear axle differential (∠3) | *BE41.10-P-1003-01G | ||
| 12 | Carry out a check measurement again each time the inclination angle is corrected | If inclination angles have been corrected. | |
| Rear inclination angle of rear propeller shaft relative to rear axle differential (∠3) | *BE41.10-P-1003-01G | ||
| Inclination angle of front propeller shaft relative to rear propeller shaft (∠2) | *BE41.10-P-1002-01G | ||
| Front inclination angle of transmission relative to front propeller shaft (∠1) | *BE41.10-P-1001-01G | ||
| 13 | Install in the reverse order |
CHECK VALUES FOR PROPELLER SHAFT INCLINATION ANGLE
| Number | Designation | Model 205 (except 205.086/087) | Model 205.086/087 | |
|---|---|---|---|---|
| BE41.10-P-1001-01G | Front inclination angle of transmission relative to front propeller shaft (∠ 1) | ∠° | -0, 50...+0, 67 | -0, 30...+0, 30 |
CHECK VALUES FOR PROPELLER SHAFT INCLINATION ANGLE
| Number | Designation | Model 205 (except 205.086/087) | Model 205.086/087 | |
|---|---|---|---|---|
| BE41.10-P-1002-01G | Inclination angle of front propeller shaft relative to rear propeller shaft (∠ 2) | ∠° | +0, 00...+1, 00 | +0, 10...+0, 50 |
CHECK VALUES FOR PROPELLER SHAFT INCLINATION ANGLE
| Number | Designation | Model 205 (except 205.086/087) | Model 205.086/087 | |
|---|---|---|---|---|
| BE41.10-P-1003-01G | Rear inclination angle of rear propeller shaft relative to rear axle differential (∠3) | ∠° | -1, 00...-0, 17 | -0, 90...-0, 50 |
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)
| Number | Designation | Model 205 with engine 177 | Model 205 with engine 274, 276, 626, 651 | |
|---|---|---|---|---|
| BA22.10-P-1004-03E | Rear engine mount on engine support | Nm | 30 | 30 |
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)
| Number | Designation | Model 205 with engine 177 | Model 205 with engine 274, 276, 626, 651 | |||
|---|---|---|---|---|---|---|
| BA22.10-P-1005-03E | Bolt, rear engine support to frame floor assembly | M10x22 | silver | Nm | 70 | 70 |
| Black | Nm | - | - | |||
| M10x24 | Black | Nm | 50 | 50 | ||
| M10x38 | Nm | - | - | |||
REAR AXLE CARRIER
| Number | Designation | Model 205 | ||
|---|---|---|---|---|
| BA35.10-P-1005-01H | Rear axle differential to front adapter | Rear axle differential (steel) | Nm | 65 |
| Rear axle differential (aluminum) | Nm | 40 | ||
PROPELLER SHAFT INTERMEDIATE BEARING
| Number | Designation | Model 205 | |
|---|---|---|---|
| BA41.40-P-1001-01H | Bolt, propeller shaft center support bearing to frame floor assembly | Nm | 20 |
