Remove/install windshield - AR67.10-P-1000LW

Model 205.0/1/2

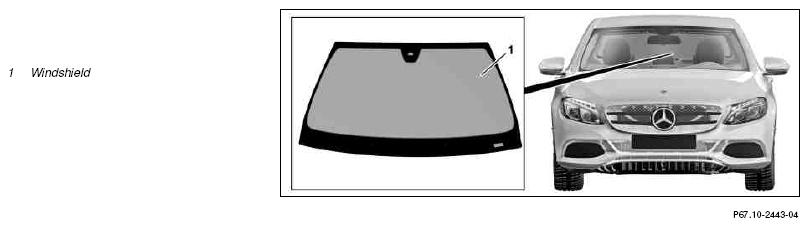

Fig 1: Removing/Installing Windshield

Courtesy of MERCEDES-BENZ USA

	Injury hazard from pinching and crushing, in extreme cases extremities can even be cut off when caught in windshield wiper mechanism.	Always remove ignition key when working on windshield wiper mechanism.	AS82.30-Z-0001-01A
	Notes on removal/installation of windshield		AH67.10-P-1000-01P
	Remove
1	Prepare 1-component adhesive		AR67.10-P-1000-12SX
		repair kit for installing windshields, 1-component adhesive	*BR00.45-Z-1135-02A
		Adapter	Fig 3
2	Remove detachable parts in area of windshield (1)		AR67.10-P-1050LW
3	Remove rain/light sensor	Model 205.0/1/2 with code 345 (Windscreen wiper with rain sensor)	AR82.30-P-7800LF
4	Remove multifunction camera	Model 205.0/1/2 with code 238 (Active lane keeping Assist) Model 205.0/1/2 with code 266 (DISTRONIC PLUS with Steer Assist and Stop & Go Pilot) Model 205.0/1/2 with code 268 (Brake Assist System Plus) Model 205.0/1/2 with code 269 (Brake Assist PLUS with Cross-Traffic Assist (BAS+Q) Model 205.0/1/2 with code 271 (Autonomous brake intervention/pedestrian protection) Model 205.0/1/2 with code 300 (PRE-SAFE® Brake) Model 205.0/1/2 with code 476 (Lane keeping assist) Model 205.0/1/2 with code 513 (Speed Limit Assist) Model 205.0/1/2 with code 608 (Adaptive Highbeam Assist) Model 205.0/1/2 with code 628 (Adaptive Highbeam Assist Plus)	AR54.21-P-3000LF
5	Cover vehicle interior in repair area
	Risk of injury  from cutting wire tearing or becoming hot and from splinters of glass when cutting out bonded windows	Wear protective gloves and safety glasses.	AS67.00-Z-0004-01A
6	Cut out windshield (1) with window removal tool		AR67.10-P-1000-11SX
7	Remove windshield (1) from body with cup suction tools	Helper required.
	Install
8	Open driver-side window	Open side window in driver door until adhesive has cured (idle time). This prevents the windshield (1) from being pressed outwards by the sudden air pressure when the doors are closed.
9	Prepare body flange for installation of window		AR67.10-P-1501-01P
	General notes about painting the body flange in the glazing area		AH98.00-P-9408-06A
		Wear cotton gloves. Ensure that no fingerprints are present in the area of the bonding surface. The bonding surface should be free of dust, oil, grease, wax and other adhesive components or dirt residues. Otherwise the adhesive force of the glue starts to decrease.
		repair kit for installing windshields, 1-component adhesive	*BR00.45-Z-1135-02A
		Primer stick	*BR00.45-Z-1012-07A
10	Prepare windshield (1) for installation		AR67.10-P-1000-03P
		Wear cotton gloves. Ensure that no fingerprints are present in the area of the bonding surface. The bonding surface should be free of dust, oil, grease, wax and other adhesive components or dirt residues. Otherwise the adhesive force of the glue starts to decrease.
		repair kit for installing windshields, 1-component adhesive	*BR00.45-Z-1135-02A
11	Replace rubber window spacers		AR67.10-P-1000-02T
		Remove protective foil from rubber window spacers only on one side.
12	Align windshield (1) in body opening		AR67.10-P-1000-04G
		Helper required. Distance between top edge of window and front edge of roof	*BE67.10-P-1001-01H
		Feeler gauge	Fig 2
13	Remove protective foil from rubber window spacers
14	Apply adhesive material		AR67.10-P-1000-08P
		Wear cotton gloves. Ensure that no fingerprints are present in the area of the bonding surface. The bonding surface should be free of dust, oil, grease, wax and other adhesive components or dirt residues. Otherwise the adhesive force of the glue starts to decrease. Install windshield (1) within 5 min. after applying adhesive. Otherwise the adhesive force of the glue starts to decrease.
		repair kit for installing windshields, 1-component adhesive ↓	*BR00.45-Z-1135-02A
		Adapter	Fig 3
15	Install windshield (1)		AR67.10-P-1503-01P
		Move vehicle only after adhesive has dried. Observe the drying time specified by the adhesive manufacturer. To ensure sufficient strength of the adhesive. The hood must be closed.
	Clean
16	Remove duct tape and cover material from vehicle
17	Clean area to be repaired
18	Install multifunction camera	Model 205.0/1/2 with code 238 (Active lane keeping Assist) Model 205.0/1/2 with code 266 (DISTRONIC PLUS with Steer Assist and Stop & Go Pilot) Model 205.0/1/2 with code 268 (Brake Assist System Plus) Model 205.0/1/2 with code 269 (Brake Assist PLUS with Cross-Traffic Assist (BAS+Q) Model 205.0/1/2 with code 271 (Autonomous brake intervention/pedestrian protection) Model 205.0/1/2 with code 300 (PRE-SAFE® Brake) Model 205.0/1/2 with code 476 (Lane keeping assist) Model 205.0/1/2 with code 513 (Speed Limit Assist) Model 205.0/1/2 with code 608 (Adaptive Highbeam Assist) Model 205.0/1/2 with code 628 (Adaptive Highbeam Assist Plus)	AR54.21-P-3000LF
19	Install rain/light sensor	Model 205.0/1/2 with code 345 (Windscreen wiper with rain sensor)	AR82.30-P-7800LF
20	Install detachable parts in area of windshield (1)		AR67.10-P-1050LW
	Check
21	Check Head-up display and adjust	Model 205.0/1/2 with code 463 (Head-up display)
			AR54.30-P-6401LW

WINDSHIELD

Number	Designation		Model 205
BE67.10-P-1001-01H	Distance between top edge of window and front edge of roof	mm	2, 5 (±1, 0)

Fig 2: Identifying Feeler Gauge (129 589 03 21 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Adapter (000 589 86 63 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1012-07A	Primer stick	A 000 986 27 50
BR00.45-Z-1135-02A	repair kit for installing windshields, 1-component adhesive	A 221 670 81 01
