Remove/install detachable parts when replacing windshield - AR67.10-P-1050LW

Model 205.0/1/2

Model 253

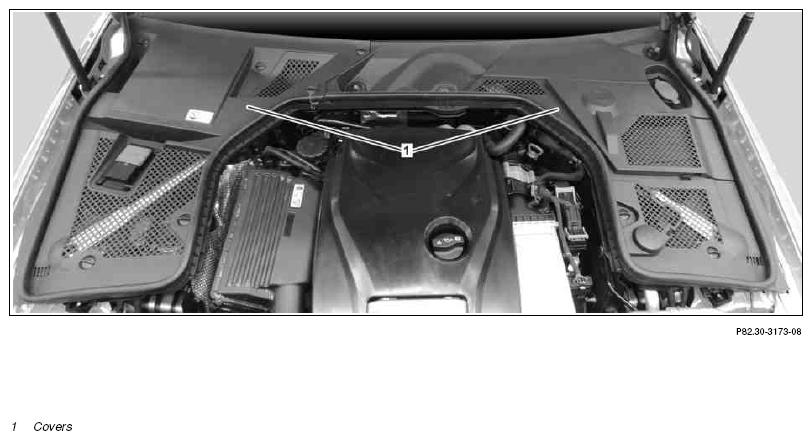

Fig 1: Removing/Installing Covers - Shown On Model 205.0

Courtesy of MERCEDES-BENZ USA

Shown on model 205.0

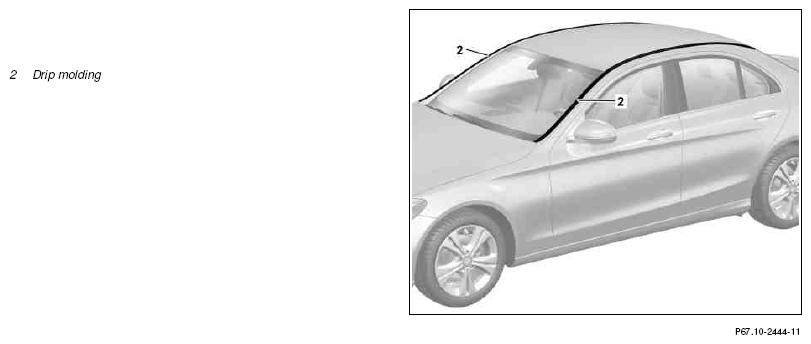

Fig 2: Removing/Installing Drip Molding - Shown On Model 205

Courtesy of MERCEDES-BENZ USA

Shown on model 205.0

	Remove/install
1	Remove left and right wiper arms		AR82.30-P-6100LW
2	Remove covers (1)
3	Unclip left and right drip rail (2) from front toward rear and remove
4	Remove left and right A-pillar paneling		AR68.30-P-4050LW
5	Install in the reverse order
