Remove/install remote trunk closing control unit - AR88.50-P-5300LW
MODEL 205.0/1 with CODE 881 (Remote boot lid closing)
MODEL 205.0/1 with CODE 501 (360° camera) or CODE 965 (Electrical preinstallation for taxi and rental car) or CODE B24 (Remote control for stationary heater)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on sensor system for trunk lid opening/closing | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 |
Connect diagnostic system and perform start-up for trunk lid control unit (N121) | When replacing trunk lid control unit (N121). | AD00.00-P-2000-04B |
| 2 | Remove side paneling in left side of trunk | AR68.30-P-4800LW | |

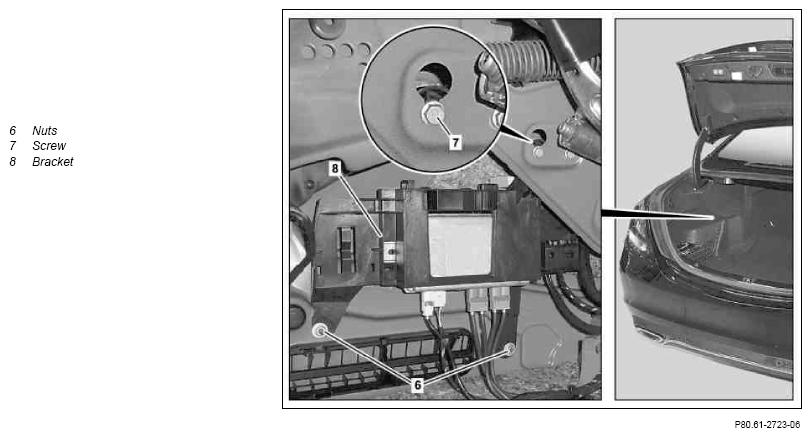

| 3 | Unscrew nuts (6), loosen bolt (7) ad lay bracket (8) down to side with lines connected | MODEL 205.0/1 with CODE 501 (360° camera) with CODE 881 (Remote boot lid closing) MODEL 205.0 with CODE 881 (Remote boot lid closing) with CODE 965 (Electrical preinstallation for taxi and rental car) MODEL 205.0 with CODE 881 (Remote boot lid closing) with CODE B24 (remote control for auxiliary heater) |
|

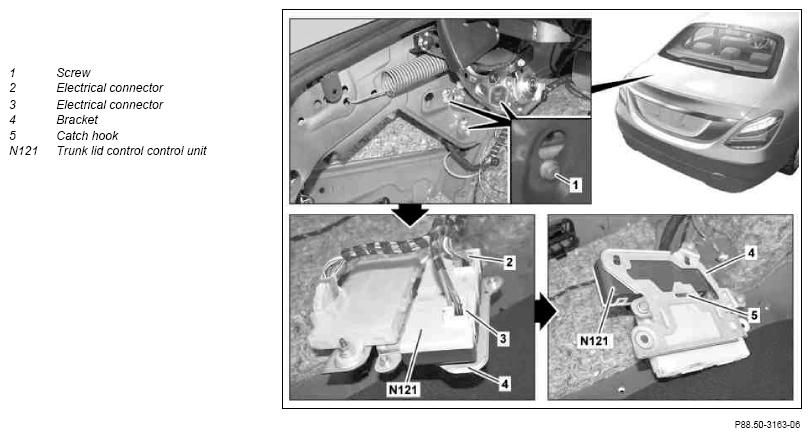

| 4 | Loosen bolts (1), push bracket (4) upward and move out in direction of wheel arch | ||
| 5 | Disconnect electrical connector (2) | ||
| 6 | Disconnect electrical connector (3) | ||
| 7 | Unclip catch hook (5) and remove trunk lid control unit (N121) from bracket (4) | ||
| 8 | Install in the reverse order | ||
| Normalizing | |||
| 9 | Close trunk lid manually. | When reinstalling removed trunk lid control unit (N121). | |
| 10 | Push and hold down driver trunk lid/liftgate control button in door paneling until trunk lid makes contact with upper stop. | When reinstalling removed trunk lid control unit (N121). | |
| 11 | Then actuate driver trunk lid/liftgate control button for 4 s in the "opening" position. | When reinstalling removed trunk lid control unit (N121). | |
| Check | |||
| 12 | Check driver trunk lid/liftgate control button for proper function |
