Remove/install turbocharger with exhaust manifold - AR09.40-P-6025MMV
Engine 276.8 in model 205
MODIFICATION NOTES
| 27.1.15 | Carry out engine oil and filter change, added | Operation step 22.2 |
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Remove/install | |||
| 1 | Drain off coolant | AR20.00-P-1142LW | |
| 2 | Remove upper engine cover | ||
| 3 | Remove air filter housing | AR09.10-P-1150MMV | |
| 4 | Remove soundproofing at both rails | ||

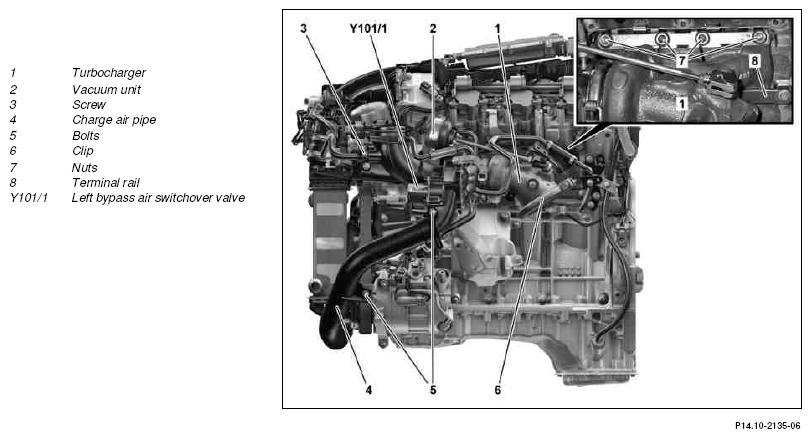

| 5 | Disconnect flange connection between ATL (1) and catalytic converter; to do this open the clamp | AR49.10-P-5500LW | |
| 6 | Unfasten CAT bracket at transmission | AR49.10-P-5500LW | |
| 7 | Remove screw/bolt (3) and detach purge line from charge air pipe of ATL (1) and place to one side | ||
| 8 | Remove the screw/bolts (5) and take out the charge air pipe (4) | AR09.41-P-8620MMV | |
| 9.1 | Disconnect electrical connection at left divert air switchover valve (Y101/1) | When removing the left ATL (1) | |
| 9.2 | Disconnect electrical connection at right bypass air switchover valve | When removing the right ATL (1) | |

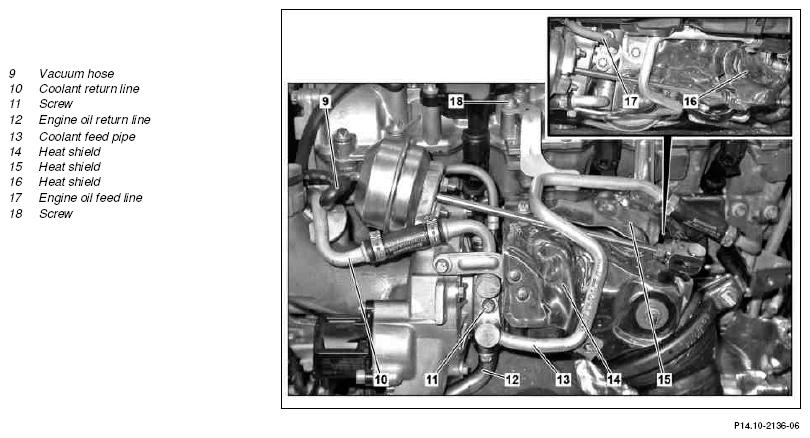

| 10 | Remove screw/bolts (11, 18) and detach coolant feed pipe (13) to ATL (1) and place to one side | AR20.20-P-7440MMV | |
| *BA09.40-P-1008-01W | |||
| 11 | Detach coolant return line (10) at front at ATL (1) from oil filter housing and thermostat housing | AR20.20-P-7440MMV | |
| *BA09.40-P-1008-01W | |||
| 12 | Remove heat shields (14, 15, 16) from ATL (1) | AR20.20-P-7440MMV | |
| *BA09.40-P-1011-01W | |||
| *BA09.40-P-1012-01W | |||
| 13 | Remove engine oil return line (12) and engine oil feed line (17) | AR18.30-P-6850MMV | |
| 14 | Detach vacuum hose (9) at vacuum unit (2) of ATL (1) | ||
| 15 | Unfasten CAT bracket at transmission | *BA49.10-P-1002-02A | |
| 16 | Disconnect flange connection between ATL (1) and exhaust pipe of catalytic converter; to do this open clamp (6) | ||
| *BA49.10-P-1001-02A | |||
| 17 | Unscrew nuts (7) for ATL (1) on cylinder head and remove peg board | ||
| *BA09.40-P-1001-01W | |||
| 18 | Disconnect A/C compressor refrigerant lines at left wheel arch connecting point | When removing from left ATL (1) | |
| AR83.30-P-1760LW | |||
| 19 | Unclip ATL (1) from lower terminal rail (8) and remove upwards | ||
| 20 | Install in the reverse order | ||
| 21.1 | Check engine oil level and correct if necessary | When reusing the ATL (1) | |
| AP18.00-P-1811MP | |||
| 21.2 | Carry out engine oil and filter change | Only when replacing the ATL (1) | |
| AP18.00-P-0101CWZ | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 22 | Perform an engine test run and check engine for leaktightness |
TURBOCHARGER
| Number | Designation | Engine 276.8 | ||
|---|---|---|---|---|
| BA09.40-P-1001-01W | Nut, turbocharger peg board to cylinder head | M8 | Nm | 20 |
TURBOCHARGER
| Number | Designation | Engine 276.8 | |
|---|---|---|---|
| BA09.40-P-1008-01W | Bolt, coolant feed/return line to turbocharger | Nm | 9 |
TURBOCHARGER
| Number | Designation | Engine 276.8 | ||
|---|---|---|---|---|
| BA09.40-P-1011-01W | Bolt/nut for shield attachment | M6 | Nm | 9 |
TURBOCHARGER
| Number | Designation | Engine 276.8 | ||
|---|---|---|---|---|
| BA09.40-P-1012-01W | Bolt, turbocharger shield bracket to cylinder head | M7 | Nm | 14 |
EXHAUST SYSTEM
| Number | Designation | Engine 276 in model 205 | |
|---|---|---|---|
| BA49.10-P-1001-02A | Clamp, exhaust line for catalytic converter to turbocharger | Nm | 17 |
EXHAUST SYSTEM
| Number | Designation | Engine 276 in model 205 | |
|---|---|---|---|
| BA49.10-P-1002-02A | Nut, catalytic converter to catalytic converter bracket | Nm | 22 |
