Remove/install coolant lines - AR20.20-P-7440MMV
Engine 276.8 in model 205
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Remove/install | |||
| 1 | Remove engine compartment paneling | AR61.20-P-1105LW | |
| 2 | Drain off coolant | AR20.00-P-1142LW | |
| 3 | Remove left or right air filter housing | AR09.10-P-1150MMV | |
| 4 | Detach charge air cooler and pull with attached coolant lines to the front | AR09.41-P-6819MMV | |
| 5 | Remove catalytic converter (11, 12) | AR49.10-P-5500LW | |

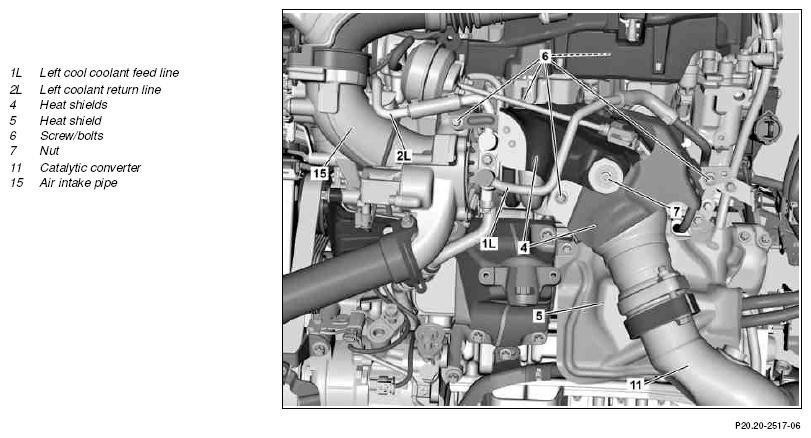

| 6 | Remove screw/bolts (6, 8) and unscrew nuts (7, 10) | *BA09.40-P-1012-01W | |
| *BA09.40-P-1011-01W | |||
| 7 | Remove heat shield (4) and heat shield (14) from holding clamps | ||
| 8 | Lift out heat shield (4, 14) upwards | ||

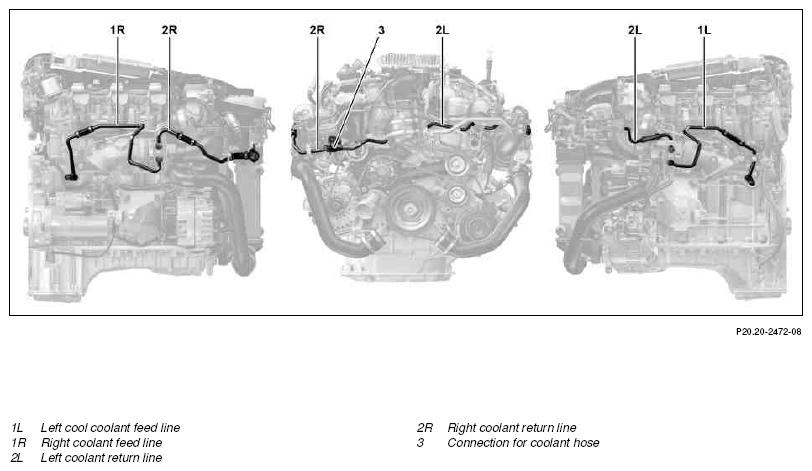

| 9 | Detach right or left coolant return line (2R or 2L) on air intake pipe (13, 15) | ||
| 10 | Detach left coolant return line (2L) on oil filter housing and thermostat housing | ||
| 11 | Detach right or left oil line return line (2R or 2L) at connection for coolant hose (3) | ||
| 12 | Detach right or left coolant return line (2R or 2L) on ATL | ||
| *BA09.40-P-1010-01W | |||
| *BA09.40-P-1008-01W | |||
| Fig 4 | |||
| 13 | Remove right or left coolant return line (2R or 2L) | ||
| 14 | Remove soundproofing on the left rail or the right rail | AR07.03-P-1010MMV | |
| 15 | Remove heat shield (5) on left crankcase | *BA09.40-P-1011-01W | |

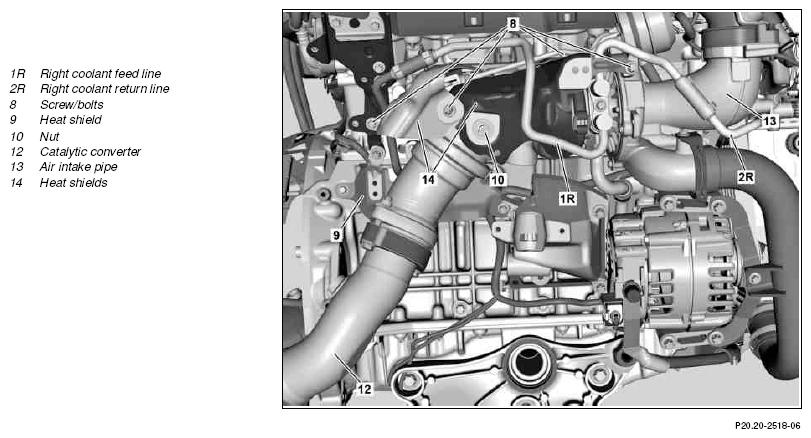

| 16 | Remove heat shield (9) on right crankcase | *BA09.40-P-1011-01W | |
| 17 | Unclip engine wiring harness holder on right cylinder head from low-pressure circuit expansion reservoir | ||
| 18 | Detach right or left coolant feed line (1R or 1L) on crankcase | *BA09.40-P-1009-01W | |
| 19 | Detach right or left coolant feed line (1R or 1L) on ATL | ||
| *BA09.40-P-1010-01W | |||
| *BA09.40-P-1008-01W | |||
| Fig 4 | |||
| 20 | Remove right or left coolant feed line (1R or 1L) | ||
| 21 | Install in the reverse order | ||
| 22 | Check engine cooling system for leaktightness | AR20.00-P-1010LW | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 23 | Carry out engine test run, checking the engine for leaktightness and proper operation |
TURBOCHARGER
| Number | Designation | Engine 276.8 | |
|---|---|---|---|
| BA09.40-P-1008-01W | Bolt, coolant feed/return line to turbocharger | Nm | 9 |
TURBOCHARGER
| Number | Designation | Engine 276.8 | |
|---|---|---|---|
| BA09.40-P-1009-01W | Bolt, coolant feed line to crankcase | Nm | 9 |
TURBOCHARGER
| Number | Designation | Engine 276.8 | ||
|---|---|---|---|---|
| BA09.40-P-1010-01W | Bolt for coolant line attachment | M6 | Nm | 9 |
TURBOCHARGER
| Number | Designation | Engine 276.8 | ||
|---|---|---|---|---|
| BA09.40-P-1011-01W | Bolt/nut for shield attachment | M6 | Nm | 9 |
TURBOCHARGER
| Number | Designation | Engine 276.8 | ||
|---|---|---|---|---|
| BA09.40-P-1012-01W | Bolt, turbocharger shield bracket to cylinder head | M7 | Nm | 14 |
