Remove/install head-up display - AR54.30-P-6400LW
Model 205, 253 with code 463 (Head-up display)
Shown on model 205
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Connect diagnostic system and perform initial startup of heads-up display (A40/12) | When replacing heads-up display (A40/12). | |
| AD00.00-P-2000-04B | |||
| 2 | Remove dashboard | AR68.10-P-1000LW | |
| 3 | Remove insulation from heads-up display (A40/12) | ||

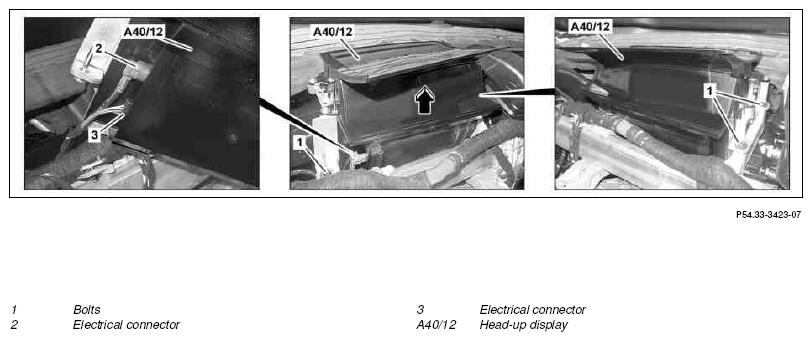

| 4 | Remove bolts (1) | ||
| 5 | Lift up heads-up display (A40/12) far enough to gain access to the electrical connections (2, 3) | ||
| 6 | Detach electrical connections (2, 3) and remove heads-up display (A40/12) | ||
| 7 | Install in the reverse order | ||
| Check | |||
| 8 | Check heads-up display (A40/12) | AR54.30-P-6401LW |
