Remove/install radiator grille - AR88.40-P-4001LW
MODEL 205
MODIFICATION NOTES
| 19.2.14 | "Adjustment values" added | Operation step 8 |

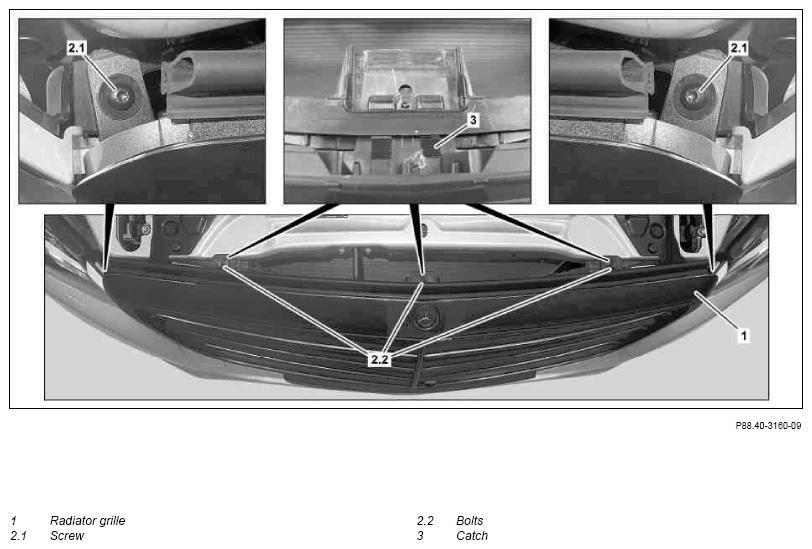

Shown with CODE P23 (EXCLUSIVE Exterior) and CODE 5U3 (AIRPANEL)

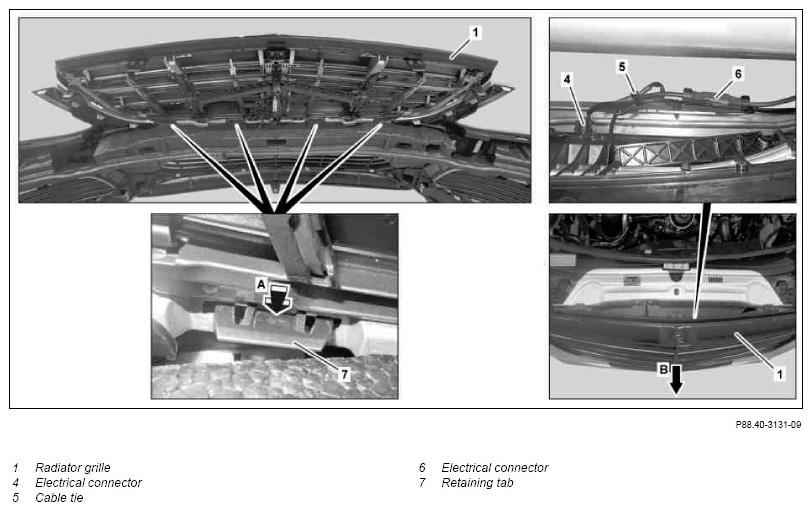

Shown with CODE P23 (EXCLUSIVE Exterior) and CODE 5U3 (AIRPANEL)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove radiator grille (1) | MODEL 205 with CODE 772 (AMG styling package - front spoiler, side skirts and rear apron) MODEL 205 with CODE 773 (AMG exterior carbon trim package) MODEL 205 with CODE P15 (AVANT-GARDE exterior) MODEL 205 with CODE P76 (Standard exterior equipment and appointments) |
|
| AR88.20-P-2050LW | |||
| 2 | Open engine hood | MODEL 205 with CODE P23 (EXCLUSIVE exterior) |
|
| 3 | Remove cable tie (5) | MODEL 205 with CODE P23 (EXCLUSIVE exterior) |
|
| 4 | Disconnect electrical connection (4) | MODEL 205 with CODE 5U3 (AIRPANEL) with CODE P23 (EXCLUSIVE exterior) |
|
| 5 | Disconnect electrical connector (6) | MODEL 205 with CODE 501 (360° camera) with CODE P23 (EXCLUSIVE exterior) |
|
| 6 | Unscrew bolts (2.1 and 2.2) | MODEL 205 with CODE P23 (EXCLUSIVE exterior) |
|
| 7 | Unlock radiator grille (1) from arrests (3) and pull toward front | MODEL 205 with CODE P23 (EXCLUSIVE exterior) |
|
| 8 | Unlock radiator grille (1) from retaining tabs (7) (arrow A) and remove toward front out of bumper (arrow B) | MODEL 205 with CODE P23 (EXCLUSIVE exterior) |
|
| Engine hood to radiator trim/soft nose | *BE60.00-P-1003-01BB | ||
| Protrusion of radiator trim/soft nose, engine hood | *BE60.00-P-1004-01BB | ||
Adjust gap dimensions on radiator grille (1): ↓ Adjust radiator grille (1) |
Figure | ||
| AR88.20-P-2001LW | |||
| 9 | Install in the reverse order | ||
| 10 | Calibrate 360° camera with diagnostic system | MODEL 205 with CODE 501 (360° camera) with CODE P23 (EXCLUSIVE exterior) |
|
| AD00.00-P-2000-04B |
CHECK VALUES FOR GAP DIMENSIONS
| Number | Designation | MODEL 205.0/1 | MODEL 205.2 | ||
|---|---|---|---|---|---|
| BE60.00-P-1003-01BB | Engine hood to radiator trim/soft nose | Dimension "C" | mm | 3, 5 (±1) | 3, 5 (±1) |
| For picture, see | AR60.00-P-0700-01LW | AR60.00-P-0700-01LW | |||
CHECK VALUES FOR GAP DIMENSIONS
| Number | Designation | MODEL 205.0/1 | MODEL 205.2 | ||
|---|---|---|---|---|---|
| BE60.00-P-1004-01BB | Protrusion of radiator trim/soft nose, engine hood | Dimension "C" | mm | 1 (±1) | 1 (±1) |
| For picture, see | AR60.00-P-0700-01LW | AR60.00-P-0700-01LW | |||
