Disassemble/assemble front bumper - AR88.20-P-2050LW

MODEL 205

Shown with CODE P76 (Exterior standard equipment)

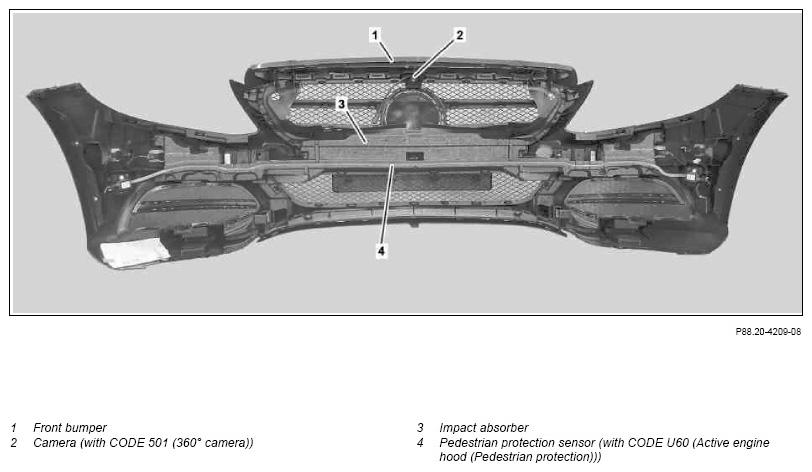

Fig 1: Identifying Front Bumper Disassemble/Assemble Components - Shown With Code P76

Courtesy of MERCEDES-BENZ USA

Shown with CODE P76 (Exterior standard equipment)

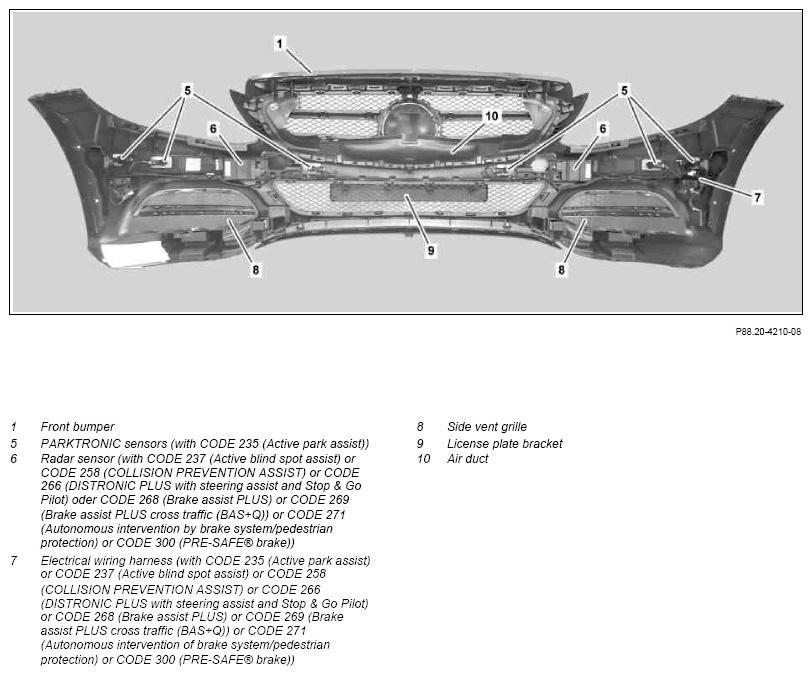

Fig 2: Identifying Front Bumper Disassemble/Assemble Components - Shown With Code P76

Courtesy of MERCEDES-BENZ USA

Shown with CODE P76 (Exterior standard equipment)

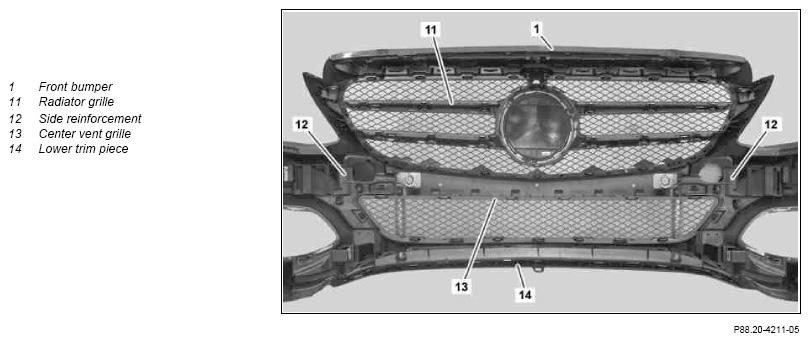

Fig 3: Identifying Front Bumper Disassemble/Assemble Components - Shown With Code P76

Courtesy of MERCEDES-BENZ USA

MODEL 205 with CODE 772 (AMG optical package, front spoiler, side rocker or rear skirt) or with CODE 773 (AMG Carbon Exterior package) or with CODE P90 (AMG Exterior), shown on MODEL 205.087 with CODE 773 (AMG Carbon Exterior package)

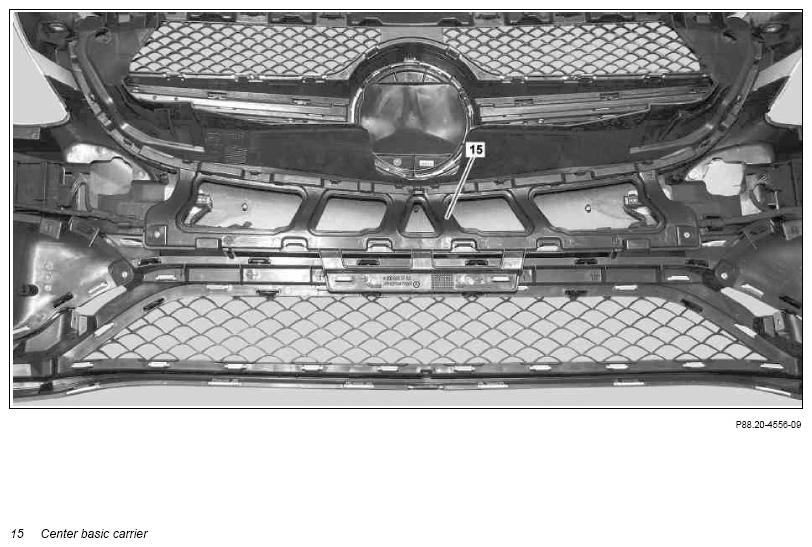

Fig 4: Identifying Center Basic Carrier

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Disassemble/assemble
1	Remove front bumper (1)		AR88.20-P-2000LW
2	Remove camera (2) with holder	MODEL 205 with CODE 501 (360° camera)
			AR54.30-P-3001LW
3.1	Remove impact absorber (3)	MODEL 205 without CODE U60 (Active Bonnet (Pedestrian protection))
	General information on the impact absorber		AH88.20-P-1000-01A
3.2	Remove pedestrian protection sensors (4) with impact absorber (3)	MODEL 205 with CODE U60 (Active Bonnet (Pedestrian protection))
			AR91.60-P-0950LW
4	Remove air duct (10)
5	Remove center basic carrier (15)	MODEL 205 with CODE 772 (AMG styling package - front spoiler, side skirts and rear apron) MODEL 205 with CODE 773 (AMG exterior carbon trim package) MODEL 205 with CODE P90 (AMG exterior)
6	Remove Parktronic sensors (5) from front bumper (1)	MODEL 205 with CODE 235 (Active Parking Assist)
			AR54.65-P-0001LW
		Do not disconnect electrical connectors.
7	Remove radar sensor (6) from front bumper (1)	MODEL 205 with CODE 237 (Active Blind Spot Assist) MODEL 205 with CODE 258 (COLLISION PREVENTION ASSIST) MODEL 205 with CODE 266 (DISTRONIC PLUS with Steer Assist and Stop & Go Pilot) MODEL 205 with CODE 268 (Brake Assist System Plus) MODEL 205 with CODE 269 (Brake Assist PLUS with Cross-Traffic Assist (BAS+Q) MODEL 205 with CODE 271 (Autonomous brake intervention/pedestrian protection) MODEL 205 with CODE 300 (PRE-SAFE® Brake)
			AR30.30-P-1210LW
		Do not disconnect electrical connectors.
8	Remove electric cable harness (7)	MODEL 205 with CODE 235 (Active Parking Assist) MODEL 205 with CODE 237 (Active Blind Spot Assist) MODEL 205 with CODE 258 (COLLISION PREVENTION ASSIST) MODEL 205 with CODE 266 (DISTRONIC PLUS with Steer Assist and Stop & Go Pilot) MODEL 205 with CODE 268 (Brake Assist System Plus) MODEL 205 with CODE 269 (Brake Assist PLUS with Cross-Traffic Assist (BAS+Q) MODEL 205 with CODE 271 (Autonomous brake intervention/pedestrian protection) MODEL 205 with CODE 300 (PRE-SAFE® Brake)
9	Remove side vent grille (8)	Mounting wedge	Figure
10	Remove license plate bracket (9)
11	Remove radiator grille (11)	Mounting wedge	Figure
12	Remove lower trim piece (14)	Mounting wedge	Figure
13	Detach side reinforcements (12) in area of center vent grille (13)	Mounting wedge	Figure
14	Remove center vent grille (13)	Mounting wedge	Figure
15	Assemble in the reverse order

Fig 5: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
