Remove/install radar sensor - AR30.30-P-1210LW
Model 205, 253 with code 237 (Active Blind Spot Assist)
Model 205, 253 with code 258 (COLLISION PREVENTION ASSIST)
Model 205, 253 with code 266 (DISTRONIC PLUS with Steer Assist and Stop & Go Pilot)
Model 205, 253 with code 268 (Brake Assist System Plus)
Model 205, 253 with code 269 (Brake Assist PLUS with Cross-Traffic Assist (BAS+Q)
Model 205, 253 with code 271 (Autonomous brake intervention/pedestrian protection)
Model 205, 253 with code 300 (PRE-SAFE® Brake)

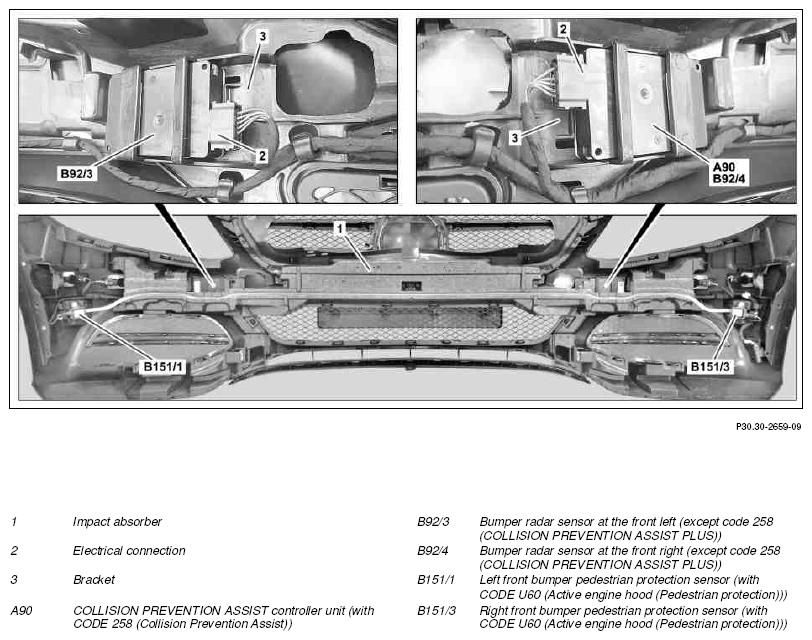

Shown on model 205 with code U60 (Active engine hood (pedestrian protection))
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on preventing damage to electronic components due to a magnetic tool | AH54.00-P-0002-01A | ||
| Remove/install | |||
| 1 | Remove front bumper | AR88.20-P-2000LW | |
| 2.1 | Remove impact absorber (1) | Model 205, 253 with code 237 (Active Blind Spot Assist) except code U60 (Active Bonnet (Pedestrian protection)) Model 205, 253 with code 258 (COLLISION PREVENTION ASSIST) except code U60 (Active Bonnet (Pedestrian protection)) Model 205, 253 with code 266 (DISTRONIC PLUS with Steer Assist and Stop & Go Pilot) except code U60 (Active Bonnet (Pedestrian protection)) Model 205, 253 with code 268 (Brake Assist System Plus) except code U60 (Active Bonnet (Pedestrian protection)) Model 205, 253 with code 269 (Brake Assist PLUS with Cross-Traffic Assist (BAS+Q) except code U60 (Active Bonnet (Pedestrian protection)) Model 205, 253 with code 271 (Autonomous brake intervention/pedestrian protection) except code U60 (Active Bonnet (Pedestrian protection)) Model 205, 253 with code 300 (PRE-SAFE® Brake) except code U60 (Active Bonnet (Pedestrian protection)) |
|
| General information on the impact absorber | AH88.20-P-1000-01A | ||
| 2.2 | Unfasten impact absorber (1) and place to one side with attached left front bumper pedestrian protection sensor (B151/1) right front bumper pedestrian protection sensor (B151/3) | Model 205, 253 with code 237 (Active Blind Spot Assist) with code U60 (Active Bonnet (Pedestrian protection)) Model 205, 253 with code 258 (COLLISION PREVENTION ASSIST) with code U60 (Active Bonnet (Pedestrian protection)) Model 205, 253 with code 266 (DISTRONIC PLUS with Steer Assist and Stop & Go Pilot) with code U60 (Active Bonnet (Pedestrian protection)) Model 205, 253 with code 268 (Brake Assist System Plus) with code U60 (Active Bonnet (Pedestrian protection)) Model 205, 253 with code 269 (Brake Assist PLUS with Cross-Traffic Assist (BAS+Q) with code U60 (Active Bonnet (Pedestrian protection)) Model 205, 253 with code 271 (Autonomous brake intervention/pedestrian protection) with code U60 (Active Bonnet (Pedestrian protection)) Model 205, 253 with code 300 (PRE-SAFE® Brake) with code U60 (Active Bonnet (Pedestrian protection)) |
|
| General information on the impact absorber | AH88.20-P-1000-01A | ||
| Notes on pedestrian protection sensor | AH91.60-P-0001-01A | ||
| 3 | Disconnect electrical connection (2) on front left bumper radar sensor (B92/3) or on front right bumper radar sensor (B92/4) or on the COLLISION PREVENTION ASSIST controller unit (A90) | ||
| 4 | Unlock registered owner (3) and remove front left bumper radar sensor (B92/3) or front right bumper radar sensor (B92/4) or COLLISION PREVENTION ASSIST controller unit (A90) | ||
| 5 | Install in the reverse order | ||
| 6 | Perform a commissioning using a diagnostic system and read out fault memory | ||
| AD00.00-P-2000-04B |
