Remove/install crank window in rear door - AR72.12-P-1910LW
Model 205.0/1/2
Model 253
Shown on model 205.0
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Risk of injury from contusions to hands if window glass is not secured | Secure window to prevent it from falling down. | AS67.00-Z-0002-01A | |
| Remove | |||
| 1 | Remove door lining from left and right rear door | AR72.12-P-1010LW | |
Do not expose electrical lines and electrical connectors high tractive force. This can lead to contact problems and discontinuity. |
|||
| 2 | Detach door frame paneling (2) approx. 40 cm in area of B-pillar starting at bottom | ||
| 3 | Detach inner sealing rail (3) approx. 40 cm starting at window frame | Carefully lift inner sealing rail (3) out of bead on inner door panel. Otherwise the inner sealing rail (3) can deform and must be replaced. |
|

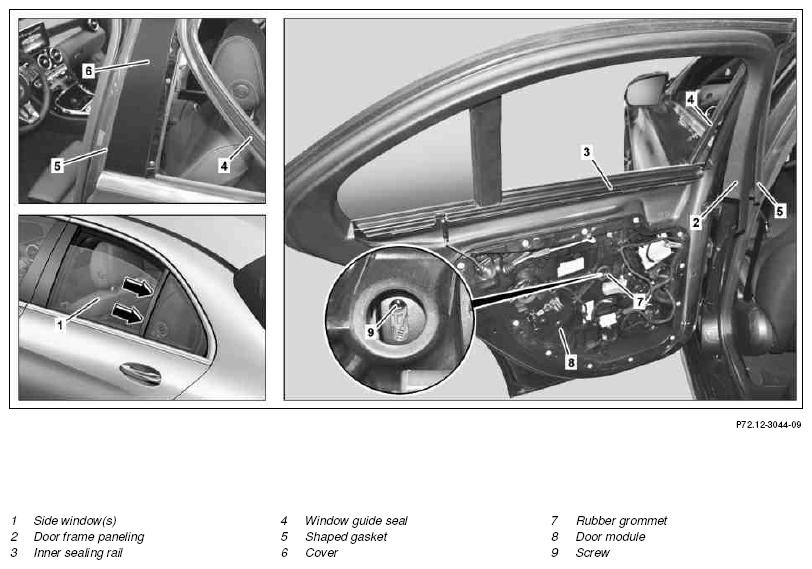

| Figure | |||
| 4 | Detach window guide seal (4) and profile gasket (5) in area of B-pillar | AR72.12-P-1911LW | |
| 5 | Remove cover (6) | ||
| 6 | Remove rubber grommet (7) from door module (8) | ||
| 7 | Move side window (1) to service position so that bolt (9) is accessible through assembly opening in door module (8) | ||
| 8 | Disconnect electrical connectors from left rear door control unit and right rear door control unit in working area | ||
| 9 | Unfasten screw/bolt (9) | ||
| 10 | Remove side window (1) upward from window channel in rear door | ||
| Install | |||
| 11 | Move side window (1) into window channel from top in direction of window divider (arrows) under slight pressure until it makes contact in mount. | ||
| 12 | Tighten screw/bolt (9) | *BA67.30-P-1001-01B | |
| 13 | Install rubber grommet (7) into door module (8) | ||
| 14 | Connect electric wiring harness of removed door lining to left rear door control unit and right rear door control unit | ||
| 15 | Move side window (1) down | ||
| 16 | Install cover (6), window guide seal (4) and profile seal (5) | AR72.12-P-1911LW | |
| 17 | Moisten rubber seal on inner sealing rail (3) with lubricant | Lubricant, rubber assembly 1 l | *BR00.45-Z-1010-06A |
| 18 | Fasten inner sealing rail (3) | ||
| 19 | Fasten door frame paneling (2) | ||
| 20 | Install door lining on left and right rear door | AR72.12-P-1010LW |
SIDE WINDOW(S)
| Number | Designation | Model 205 | Model 253 | |
|---|---|---|---|---|
| BA67.30-P-1001-01B | Bolt, side window to window lifter | Nm | 9 | 6 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1010-06A | Lubricant, rubber assembly 1 l | A 000 989 03 67 |
