Remove/install sealing for crank window on rear door - AR72.12-P-1911LW

Model 205.0/1/2

Model 253

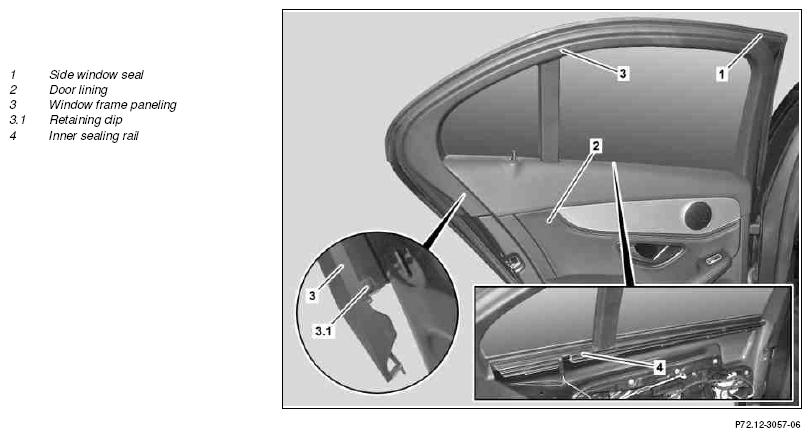

Fig 1: Identifying Crank Window Sealing Remove/Install Components (1 Of 3)
G10134309Courtesy of MERCEDES-BENZ USA

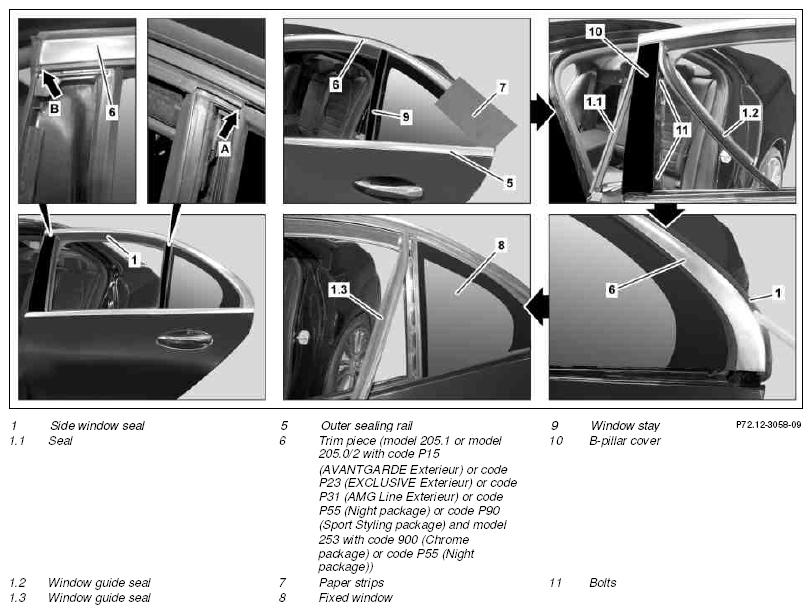

Fig 2: Identifying Crank Window Sealing Remove/Install Components (2 Of 3)
G10134310Courtesy of MERCEDES-BENZ USA

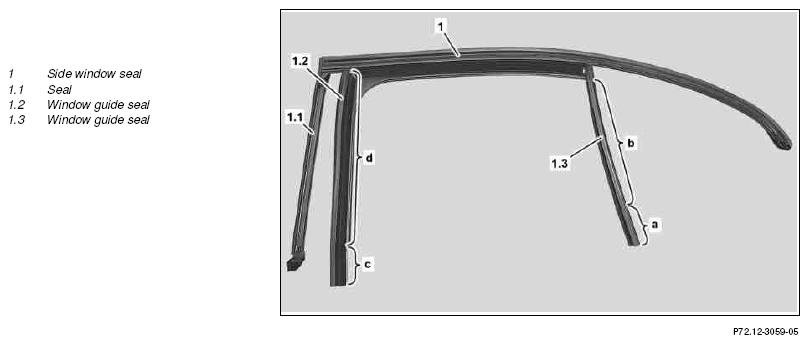

Fig 3: Identifying Crank Window Sealing Remove/Install Components (3 Of 3)
G10134311DANGERREMOVINGIMPORTANTNOTESSPECIAL TOOLNOTESNOTESSPECIAL TOOLSPECIAL TOOLNOTESSPECIAL TOOLINSTALLINGIMPORTANTIMPORTANTIMPORTANTIMPORTANTNOTESIMPORTANTCourtesy of MERCEDES-BENZ USA
DANGER Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. No parts of the body or limbs should be within the operating area when the components are moving. AS00.00-Z-0011-01A
REMOVING Remove
1 Remove door liner (2) from rear door   AR72.12-P-1010LW
2 Remove window frame paneling (3) IMPORTANT The window frame paneling (3) is fastened positively to the window frame and additionally clipped into the window frame with a retaining clip (3.1).
3 Remove inner sealing rail (4) NOTES
Carefully lift inner sealing rail (4) out of bead on inner door panel.
Otherwise the inner sealing rail (4) can deform and must be replaced.
SPECIAL TOOL Mounting wedge Figure
4 Insert strip of paper (7) at rear end of stationary window (8) between outer sealing rail (5) and trim piece (6) Model 205.0/2
with code P15 (AVANTGARDE exterior)
Model 205.0/2
with code P23 (EXCLUSIVE exterior)
Model 205.0/2
with code P31 (AMG Line exterior)
Model 205.0/2
with code P90 (Sports styling package)
Model 205.1
Model 253
with code 900 (Chrome package)
Model 253
with code P55 (Night package)
NOTES
Paper strips (7) are intended to protect the trim piece (6).
Otherwise the trim piece (6) can be scratched.
5 Remove outer sealing rail (5) starting at rear end of stationary window (8) NOTES
Carefully lift outer sealing rail (5) out of inner door panel rabbet using base as aid.
Otherwise the outer sealing rail (5) can deform or the paint be scratched.
SPECIAL TOOL Mounting wedge Figure
6 Carefully detach window divider (9) in upper area from side window seal (1) and remove upward SPECIAL TOOL Mounting wedge Figure
7 Detach seal (1.1) from B-pillar cover (10)
8 Pull out window guide seal (1.2) in area of B-pillar cover (10)
9 Unscrew bolts (11) from B-pillar cover (10)
10 Remove B-pillar cover (10)
11 Lift trim piece (6) out of side window seal (1) starting at rear of stationary window (8) and remove Model 205.0/2
with code P15 (AVANTGARDE exterior)
Model 205.0/2
with code P23 (EXCLUSIVE exterior)
Model 205.0/2
with code P31 (AMG Line exterior)
Model 205.0/2
with code P90 (Sports styling package)
Model 205.1
Model 253
with code 900 (Chrome package)
Model 253
with code P55 (Night package)
NOTES
Carefully lift out trim piece (6).
Otherwise the trim piece (6) can bend and must be replaced.
SPECIAL TOOL Mounting wedge		 Figure
12 Pull out window guide seal (1.3) in are of stationary window (8)
13 Remove side window seal (1) starting at installation location of B-pillar cover (10)
INSTALLING Install
14 Moisten side window seal (1) with lubricant Lubricant, rubber assembly 1 l *BR00.45-Z-1010-06A
15 Install side window seal (1) in window frame starting at upper edge of stationary window (8) IMPORTANT Ensure that side window seal (1) makes firm contact with seal on stationary window (8) (arrow A).
16 Moisten window guide seal (1.3) in assembly area "a" with soapy water
17 Moisten window guide seal (1.3) in assembly area "b" with lubricant Lubricant, rubber assembly 1 l *BR00.45-Z-1010-06A
18 Push window guide seal (1.3) downward into window guide rail
19 Fasten window guide seal (1.3) at stationary window (8) IMPORTANT Ensure that window guide seal (1.3) is seated correctly, particularly in the corner area.
20 Install B-pillar cover (10)
21 Unscrew bolts (11) on B-pillar cover (10)
22 Moisten seal (1.1) with lubricant Lubricant, rubber assembly 1 l *BR00.45-Z-1010-06A
23 Insert seal (1.1) into B-pillar cover (10)
24 Moisten window guide seal (1.2) in assembly area "c" with soapy water
25 Moisten window guide seal (1.2) in assembly area "d" with lubricant Lubricant, rubber assembly 1 l *BR00.45-Z-1010-06A
26 Push window guide seal (1.2) downward into window guide rail
27 Fasten window guide seal (1.2) to B-pillar cover (10) IMPORTANT Ensure that window guide seal (1.2) is seated correctly, particularly in the corner area.
28 Install window separator bar (9) Lubricant, rubber assembly 1 l *BR00.45-Z-1010-06A
29 Moisten profiled section of trim piece (6) and side window cover (1) in assembly area of trim piece (6) with lubricant Model 205.0/2
with code P15 (AVANTGARDE exterior)
Model 205.0/2
with code P23 (EXCLUSIVE exterior)
Model 205.0/2
with code P31 (AMG Line exterior)
Model 205.0/2
with code P90 (Sports styling package)
Model 205.1
Model 253
with code 900 (Chrome package)
Model 253
with code P55 (Night package)
Lubricant, rubber assembly 1 l *BR00.45-Z-1010-06A
30 Install trim piece (6) in side window seal (1) starting at B-pillar cover (10) Model 205.0/2
with code P15 (AVANTGARDE exterior)
Model 205.0/2
with code P23 (EXCLUSIVE exterior)
Model 205.0/2
with code P31 (AMG Line exterior)
Model 205.0/2
with code P90 (Sports styling package)
Model 205.1
Model 253
with code 900 (Chrome package)
Model 253
with code P55 (Night package)
IMPORTANT Ensure that it is seated correctly in front area (arrow B).
31 Fasten strip of paper (7) on trim piece (6) Model 205.0/2
with code P15 (AVANTGARDE exterior)
Model 205.0/2
with code P23 (EXCLUSIVE exterior)
Model 205.0/2
with code P31 (AMG Line exterior)
Model 205.0/2
with code P90 (Sports styling package)
Model 205.1
Model 253
with code 900 (Chrome package)
Model 253
with code P55 (Night package)
NOTES
Paper strips (7) are intended to protect the trim piece (6).
Otherwise the trim piece (6) can be scratched when installing the outer sealing rail (5).
32 Moisten rubber seal on outer sealing rail (5) with lubricant Lubricant, rubber assembly 1 l *BR00.45-Z-1010-06A
33 Install outer sealing rail (5) IMPORTANT The outer sealing rail (5) must be flush with the edge of the door paneling.
34 Moisten rubber seal on inner sealing rail (4) with lubricant Lubricant, rubber assembly 1 l *BR00.45-Z-1010-06A
35 Install inner sealing rail (4)
36 Install window frame paneling (3)
37 Install door lining (2) on rear door   AR72.12-P-1010LW
Fig 4: Identifying Mounting Wedge (110 589 03 59 00)
G07079389Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1010-06A Lubricant, rubber assembly 1 l A 000 989 03 67
