Check condition of additional battery - AR54.10-P-1128NKM
MODEL 117, 156, 176, 242, 246 as of model year 2016 with CODE B03 (ECO start/stop function)
| Risk of explosion from explosive gas. Risk of poisoning and caustic burns from swallowing battery electrolyte. Risk of injury through burns to skin and eyes from battery acid or when handling damaged lead-acid batteries | No fires, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable and appropriately marked containers. | AS54.10-Z-0001-01A | |
| Notes on battery | AH54.10-P-0001-01A | ||
| Notes on AGM battery | AH54.10-P-0002-01A | ||
| Remove | |||

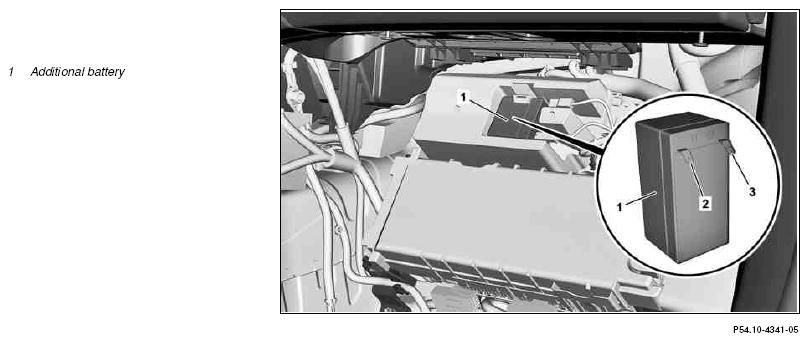

| 1 | Remove additional battery (1) | AR54.10-P-0007NKM | |
| Check | |||
| 2 | Visually inspect additional battery (1) for external leaks | In the event of leakage ↓ Replace additional battery (1) |
|
| 3 | Check additional battery (1) | ||
| 000 588 02 19 00 Battery tester | WS54.00-N-3006B | ||
| If "Charge and check" is shown on display of battery tester ↓ Charge additional battery (1) |
|||
| 4 | Charge additional battery (1) directly at battery terminals | If "Charge and check" is shown on display of battery tester. | |
| 000 588 00 81 00 Charger | WS54.00-P-0037B | ||
| 5 | Check battery again | ||
| 000 588 02 19 00 Battery tester | WS54.00-N-3006B | ||
| If "Charge and check" is shown on display of battery tester ↓ Replace additional battery (1) |
|||
| Install | |||
| 6 | Install additional battery (1) | AR54.10-P-0007NKM |
