Remove/install exhaust manifold with catalytic converter - AR14.10-P-4095W

ENGINE 276 in MODEL 172

MODIFICATION NOTES

14.3.11 Observe tightening procedure for exhaust manifold, added Operation step 19

Left exhaust manifold with CAT

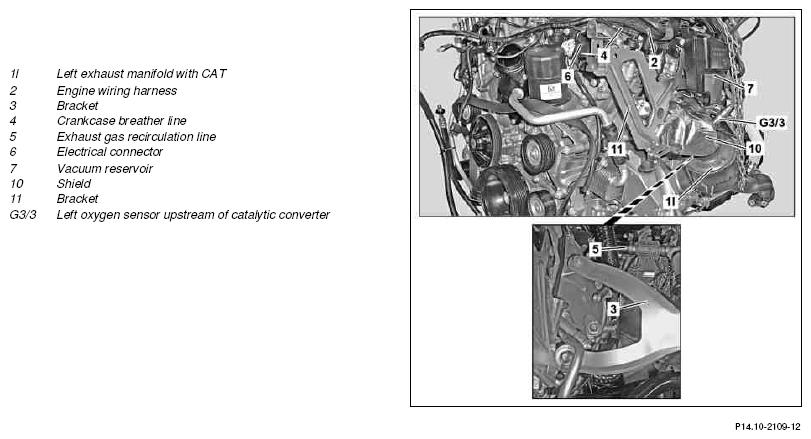

Fig 1: Identifying Left Exhaust Manifold With Catalytic Converter Remove/Install Components (1 Of 2)
G10247844Courtesy of MERCEDES-BENZ USA

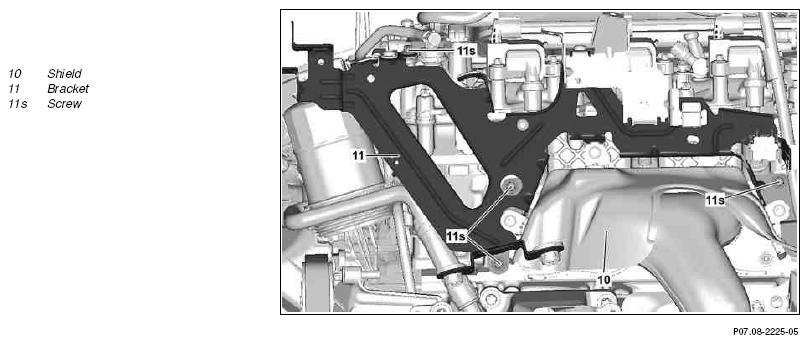

Fig 2: Identifying Left Exhaust Manifold With Catalytic Converter Remove/Install Components (2 Of 2)
G10247845Courtesy of MERCEDES-BENZ USA

Right exhaust manifold with CAT

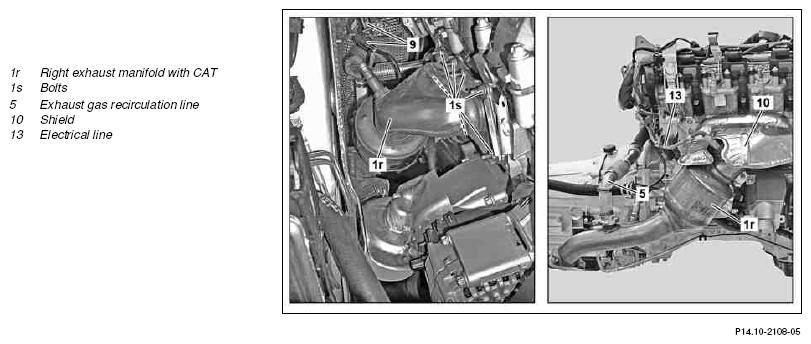

Fig 3: Identifying Right Exhaust Manifold With Catalytic Converter Remove/Install Components
G10247846Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
1 Remove bottom engine compartment paneling   AR61.20-P-1105W
2 Detach exhaust manifold with CAT (1l or 1r) from bracket on the transmission   AR49.10-P-7100W
3 Detach EGR line (5) on exhaust manifold with CAT (1l or 1r) INSTALLATION IMPORTANT Replace seal.
TORQUE SPECIFICATION Clamp on EGR line and exhaust gas recirculation valve *BA14.20-P-1002-01M
4 Remove screw/bolts for NOx storage catalytic converter clamp on exhaust manifold with CAT (1l or 1r)   AR49.10-P-7100W
  Only perform operation step 5 to 14 for removal of the left exhaust manifold with CAT (1l)
5 Remove front engine cover
6 Remove ME-SFI [ME] control unit   AR07.08-P-7008W
7 Disconnect electrical connection (6) of the engine wiring harness (2) and unclip engine wiring harness (2) at bracket (11)
8 Unclip engine wiring harness (2) and electrical line on vacuum reservoir (7)
9 Remove vacuum reservoir (7) TORQUE SPECIFICATION Screw/bolt, vacuum reservoir to bracket *BA43.05-P-1002-01K
10 Unclip electrical connections for oxygen sensors from the holders and disconnect   AR07.52-P-5303W
11 Unclip engine wiring harness (2) on shield (10)
12 Remove oxygen sensor upstream of catalytic converter (G3/3)   AR07.52-P-5303W
13 Remove shield (10) together with bracket (11) and remove upwards; to this remove screw/bolts (11s)   AR07.08-P-7008W
IMPORTANT Only 4 screw/bolts (11s) need to be removed; separation of the bracket (11) and the shield (10) is not required.
14 Detach lower steering coupling from lower steering shaft   AR46.10-P-8000V
  Perform operation step 15 to 18 to remove the right exhaust manifold with CAT (1r)
15 Remove air filter housing TORQUE SPECIFICATION Bolt, air filter to cylinder head cover *BA09.10-P-1001-01M
TORQUE SPECIFICATION Bolt, air filter to air intake pipe support brace *BA09.10-P-1002-01M
16 Unclip electrical connections for oxygen sensors from the holders and disconnect   AR07.52-P-5303W
17 Unclip electrical line (13) at mount shield (10)
18 Remove shield (10) on exhaust manifold with CAT (1r)
19 Unscrew nuts for exhaust manifold with CAT (1l or 1r)   AR14.10-P-3000-01MM
INSTALLATION IMPORTANT Observe tightening procedure for exhaust manifold.
TORQUE SPECIFICATION Nut, exhaust manifold to cylinder head *BA14.10-P-1001-01E
20 Remove exhaust manifold with CAT (1l or 1r) INSTALLATION IMPORTANT Replace seal and check stud for damage; replace if necessary.
IMPORTANT Remove left exhaust manifold with CAT (1l) downwards and remove right exhaust manifold with CAT (1r) upwards.

21 Remove oxygen sensor on the right upstream of CAT (G3/4) and oxygen sensor on the right downstream of CAT (G3/6) or oxygen sensor on the left downstream of CAT (G3/5) When replacing the exhaust manifold with CAT (1l or 1r)
AR07.52-P-5303W
22 Install in the reverse order
INSPECT Check
23 Check installation position and unobstructed movement of all components of the exhaust system
DANGER Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
24 Perform an engine test run and check exhaust system for leaktightness
AIR FILTER

Number Designation Engine 276.8 Engine 276.9
BA09.10-P-1001-01M Bolt, air filter to cylinder head cover Nm - 9
AIR FILTER

Number Designation Engine 276.8 Engine 276.9
BA09.10-P-1002-01M Bolt, air filter to air intake pipe support brace Nm - 9
EXHAUST MANIFOLD

Number Designation Engine 276.8 Engine 276.9
BA14.10-P-1001-01E Nut, exhaust manifold to cylinder head Nm 20 16
EXHAUST GAS RECIRCULATION

Number Designation Engine 276.8 Engine 276.9
BA14.20-P-1002-01M Clamp on EGR line and exhaust gas recirculation valve Nm 9 9
VACUUM PUMP

Number Designation Model 166, 172, 204, 205, 207, 212, 218, 221, 222, 231, 251, 292 with engine 276
BA43.05-P-1002-01K Screw/bolt, vacuum reservoir to bracket Nm 9
