Remove/install radial sealing ring of rear axle shaft at rear axle housing - AR35.31-P-0541V

Rear axle differential dia. 187 in MODEL 171.442/445/454, 172.447/448

Rear axle differential dia. 198 in MODEL 171.456 up to 31.5.05

Rear axle differential dia. 200 in model 171.456 as of 1.6.05, 171.458, 172.403/457

Rear axle differential dia. 200 in MODEL 172.475 except CODE (471) Manual locking differential

Rear axle differential dia. 215 in MODEL 171.473

Rear axle differential dia. 215 in MODEL 172.475 with CODE (471) Manual locking differential

Shown on model 171.442

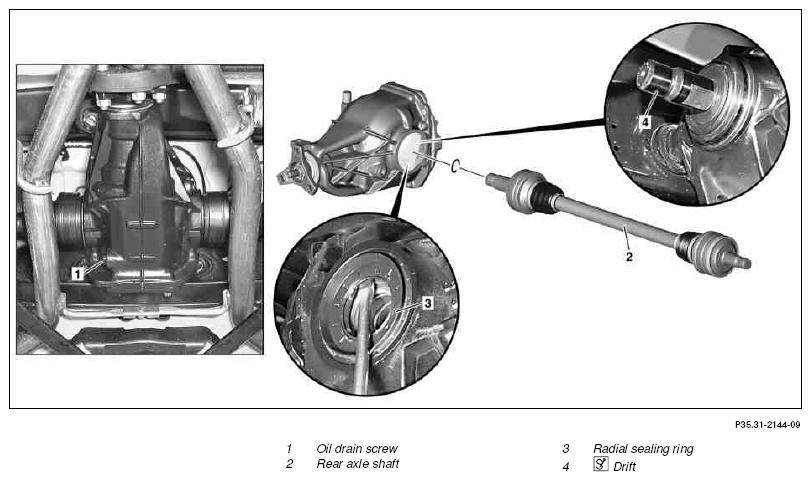

Fig 1: Identifying Rear Axle Shaft Radial Sealing Ring Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Removing
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
		While working on the rear axle care must be taken to ensure that the surfaces of aluminum components do not get any scratches, cracks and notches. Otherwise the service life of the parts is reduced.
1	Raise vehicle		AR00.60-P-1000V
2	Drain oil from rear axle differential		AR35.31-P-0520-06V
		Model 171	*BA35.31-P-1003-02C
		Model 172	*BA35.31-P-1003-02H
		Omnifit 100H cleaning compound	*BR00.45-Z-1061-01A
		Loctite 7063 cleaning spray	*BR00.45-Z-1046-04A
3	Remove left or right rear axle shaft (2)		AR35.30-P-0620V
4	Using a suitable screwdriver, press the radial sealing ring (3) out of the rear axle center assembly	Do not damage the seat surface of the radial sealing ring (3) in the rear axle differential. The leaktightness and perfect seating of the radial sealing ring (3) can otherwise not be guaranteed.
5.1	Replace rear axle differential breather	Model 171 Clean the housing surface around the breather before removal and make sure that no dirt enters the housing opening of the breather. Otherwise damage may occur inside the rear axle differential. Rear axle center assembly Ø 198 mm: Unscrew breather from rear axle center assembly.
		Rear axle differential dia. 198 mm Rear axle differential Ø 187 mm, 200 mm, 215 mm: the differential must be removed to be replaced: ↓	*BA35.31-P-1005-02C
		Remove/install differential	AR35.31-P-0520V
5.2	Check rear axle differential breather for signs of leakage, replace if necessary	Model 172 Clean the breather before removal and make sure that no dirt enters the breather. Otherwise damage may occur inside the rear axle differential.
	Install
6	Press radial sealing ring (3) using drift (4) into rear axle center assembly.	Before inserting the new radial sealing ring (3), check the seat surface for damage. Otherwise the leaktightness and perfect seating of the radial sealing ring (3) cannot be guaranteed. Coat sealing lip of new radial seal (3) with universal hypoid gear oil.
		Rear axle differential Ø 187 mm, Ø 198 mm, Ø 200 mm except for model 172.475	Fig 3
		Rear axle differential Ø 200 mm for model 172.475	Fig 4
		Differential Ø 215 mm	Fig 2
	Universal hypoid gear oils (SAE 85 W-90)	Sheet 235.7	Universal hypoid gear oils (specification 235.7). MB 235.7/235.74 FE hypoid gear oil A 001 989 33 03/Mobilube FE/FE Plus 75W-85
7	Install rear axle shaft (2).		AR35.30-P-0620V
8	Check oil level in rear axle center assembly, correct if necessary		AR35.31-P-0520-03V
		Model 171	*BA35.31-P-1002-02C
		Model 172	*BA35.31-P-1002-02H
		Model 171	*BF35.31-P-1001-01O
		Model 172	*BF35.31-P-1001-01T
		Loctite 7063 cleaning spray	*BR00.45-Z-1046-04A
		Omnifit 100H cleaning compound	*BR00.45-Z-1061-01A
9	Check rear axle differential for leaks	Carry out visual inspection.
