Remove/install differential - AR35.31-P-0520V

Rear axle differential dia. 187 in MODEL 171.442/445/454, 172.447/448

Rear axle differential dia. 198 in MODEL 171.456 up to 31.5.05

Rear axle differential dia. 200 in model 171.456 as of 1.6.05, 171.458, 172.403/457

Rear axle differential dia. 200 in MODEL 172.475 except CODE (471) Manual locking differential

Rear axle differential dia. 215 in MODEL 171.473

Rear axle differential dia. 215 in MODEL 172.475 with CODE (471) Manual locking differential

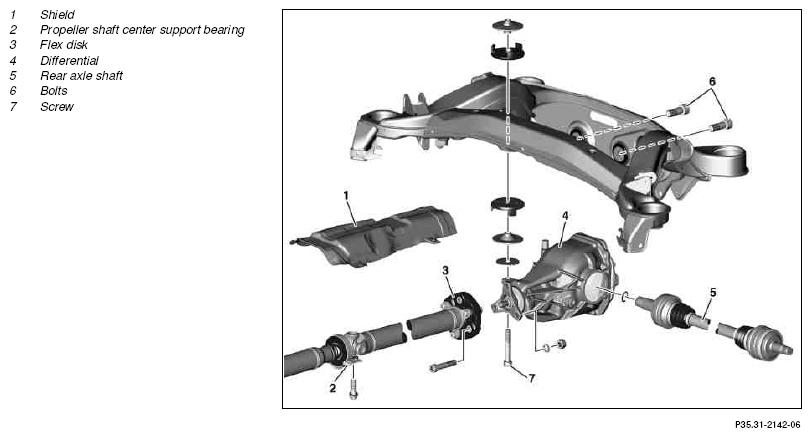

Fig 1: Identifying Differential Remove/Install Components

Courtesy of MERCEDES-BENZ USA

Illustrated on model 172

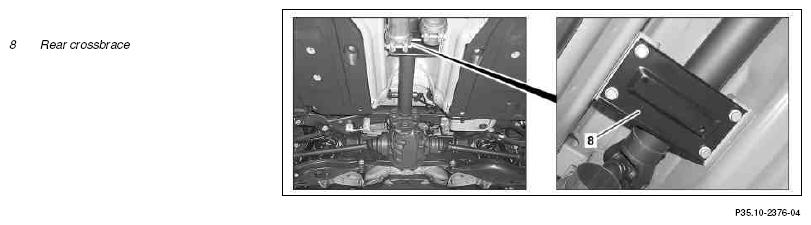

Fig 2: Identifying Rear Crossbrace - Illustrated On Model 172

Courtesy of MERCEDES-BENZ USA

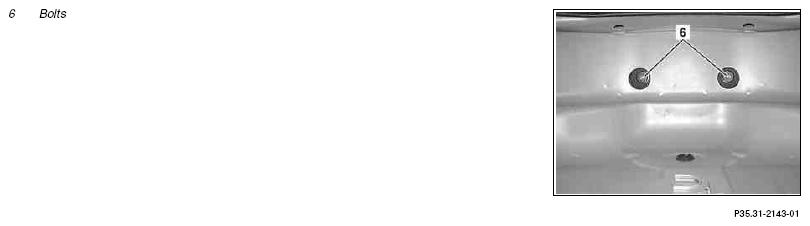

Fig 3: Identifying Bolts

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
		While working on the rear axle care must be taken to ensure that the surfaces of aluminum components do not get any scratches, cracks and notches. Otherwise the service life of the of the parts will be reduced.
1	Secure vehicle on vehicle lift		AR00.60-P-0100T
2	Undo threaded connections securing propeller shaft intermediate bearing (2) to frame floor assembly		AR41.10-P-0050V
3	Remove rear stiffening bridge (8)		*BA61.10-P-1008-01A
4	Detach propeller shaft from differential (4)	The flex disk (3) remains on the propeller shaft.	AR41.10-P-0050V
5	Undo fitting sleeves of flexible coupling (3) on joint flange		AR41.10-P-0050-09V
	Drift for loosening fitting sleeves in flex disks.		WF58.50-P-4110-01A
6	Remove left rear axle shaft (5)		AR35.30-P-0620V
7	Detach heat sink from rear axle differential (4)	Model 172.475
			*BA35.31-P-1004-02H
8	Prop up rear axle differential (4) using transmission jack and assembly attachment and secure in place using suitable straps	Assembly attachment Transmission jack	Figure
9	Remove bolt (7) of front mounting of rear axle differential (4)	Tighten bolt (7), while doing so counterhold self-locking nut or plate with integrated locknut: ↓
		Mount front differential mount suspension	AR35.10-P-0050-01V
		Model 171	*BA35.10-P-1003-01A
		Model 172	*BA35.10-P-1009-01N
10	Open trunk and remove covering for spare wheel well
11	Remove bolts (6) of the rear mounting of the rear axle center assembly (4)	On model 171.473, 172, only the right bolt (6) can be removed through the spare wheel well. The left bolt (6) is accessible from below.
		Model 171	*BA35.10-P-1004-01A
		Model 172	*BA35.10-P-1006-01N
12	Lower and remove rear axle center assembly (4)	In doing so pull rear axle center assembly (4) to left of the right-hand rear axle shaft (5). Ensure that no rear axle oil runs out when removing: ↓
		Pull out, press in rear axle shaft (5) at rear axle center assembly (4)	AR35.30-P-0620-02V
13.1	Install new breather of rear axle center assembly (4).	Model 171 Remove dirt from housing surface around the breather before removal using suitable cleaning agent and make sure that dirt does not penetrate into the breather housing opening. Damage can otherwise occur inside the rear axle differential (4). Rear axle differential (4) Ø 198 mm: Unscrew breather from rear axle differential (4).
		Rear axle differential (4) Ø 198 mm Rear axle differential (4) Ø 187 mm, 200 mm, 215 mm: Knock breather using suitable tool (e.g. drift, screwdriver) uniformly out of rear axle differential (4). Ensure breather is correctly seated in rear axle differential (4).	*BA35.31-P-1005-02C
13.2	Check rear axle differential (4) breather for signs of leakage, replace if necessary	Model 172 Remove dirt from breather before removal using suitable cleaning agent and make sure that dirt does not enter the breather. Damage can otherwise occur inside the rear axle differential (4).
14	Install in the reverse order
15	Check oil level in rear axle differential (4) and correct if necessary		AR35.31-P-0520-03V
		Model 171	*BA35.31-P-1002-02C
		Model 172	*BA35.31-P-1002-02H
		Model 171	*BF35.31-P-1001-01O
		Model 172	*BF35.31-P-1001-01T
		Loctite 7063 cleaning spray	*BR00.45-Z-1046-04A
		Omnifit 100H cleaning compound	*BR00.45-Z-1061-01A

Fig 4: Identifying Assembly Attachment (140 589 01 62 00)

Courtesy of MERCEDES-BENZ USA
