Remove/install front axle - AR33.10-P-0100LF

MODEL 217

MODEL 222

Shown on MODEL 222 with CODE 487 (Active Body Control (ABC)), without CODE M005 (4MATIC)

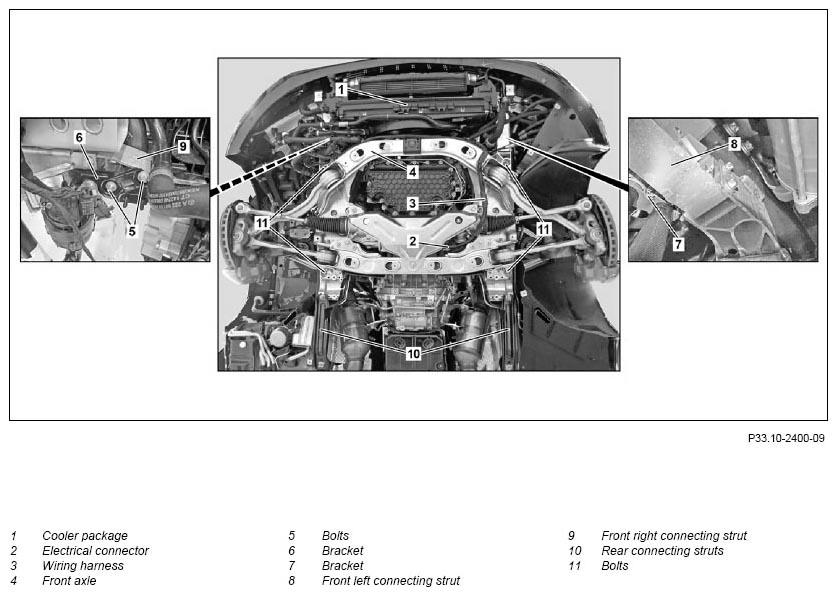

Fig 1: Front Axle Remove/Install Components - Shown On Model 222 With Code 487 (1 Of 2)
G11132387Courtesy of MERCEDES-BENZ USA

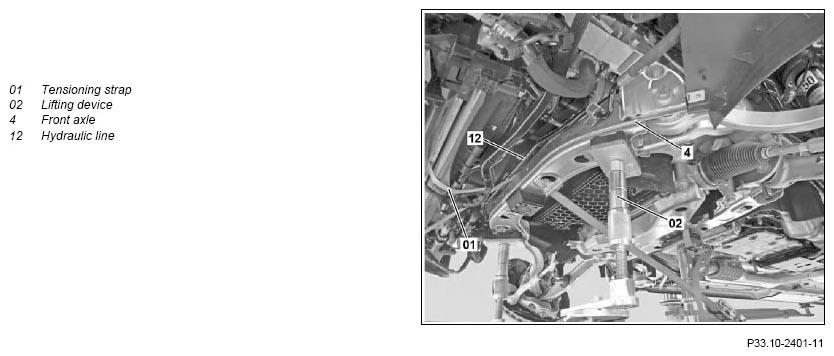

Fig 2: Front Axle Remove/Install Components - Shown On Model 222 With Code 487 (2 Of 2)
G11132388Courtesy of MERCEDES-BENZ USA

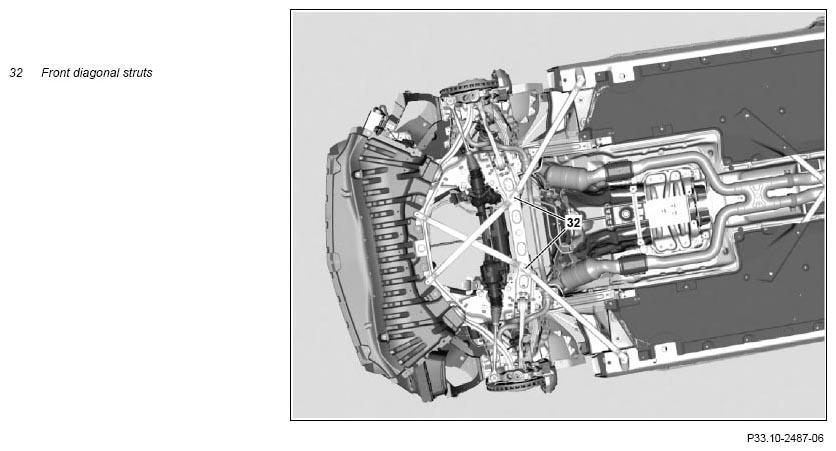

Fig 3: Front Axle Remove/Install Components
G11132389DANGERNOTESNOTESNOTESIMPORTANTIMPORTANTIMPORTANTREMOVINGINSTALLINGSPECIAL TOOLREFER TO SELF-DIAGNOSTIC SYSTEMSREFER TO SELF-DIAGNOSTIC SYSTEMSIMPORTANTNOTESSPECIAL TOOLTORQUE SPECIFICATIONREFER TO MAINTENANCETORQUE SPECIFICATIONIMPORTANTTORQUE SPECIFICATIONTORQUE SPECIFICATIONTORQUE SPECIFICATIONTORQUE SPECIFICATIONTORQUE SPECIFICATIONTORQUE SPECIFICATIONREFER TO SPECIAL TOOLSTORQUE SPECIFICATIONTORQUE SPECIFICATIONTORQUE SPECIFICATIONTORQUE SPECIFICATIONNOTESREFER TO SELF-DIAGNOSTIC SYSTEMSINSPECTCourtesy of MERCEDES-BENZ USA
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
NOTES Notes on bolted connections with self tapping screws   AH00.00-P-0007-01SF
NOTES Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
NOTES Notes on self-locking nuts and bolts   AH00.00-N-0001-01A
IMPORTANT Notes on Active Body Control suspension   AH32.50-P-0001-01LF
IMPORTANT Notes on AIRmatic   AH32.22-P-1000-02LF
IMPORTANT Notes on repair work on suspension components   AH00.00-P-0100-01A
REMOVINGINSTALLING Remove/install
1 Secure vehicle on vehicle lift SPECIAL TOOL Vehicle hoist securing tool Fig 4
2.1 Release pressure in ABC system using diagnostic system Model 217
with code 487 (Active Body Control (ABC))
Model 222
with code 487 (Active Body Control (ABC))		 AR32.50-P-0001-01LF
REFER TO SELF-DIAGNOSTIC SYSTEMS     AD00.00-P-2000-04B
2.2 Vent pressure in AIRmatic system using diagnostic system Model 217
except code 487 (Active Body Control (ABC))
Model 222
except code 487 (Active Body Control (ABC))
REFER TO SELF-DIAGNOSTIC SYSTEMS     AD00.00-P-2000-04B
3 Deactivate easy entry/exit function for driver's seat and steering wheel IMPORTANT Switch off using the buttons on the steering wheel in the Comfort menu of the multifunction display, see Owner's Manual.
4 Turn steering wheel to central position (front wheels in straight ahead position) and secure with the retaining device NOTES The steering wheel must not be turned when detaching steering coupling.
Otherwise the clock spring contact will be destroyed.
SPECIAL TOOL Retainer device		 Fig 5
5 Mount engine hoist Model 217 with engine 157, 278
Model 222 with engine 157, 276, 277, 278, 279, 642, 651
Model 222 with engine 642		 AR33.10-P-0105LFD
    Model 217 with engine 157, 278
Model 222 with engine 157, 276.8/9, 277, 278, 279		 AR33.10-P-0105LF
6 Remove lower engine compartment paneling   AR61.20-P-1105LF
7 Remove front diagonal struts (32) Model 217.4
TORQUE SPECIFICATION Screw/bolt, front diagonal strut to front axle carrier/body		 *BA61.10-P-1018-01K
8 Secure radiator package (1) with tensioning strap (01) to prevent it from falling down
9 Remove front complete wheels
REFER TO MAINTENANCE     AP40.10-P-4050HA
10 Remove front axle shafts MODEL 217 with CODE M005 4MATIC, MODEL 222 with CODE M005 4MATIC
Model 217 with transmission 722.96/97
Model 222 with transmission 722.96/97 except code Z07 (Top protection)		 AR33.30-P-0620LFX
11 Disconnect electrical connector from right front brake wear sensor at right brake caliper
12 Detach electrical line from right front brake wear sensor at right brake caliper TORQUE SPECIFICATION Model 217.364/382/384/385/482
Model 217.377/378/379/477/479 except code B07 (Ceramic brake system)
Model 222.004/032/033/057/104/123/132/133/157 except code 950 (AMG Sports package) except code 951 (Sports package USA)
Model 222.004/032/033/057/104/123/132/133/157 with code 950 (AMG Sports package)
Model 222.004/032/033/057/104/123/132/133/157 with code 951 (Sports package USA)
Model 222.067/082/085/163/165/167/967
Model 222.077
Model 222.162
Model 222.176/182/184/185/976/982/984/985
except code Z07 (Top protection)
Model 222.176/182/976 with code Z07 (Top protection)
Model 222.177/178/179 except code B07 (Ceramic brake system)
Model 222.177/178/179 with code B07 (Ceramic brake system) Bolt, brake wear sensor to brake caliper		 *BA42.10-P-1004-10V
13 Detach rpm sensors from steering knuckles and place to one side   AR42.30-P-0712LF
14.1 Detach cable ducts at steering knuckles and place to one side Model 217
except code M005 (4MATIC)
Model 222
except code M005 (4MATIC)
14.2 Disconnect corresponding electrical connector from suspension struts Model 217
with code M005 (4MATIC)
Model 222 with
code M005 (4MATIC)
15 Detach brake calipers with brake hoses still connected and fix in place at transverse control arm using cable ties   AR42.10-P-0070LF
16 Detach cable ducts from spring control arms and place to one side with lines still clipped in Model 217
with code M005 (4MATIC)
Model 222
with code M005 (4MATIC)
17 Unhook electrical lines at front axle carrier Model 217
with code M005 (4MATIC)
Model 222
with code M005 (4MATIC)
18 Detach suspension struts from spring control arms Model 217 with code 487 (Active Body Control (ABC))
Model 222 with code 487 (Active Body Control (ABC))		 AR32.25-P-1017LFA
    Model 217 except code 487 (Active Body Control (ABC))
Model 222 except code 487 (Active Body Control (ABC))		 AR32.25-P-1017LFB
19 Detach steering coupling from rack-and-pinion steering Model 217
Model 222 as of 4/30/14		 AR46.10-P-8000LW
    Model 222 up to 4/29/14 AR46.10-P-8000RK
20 Disconnect electrical connectors (2) from electric power steering control unit
21.1 Unclip wiring harness (3) of rack-and-pinion steering from front axle (4), detach and place to one side Model 217
except code M005 (4MATIC)
Model 222
except code M005 (4MATIC)
21.2 Detach wiring harness (3) of rack-and-pinion steering from front axle (4) and place to one side Model 217
with code M005 (4MATIC)
Model 222
with code M005 (4MATIC)
22 Remove fender liner in right fender   AR88.10-P-1300LF
23 Detach fender liner in front area of left fender   AR88.10-P-1300LF
24 Unscrew bolts (5) and remove bracket (6) If installed.
IMPORTANT Place the pumps and valves to one side with the lines still connected.
TORQUE SPECIFICATION Model 217 with engine 157, 278 Model 222 with engine 157, 278Bracket securing coolant pump/switchover valve to radiator support		 *BA20.10-P-1006-01W
    TORQUE SPECIFICATION Model 222 with engine 276 Bracket securing coolant pump/switchover valve to radiator support *BA20.10-P-1011-01AA
    TORQUE SPECIFICATION Model 222 with engine 642 Bracket securing coolant pump/switchover valve to radiator support *BA20.10-P-1005-01S
25 Detach bracket with front axle valve unit and place to one side with lines still connected Model 217
with code 487 (Active Body Control (ABC))
Model 222
with code 487 (Active Body Control (ABC))		 AR32.50-P-0001LF
26 Unhook bracket (7) with lines from front left connecting strut (8) and place to one side
27 Detach compressor and place to one side with lines still connected Model 217
except code 487 (Active Body Control (ABC))
Model 222
except code 487 (Active Body Control (ABC))		 AR32.22-P-2001LF
28 Remove front left and right connecting strut (8, 9) TORQUE SPECIFICATION Bolt/nut, front mounting console to front axle carrier *BA33.10-P-1003-01P
29 Remove bracket for fire extinguisher nozzle at left and right Model 222
with code Z07 (Top protection)
with code Z21 (Fire extinguishing system)
30 Detach all brackets for hydraulic line (12) from front of front axle (4) and from right longitudinal member Model 217
with code 487 (Active Body Control (ABC))
Model 222
with code 487 (Active Body Control (ABC))
31.1 Unscrew bolts securing engine mounts to front axle (4) Model 217
except code M005 (4MATIC)
Model 222
except code M005 (4MATIC)
    Model 222 with engine 276.9
except code M005 (4MATIC)		 AR22.10-P-1260LFH
    Model 222 with engine 642
except code M005 (4MATIC)		 AR22.10-P-1260LFD
    Model 217, 222 with engine 157, 278
except code M005 (4MATIC)		 AR22.10-P-1260LF
31.2 Detach right-hand engine mount at front axle carrier and detach left-hand engine mount at engine support Model 217 with engine 157, 276, 278 with code M005 (4MATIC)
Model 222 with engine 157, 276, 278, 642 with code M005 (4MATIC)
TORQUE SPECIFICATION Bolt, front engine mount to front axle carrier		 *BA22.10-P-1002-03K
    TORQUE SPECIFICATION Bolt, front engine mount to engine support *BA22.10-P-1001-03K
32 Only lift up engine until engine mounts are relieved of load
33 Remove upper transverse control arm to steering knuckles   AR33.20-P-0500LF
34 Position lifting device (02) onto front axle (4)
REFER TO SPECIAL TOOLS 000 588 03 62 00 Lifting platform   WS01.00-P-0091A
35 Remove rear connecting struts (10) TORQUE SPECIFICATION Bolt, rear mounting console to longitudinal member *BA33.10-P-1005-01P
    TORQUE SPECIFICATION Bolt, rear mounting console to front axle carrier *BA33.10-P-1004-01P
36 Remove bolts (11) of front axle (4) TORQUE SPECIFICATION Screw/bolt, front axle carrier at front to longitudinal member *BA33.10-P-1001-01P
    TORQUE SPECIFICATION Screw/bolt, front axle carrier at rear to longitudinal member *BA33.10-P-1002-01P
37 Carefully lower front axle (4); slide lifting device (02) toward the rear when doing so NOTES Ensure that the hydraulic line (12) does not get hung up on the front axle (4) when lowering. Otherwise, the hydraulic line (12) will be damaged.
38 Install in the reverse order
39 Fill and bleed ABC system Model 217
with code 487 (Active Body Control (ABC))		 AR32.50-P-0021SX
REFER TO SELF-DIAGNOSTIC SYSTEMS   Model 222
with code 487 (Active Body Control (ABC))		 AD00.00-P-2000-04B
40 Fill AIRmatic system Model 217
except code 487 (Active Body Control (ABC))
Model 222
except code 487 (Active Body Control (ABC))
INSPECT Check
41 Perform wheel alignment check   AR40.20-P-0200LF
COOLANT PUMP, COOLANT THERMOSTAT

Number Designation Engine 642
BA20.10-P-1005-01S Bracket securing coolant pump/switchover valve to radiator support Nm 20
COOLANT PUMP, COOLANT THERMOSTAT

Number Designation Engine 157 Engine 278
BA20.10-P-1006-01W Bracket securing coolant pump/switchover valve to radiator support M8 Nm 20 20
COOLANT PUMP, COOLANT THERMOSTAT

Number Designation Engine 276
BA20.10-P-1011-01AA Bracket securing coolant pump/switchover valve to radiator support M8 Nm 20
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number Designation Model 217 with engine 157, 278, 279 Model 217 with engine 276
BA22.10-P-1001-03K Bolt, front engine mount to engine support M10 Stage 1 Nm 45 50
Stage 2 ∠° 120 -
M12 Stage 1 Nm 45 45
Stage 2 ∠° 120 120
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number Designation Model 222 with engine 276, 642, 651 MODEL 222 with ENGINE 157, 279T MODEL 222 with ENGINE 277, 278 except CODE Z07
BA22.10-P-1001-03K Bolt, front engine mount to engine support M10 Stage 1 Nm 50 45
Stage 2 ∠° - 120
M12 Stage 1 Nm - 45
Stage 2 ∠° - 120
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number Designation Model 217 with engine 157, 278, 279 Model 217 with engine 276
BA22.10-P-1002-03K Bolt, front engine mount to front axle carrier Nm 30 30
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number Designation Model 222 with engine 276, 642, 651 MODEL 222 with ENGINE 157, 279T MODEL 222 with ENGINE 277, 278 except CODE Z07
BA22.10-P-1002-03K Bolt, front engine mount to front axle carrier Nm 30 30
FRONT AXLE CARRIER

Number Designation Model 217 MODEL 222 except CODE Z07
BA33.10-P-1001-01P Screw/bolt, front axle carrier at front to longitudinal member Stage 1   Nm 140 140
Stage 2 Loosen ∠° - -
Stage 3   Nm - -
Stage 4   ∠° - -
FRONT AXLE CARRIER

Number Designation MODEL 222 with CODE Z07
BA33.10-P-1001-01P Screw/bolt, front axle carrier at front to longitudinal member Stage 1   Nm 100
Stage 2 Loosen ∠° -180
Stage 3   Nm 140
Stage 4   ∠° 45
FRONT AXLE CARRIER

Number Designation Model 217 MODEL 222 except CODE Z07
BA33.10-P-1002-01P Screw/bolt, front axle carrier at rear to longitudinal member Stage 1   Nm 70 70
Stage 2 Loosen ∠° - -
Stage 3   Nm - -
FRONT AXLE CARRIER

Number Designation MODEL 222 with CODE 207
BA33.10-P-1002-01P Screw/bolt, front axle carrier at rear to longitudinal member Stage 1   Nm 100
Stage 2 Loosen ∠° -180
Stage 3   Nm 140
FRONT AXLE CARRIER

Number Designation Model 217 MODEL 222 except CODE Z07
BA33.10-P-1003-01P Bolt/nut, front mounting console to front axle carrier Nm 20 20
FRONT AXLE CARRIER

Number Designation MODEL 222 with CODE Z07
BA33.10-P-1003-01P Bolt/nut, front mounting console to front axle carrier Nm 20
FRONT AXLE CARRIER

Number Designation Model 217 MODEL 222 except CODE Z07
BA33.10-P-1004-01P Bolt, rear mounting console to front axle carrier Nm 100 100
FRONT AXLE CARRIER

Number Designation MODEL 222 with CODE Z07
BA33.10-P-1004-01P Bolt, rear mounting console to front axle carrier Nm 100
FRONT AXLE CARRIER

Number Designation Model 217 MODEL 222 except CODE Z07
BA33.10-P-1005-01P Bolt, rear mounting console to longitudinal member Nm 50 50
FRONT AXLE CARRIER

Number Designation MODEL 222 with CODE Z07
BA33.10-P-1005-01P Bolt, rear mounting console to longitudinal member Nm 50
FRONT AXLE BRAKE CALIPER

Number Designation MODEL 217.377/378/379/477/479 except CODE B07 Model 217.364/382/384/385/482
BA42.10-P-1004-10V Bolt, brake wear sensor to brake caliper Nm 8 8
FRONT AXLE BRAKE CALIPER

Number Designation MODEL 222.067/082/085/163/165/167/967, MODEL 222.004/032/033/057/104/123/132/133/157 with CODE 950/951, MODEL 222.176/182/184/185/976/982/984/985 except CODE Z07 MODEL 222.004/032/033/057/104/123/132/133/15 7 except CODE 950/951, MODEL 222.162
BA42.10-P-1004-10V Bolt, brake wear sensor to brake caliper Nm 8 8
FRONT AXLE BRAKE CALIPER

Number Designation MODEL 222.077, MODEL 222.177/178/179 except CODE B07 MODEL 222.176/182/184/185/976/982/984/985 with CODE Z07, MODEL 222.177/178/179 with CODE B07
BA42.10-P-1004-10V Bolt, brake wear sensor to brake caliper Nm 8 8
FRAME FLOOR ASSEMBLY

Number Designation Model 217
BA61.10-P-1018-01K Screw/bolt, front diagonal strut to front axle carrier/body Nm 50
Fig 4: Identifying Vehicle Hoist Securing Tool (171 589 01 31 00)
G11132390Courtesy of MERCEDES-BENZ USA
Fig 5: Identifying Retainer Device (129 589 01 21 00)
G11132391Courtesy of MERCEDES-BENZ USA
scientia non olet · About LEMON Manuals
