Remove/install front engine mount and/or engine support - AR22.10-P-1260LF

ENGINE 157, 278 in MODEL 217, 222

Shown on MODEL 222.082

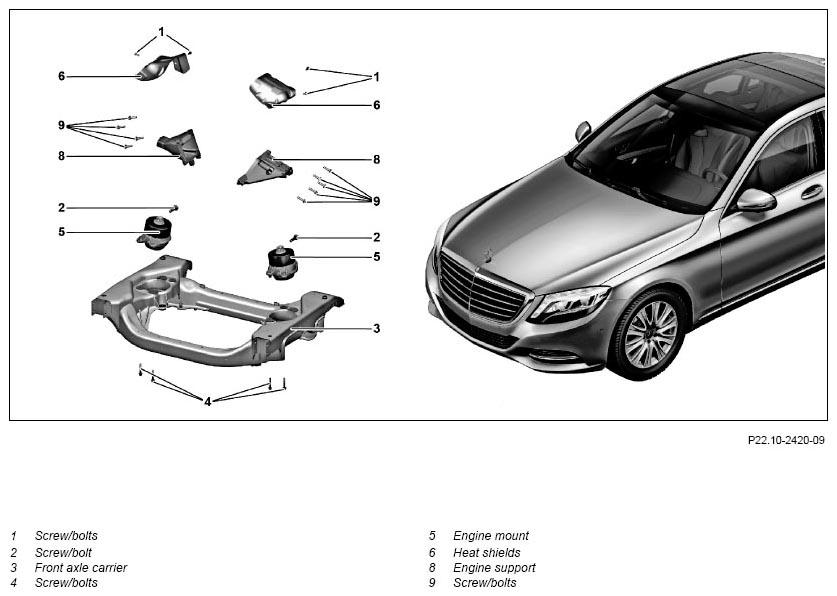

Fig 1: Front Engine Mount And Engine Support Remove/Install Components - Shown On Model 222.082

Courtesy of MERCEDES-BENZ USA

	Notes on bolted connections with self tapping screws		AH00.00-P-0007-01SF
	Remove/install
1	Attach engine hoist		AR33.10-P-0105LF
2	Only raise engine sufficiently until the engine mounts (5) are not under tension
3	Remove lower engine compartment paneling		AR61.20-P-1105LF
4	Secure radiator package against falling down	ENGINE 157, 278 in MODEL 217, 222 with CODE M005 (4MATIC)
5	Remove left and right catalytic converter		AR49.10-P-7100LF
6	Remove front axle shafts on left and right	MODEL 217 with ENGINE 278 with TRANSMISSION 722.96 MODEL 222 with ENGINE 278 with TRANSMISSION 722.96 without CODE Z07 (Top protection)	AR33.30-P-0620LFX
7.1	Remove screw/bolts (4) for engine mount (5) on front axle carrier (3)	ENGINE 157, 278 in MODEL 217, 222 without CODE M005 (4MATIC) Bolt, front engine mount to front axle carrier	*BA22.10-P-1002-03K
7.2	Remove screw/bolts (4) for engine mount (5) at front axle carrier (3)	ENGINE 157, 278 in MODEL 217, 222 with CODE M005 (4MATIC) Bolt, front engine mount to front axle carrier	*BA22.10-P-1002-03K
8	Remove steering coupling	MODEL 217 with ENGINE 157, 278 MODEL 222 as of 4/30/14 with ENGINE 157, 278	AR46.10-P-8000LW
		MODEL 222 up to 4/29/14 with ENGINE 157, 278	AR46.10-P-8000RK
9.1	Remove screw/bolts (1) and take out heat shield (6) to the rear	ENGINE 157, 278 in MODEL 217 without CODE M005 (4MATIC) ENGINE 157, 278 in MODEL 222 without CODE M005 (4MATIC) Screw/bolt, heat shield to engine support	*BA22.10-P-1003-02A
9.2	Remove screw/bolts (1) on heat shield (6)	ENGINE 157, 278 in MODEL 217, 222 with CODE M005 (4MATIC) Do not remove heat shield (6). Screw/bolt, heat shield to engine support	*BA22.10-P-1003-02A
10	Remove screw/bolt (2) from left engine mount (5)	The left engine mount (5) remains on the front axle carrier (3).
11	Raise engine further	Ensure that during lifting that no cables and lines lie on the partition wall. Damage can occur to cables and lines otherwise.	AR33.10-P-0105LF
12.1	Remove screw/bolts (2) and remove left and right engine mount (5) to the rear	ENGINE 157, 278 in MODEL 217, 222 without CODE M005 (4MATIC) Always replace engine mount (5) in pairs. Pay attention to environmental protection regulations for disposal of engine mounts (5). Dispose of engine mounts (5) into mixed scrap. Ensure that the correct installation position is obtained when assembling the engine mount (5). Bolt, front engine mount to engine support	*BA22.10-P-1001-03K
12.2	Remove screw/bolt (2) on right engine mount (5)	ENGINE 157, 278 in MODEL 217, 222 with CODE M005 (4MATIC) Do not take out engine mount (5) yet. Bolt, front engine mount to engine support	*BA22.10-P-1001-03K
13	Remove front axle carrier (3)	MODEL 217, 222 with ENGINE 157, 278 with CODE M005 (4MATIC)	AR33.10-P-0100LF
14	Remove right engine mount (5) to the front	ENGINE 157, 278 in MODEL 217, 222 with CODE M005 (4MATIC) Ensure that the correct installation position is obtained when assembling the engine mount (5). Always replace engine mount (5) in pairs. Pay attention to environmental protection regulations for disposal of engine mounts (5). Dispose of engine mounts (5) into mixed scrap.
15	Remove screw/bolts (4) and remove engine mount (5) from front axle carrier (3)	ENGINE 157, 278 in MODEL 217, 222 with CODE M005 (4MATIC) Always replace engine mount (5) in pairs. Pay attention to environmental protection regulations for disposal of engine mounts (5). Dispose of engine mounts (5) into mixed scrap. Bolt, front engine mount to front axle carrier	*BA22.10-P-1002-03K
16	Remove starter screen screw/bolt on right engine support (8)	Screw/bolt, heat shield to engine support	*BA22.10-P-1003-02A
17.1	Remove screw/bolts (9) for the engine support (8) on crankcase and remove engine support (8) to the rear	ENGINE 157, 278 in MODEL 217, 222 without CODE M005 (4MATIC) Screw/bolt, engine support to crankcase	*BA22.10-P-1001-02A
		Set of flexible head wrenches	Fig 2
17.2	Remove screw/bolts (9) for left and right engine support (8) at crankcase and remove engine support (8) to the front	ENGINE 157, 278 in MODEL 217, 222 with CODE M005 (4MATIC) Screw/bolt, engine support to crankcase	*BA22.10-P-1001-02A
		Set of flexible head wrenches	Fig 2
18	Install in the reverse order
19	Perform wheel alignment check	MODEL 217, 222 with ENGINE 157, 278 with CODE M005 (4MATIC)	AR40.20-P-0200LF

ENGINE SUPPORT (ENGINE SIDE)

Number	Designation			ENGINE 157	ENGINE 278
BA22.10-P-1001-02A	Screw/bolt, engine support to crankcase	Stage 1	Nm	20	20
		Stage 2	∠°	90	90

ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number	Designation				MODEL 217 with ENGINE 157, 278, 279	MODEL 222 with ENGINE 157, 279T MODEL 222 with ENGINE 277, 278 except CODE Z07
BA22.10-P-1001-03K	Bolt, front engine mount to engine support	M10	Stage 1	Nm	45	45
			Stage 2	∠°	120	120
		M12	Stage 1	Nm	45	45
			Stage 2	∠°	120	120

ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number	Designation				MODEL 222 with ENGINE 277, 278 with CODE Z07
BA22.10-P-1001-03K	Bolt, front engine mount to engine support	M10	Stage 1	Nm	45
			Stage 2	∠°	120
		M12	Stage 1	Nm	45
			Stage 2	∠°	125

ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number	Designation		MODEL 217 with ENGINE 157, 278, 279	MODEL 222 with ENGINE 157, 279T MODEL 222 with ENGINE 277, 278 except CODE Z07
BA22.10-P-1002-03K	Bolt, front engine mount to front axle carrier	Nm	30	30

ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number	Designation		MODEL 222 with ENGINE 277, 278 with CODE Z07
BA22.10-P-1002-03K	Bolt, front engine mount to front axle carrier	Nm	30

ENGINE SUPPORT (ENGINE SIDE)

Number	Designation		ENGINE 157	ENGINE 278
BA22.10-P-1003-02A	Screw/bolt, heat shield to engine support	Nm	9	13

Fig 2: Identifying Set Of Flexible Head Wrenches (001 589 81 09 00)

Courtesy of MERCEDES-BENZ USA
