Replace pilot bushing - AR41.10-P-0250LF

MODEL 217

MODEL 222

MODIFICATION NOTES

06.06.2014 Pressing in "a" from the front guide bushing to the joint flange   BE41.10-P-1001-04B

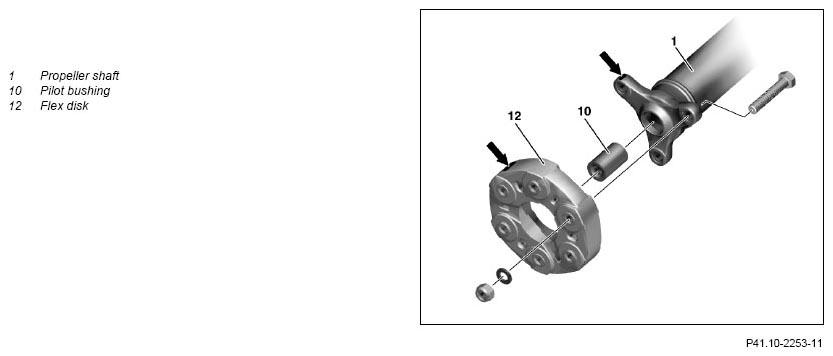

Fig 1: Propeller Shaft, Pilot Bushing And Flex Disk
G11132518Courtesy of MERCEDES-BENZ USA
REMOVING Remove
1 Remove propeller shaft (1)   AR41.10-P-0050LF
INSPECT Check
2 Check sealing lips on front or rear pilot bushing (10)
3 Separate propeller shaft (1) at appropriate sliding connection
4 Mark position of flexible coupling (12) relative to propeller shaft (1) using color markings (arrows)
5 Remove flexible coupling (12)   AR41.10-P-0040-01LF
REFER TO SHOP-MADE TOOLS Drift for releasing the fitting sleeves in the flexible couplings   WF58.50-P-4110-01A
6 Remove pilot bushing (10)   AR41.10-P-0250-02LF
INSTALLING Install
7 Press in pilot bushing (10)   AR41.10-P-0250-03LF
    MODEL 217.377/378/477
MODEL 217.379/382/479
MODEL 217.384/385
MODEL 222.004/032/082/123/132/179/182
MODEL 222.033/057/085/133/157/184/185
MODEL 222.067/167
MODEL 222.077/177/178
MODEL 222.104
MODEL 222.162/165
MODEL 222.163
MODEL 222.176
with CODE Z07 (Top protection)
MODEL 222.176
without CODE Z07 (Top protection)		 *BE41.10-P-1001-04B
8 Pack cavity of front or rear pilot bushing (10) with grease
REFER TO CAPACITIES & SPECIFICATIONS Multipurpose grease (NLGI Class 2)   Multipurpose grease (NLGI Class 2). See https://bevo.mercedes-benz.com/index.php?language_id=1
9 Install flexible coupling (12) IMPORTANT Reproduce the original installation position using the color markings. AR41.10-P-0040-01LF
    TORQUE SPECIFICATION MODEL 222 *BA41.10-P-1002-01J
    TORQUE SPECIFICATION MODEL 222 *BA41.10-P-1001-01J
10 Assemble propeller shaft (1) on appropriate sliding connection
REFER TO CAPACITIES & SPECIFICATIONS Long-life grease (NLGI grade 2)   Long-life grease (NLGI grade 2). See https://bevo.mercedes-benz.com/index.php?language_id=1
      AR41.10-P-0050-05LF
11 Install propeller shaft (1)   AR41.10-P-0050LF
CHECK VALUES FOR PILOT BUSHING ON PROPELLER SHAFT

Number Designation MODEL 217.384/385 MODEL 217.379/382/479
BE41.10-P-1001-04B Press-in dimension "a" from face end of pilot bushing to joint flange Front propeller shaft mm 24, 8 25, 3
Rear propeller shaft mm 28, 3 28, 8
CHECK VALUES FOR PILOT BUSHING ON PROPELLER SHAFT

Number Designation MODEL 217.377/378/477 MODEL 222.067/167
BE41.10-P-1001-04B Press-in dimension "a" from face end of pilot bushing to joint flange Front propeller shaft mm 28, 8 23, 3
Rear propeller shaft mm 36, 2 36, 8
CHECK VALUES FOR PILOT BUSHING ON PROPELLER SHAFT

Number Designation MODEL 222.033/057/085/133/157/184/185 MODEL 222.004/032/082/123/132/179/182, MODEL 222.176 except CODE Z07
BE41.10-P-1001-04B Press-in dimension "a" from face end of pilot bushing to joint flange Front propeller shaft mm 24, 8 25, 3
Rear propeller shaft mm 28, 3 28, 8
CHECK VALUES FOR PILOT BUSHING ON PROPELLER SHAFT

Number Designation MODEL 222.104, MODEL 222.176 with CODE Z07 MODEL 222.077/177/178
BE41.10-P-1001-04B Press-in dimension "a" from face end of pilot bushing to joint flange Front propeller shaft mm 25, 3 28, 8
Rear propeller shaft mm 36, 2 36, 2
CHECK VALUES FOR PILOT BUSHING ON PROPELLER SHAFT

Number Designation MODEL 222.163 MODEL 222.162/165
BE41.10-P-1001-04B Press-in dimension "a" from face end of pilot bushing to joint flange Front propeller shaft mm 36, 2 36, 3
Rear propeller shaft mm 36, 2 28, 3
PROPELLER SHAFT

Number Designation MODEL 222
BA41.10-P-1001-01J Self-locking nut, flex disk to transmission or front propeller shaft M12 Nm 68
PROPELLER SHAFT

Number Designation MODEL 222
BA41.10-P-1002-01J Self-locking nut, flex disk to rear propeller shaft or differential M12 Nm 68
