Remove/install front stabilizer bar link rod - AR32.35-P-3328LF
MODEL 217
without CODE 487 (MAGIC BODY CONTROL)
MODEL 222
without CODE 487 (Active Body Control (ABC))
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Remove/install | |||

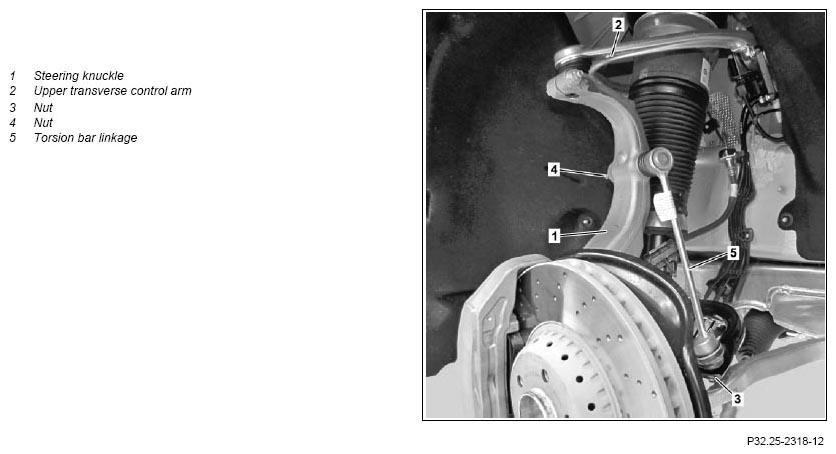

| 1 | Detach corresponding complete wheel | ||
| AP40.10-P-4050HA | |||
| 2 | Turn front axle in corresponding direction and unscrew nut (3) | without CODE 487 (MAGIC BODY CONTROL) MODEL 222 without CODE 487 (Active Body Control (ABC)) without CODE Z07 (Top protection) |
*BA32.20-P-1001-02O |
| 3 | Unscrew nut (4) | without CODE 487 (MAGIC BODY CONTROL) MODEL 222 without CODE 487 (Active Body Control (ABC)) without CODE Z07 (Top protection) |
*BA32.20-P-1002-02O |
| 4 | Detach corresponding steering knuckle (1) from upper transverse control arm (2) | without CODE 487 (MAGIC BODY CONTROL) MODEL 222 without CODE 487 (Active Body Control (ABC)) without CODE Z07 (Top protection) |
*BA33.20-P-1006-01T |
| 5 | Remove torsion bar linkage (5) | ||
| 6 | Install in the reverse order |
FRONT AXLE TORSION BAR
| Number | Designation | MODEL 217 | MODEL 222 except CODE Z07 | |
|---|---|---|---|---|
| BA32.20-P-1001-02O | Nut, torsion bar linkage to torsion bar | Nm | 80 | 80 |
FRONT AXLE TORSION BAR
| Number | Designation | MODEL 217 | MODEL 222 except CODE Z07 | |
|---|---|---|---|---|
| BA32.20-P-1002-02O | Nut, torsion bar linkage to steering knuckle | Nm | 60 | 60 |
WHEEL CONTROL, HUB
| Number | Designation | MODEL 217 | MODEL 222 except CODE Z07 | |
|---|---|---|---|---|
| BA33.20-P-1006-01T | Nut, steering knuckle to transverse control arm | Nm | 65 | 65 |
